Description

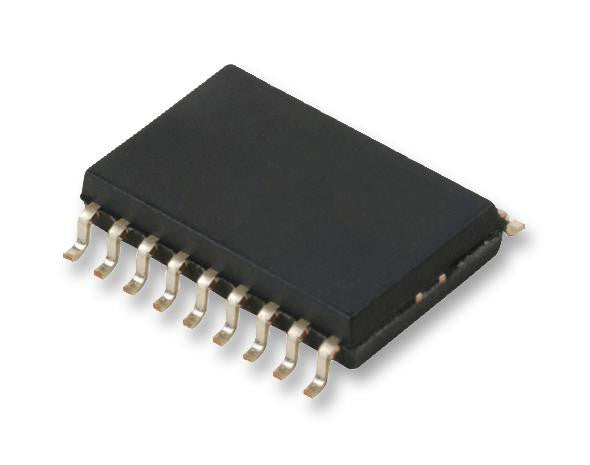

The PIC16LF628A-I/SO is a PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture with nanoWatt technology. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 224bytes of data memory size, two comparator and 16 general-purpose I/O pins. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.
- 35 (14-bit wide) easy instructions to learn
- 8 level hardware stack
- 1 (9-bit) file select register
- Hardware interrupt handling
- In-Circuit Serial Programming� (ICSP�)
- Power on reset (POR)
- Power-up timer (PWRT)
- Oscillator start-up timer (OST)
- Programmable code protection
- Power saving SLEEP mode
- In-circuit debugging via two pins
- Brown-out reset (BOR)
- 128bytes of EEPROM data memory
- Two 8-bit digital timers
- One 16-bit digital timers
- Programmable weak pull-ups on PORTB
- Multiplexed master Clear/Input-pin
- Watchdog timer (WDT)
- 1x Capture/Compare/PWM (ECCP)
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Product details
| Controller Family/Series | PIC16LF6xx |
| Embedded Interface Type | USART |
| No. of I/O's | 16I/O's |
| Program Memory Size | 3.5KB |
| No. of Pins | 18Pins |
| Product Range | PIC16 Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 20MHz |
| Supply Voltage Min | 2V |
| MCU Case Style | SOIC |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| RAM Memory Size | 224Byte |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC16LF628A-I/SO |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 530.55 |
| 3-5 | ₹ 525.14 |
| 5-10 | ₹ 514.31 |
| 10+ | ₹ 503.48 |
Bulk discount will be automatically applied during checkout based on quantity.
