Description

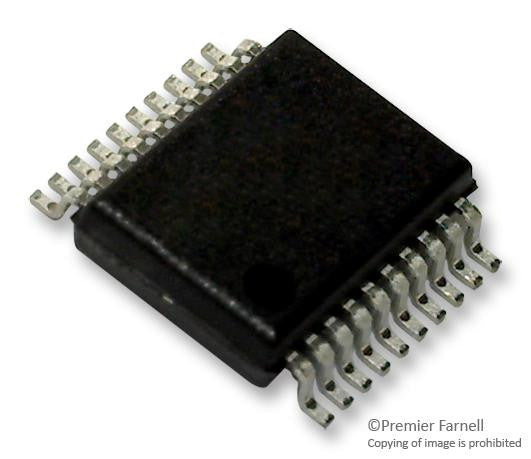

The PIC24F04KA201-I/SS is a high-performance PIC24F family eXtreme low power technology 16-bit Microcontroller packs powerful PIC®(RISC) architecture with up to 16 MIPS of performance at 3.3V with Basic code-guard security. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 4kB of addressable program memory size, 512bytes of data memory size, 18 general-purpose I/O pins and 9-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 1.8 to 3.6V.
- XLP Technology for Sleep current at low as 20nA
- Brown-out reset (BOR)
- Low voltage detection (LVD)
- Power on reset (POR)
- Watch dog timer (WDT)
- nanoWatt XLP technology
- Two comparators
- Internal voltage reference
- Charge time measurement unit (CTMU)
- Local interconnect network (LIN)
- IrDA
- Parallel port GPIO
- Three 16-bit timers
- One 32-bit timers
Applications
Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security, Multimedia, Communications & Networking, Audio
Product details
| Embedded Interface Type | I2C, SPI, UART |
| No. of I/O's | 18I/O's |
| No. of Bits | 16bit |
| Program Memory Size | 4KB |
| No. of Pins | 20Pins |
| Product Range | PIC24F Microcontrollers |
| CPU Speed | 32MHz |
| Supply Voltage Min | 1.8V |
| MCU Case Style | SSOP |
| Packaging | Each |
| Supply Voltage Max | 3.6V |
| RAM Memory Size | 512Byte |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC24F04KA201-I/SS |
| Quantity | Each |
