Description
The PIC32MX250F128B-I/SP is a 32-bit 128kB Flash Microcontroller features audio and graphics interfaces, USB and advanced analogue. The CPU fetches instructions, decodes each instruction, fetches source operands, executes each instruction and writes the results of instruction execution to the destinations. The MIPS32 M4K processor core contains several logic blocks working together in parallel, providing an efficient high-performance computing engine. The MIPS M4K processor core offers many power management features, including low-power design, active power management and power-down modes of operation. The core is a static design that supports slowing or Halting the clocks, which reduces system power consumption during idle periods.
- Two I²S/SPI modules for Codec and serial communications
- Peripherals - Peripheral pin select (PPS) functionality
- Parallel master port (PMP) for graphics interfaces
- Charge time measurement unit (CTMU) - Supports mTouch� capacitive touch buttons and sliders
- 1.65 DMIPS/MHz (Dhrystone 2.1) performance
- MIPS32® M4K® core with MIPS16e® mode for up to 40% smaller code size
- Pin-compatible with most Microchip 16-bit devices
- Multiple power management modes
- Configurable WDT with on-chip low-power RC oscillator for reliable operation
- Peripheral - Up to 4 channels of hardware DMA with automatic data size detection
- Audio interface - I²S, LJ, RJ and DSP modes data communication, SPI and I²C� control interface
- Analogue - Up to 13-channel, 10-bit ADC and three analogue comparators
- Debug - Four programming and debugging interfaces
Applications
Computers & Computer Peripherals, Industrial, Audio, Consumer Electronics
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Embedded Interface Type | I2C, LIN, SPI, UART, USB |
| No. of I/O's | 19I/O's |
| No. of Bits | 32bit |
| Program Memory Size | 128KB |
| Architecture | PIC32 |
| No. of Pins | 28Pins |
| Product Range | PIC32 Microcontrollers |
| CPU Speed | 40MHz |
| Supply Voltage Min | 2.3V |
| MCU Case Style | SDIP |
| Packaging | Each |
| Supply Voltage Max | 3.6V |
| RAM Memory Size | 32KB |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | PIC32MX250F128B-I/SP |
| Quantity | Each |
| Technical Data Sheet EN |  |

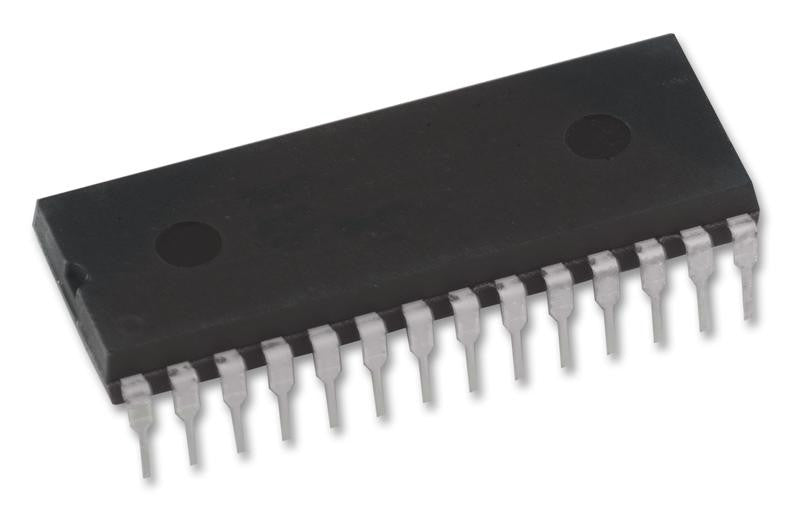

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
