Description
The C8051F300-GM is a fully integrated mixed-signal system-on-a-chip 8-bit ISP Flash Microcontroller featuring high-speed pipelined 8051-compatible core performance with a 25MIPS CPU, 500ksps 8-bit ADC, on-chip (±2%) precision oscillator and comparator. With on-chip power-on reset, VDD monitor, watchdog timer and clock oscillator, the device is truly stand-alone system-on-a-chip solution. The flash memory can be reprogrammed even in-circuit, providing non-volatile data storage and also allowing field upgrades of the 8051 firmware. User software has complete control of all peripherals and may individually shut down any or all peripherals for power savings.
- Pipelined instruction architecture - Executes 70% of instruction set in 1 or 2 system clocks
- Up to 25MIPS throughput with 25MHz clock
- Low current comparator
- Expanded interrupt handler
- On-chip debug circuitry facilitates full speed, non-intrusive in-system debug
- Provides breakpoints, single stepping, inspect/modify memory and registers
- Superior performance to emulation systems using ICE-chips, target pods and sockets
- Hardware enhanced UART and SMBus� serial ports
- Three general-purpose 16-bit counter/timers
- 16-bit Programmable counter array (PCA) with three capture/compare modules
- Real-time clock mode using PCA or timer and external clock source
- Internal oscillator - 24.5MHz with ±2% accuracy supports UART operation
- External oscillator - Crystal, RC, C or clock (1 or 2 pin modes)
- Can switch between clock sources on-the-fly - useful in Power saving modes
Applications
Industrial
Product details
| Controller Family/Series | C8051F30x |
| Embedded Interface Type | I2C, UART |
| No. of I/O's | 8I/O's |
| Program Memory Size | 8KB |
| No. of Pins | 11Pins |
| Product Range | C8051F Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 25MHz |
| Supply Voltage Min | 2.7V |
| MCU Case Style | MLP |
| Packaging | Each |
| Supply Voltage Max | 3.6V |
| RAM Memory Size | 256Byte |
| MSL | - |
Other details
| Brand | SILICON LABS |
| Part Number | C8051F300-GM |
| Quantity | Each |
| Technical Data Sheet EN |  |

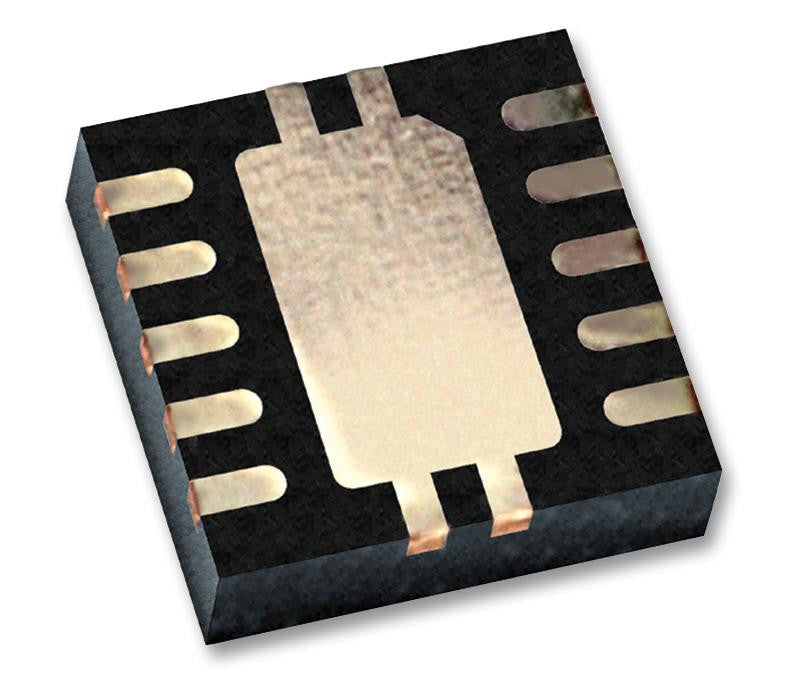

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
