Description
The STM32F030C6T6 is a general purpose ARM Cortex-M0 32bit microcontroller in 48 pin LQFP package. This microcontroller incorporates high performance RISC core with 48MHz operating frequency, high speed embedded memories, extensive range of enhanced peripherals and I/Os. The STM32F030C6T6 features standard communication interfaces, 12bit ADC, general purpose 16bit timers and advanced control PWM timer. A comprehensive set of power saving modes allows design of low power applications.
- Operating voltage range from 2.4V to 3.6V
- 32Kbytes of flash memory
- 4Kbytes of SRAM with HW parity
- CRC calculation unit
- 39 fast I/O ports
- 5 channel DMA controller
- Calendar RTC with alarm and periodic wakeup from stop/standby
- One 12bit, 1.0�s ADC (up to 12 channels)
- Ambient operating temperature range from -40�C to 85�C
- Features one I2C, one SPI and one USART interface
Applications
Embedded Design & Development, Portable Devices, Communications & Networking, Consumer Electronics, Wireless, Industrial, Imaging, Video & Vision
Product details
| Embedded Interface Type | I2C, SPI, USART |
| No. of I/O's | 39I/O's |
| No. of Bits | 32bit |
| Program Memory Size | 32KB |
| Architecture | ARM Cortex-M0 |
| No. of Pins | 48Pins |
| Product Range | STM32 F0 ARM Cortex-M0 Microcontrollers |
| CPU Speed | 48MHz |
| Supply Voltage Min | 2.4V |
| MCU Case Style | LQFP |
| Packaging | Each |
| Supply Voltage Max | 3.6V |
| RAM Memory Size | 4KB |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STM32F030C6T6 |
| Quantity | Each |
| Product Change Notice EN |  |

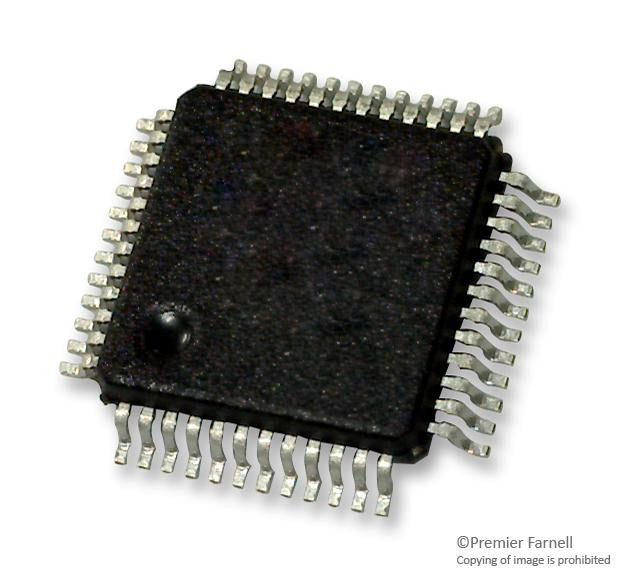

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
