Description

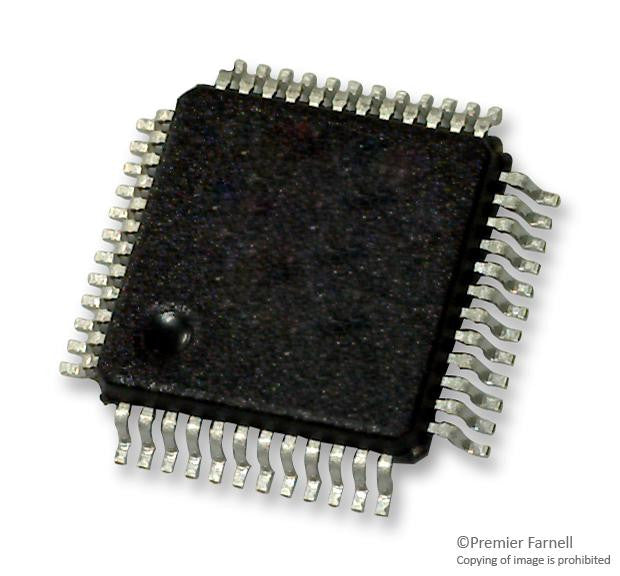

The STM32F030C8T6 is a Microcontroller Unit incorporates the high-performance ARM Cortex -M0 32-bit RISC core operating at a 48MHz frequency, high-speed embedded memories and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces, one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.
- CRC calculation unit
- 4 to 32MHz Crystal oscillator
- 32kHz Oscillator for RTC with calibration
- Internal 8MHz RC with x6 PLL option
- Internal 40kHz RC oscillator
- 0 to 3.6V Conversion range
- 2.4 to 3.6V Separate analogue supply
- Independent and system watchdog timers
- SysTick timer
- Communication interfaces
- Serial wire debug (SWD)
Applications
Sensing & Instrumentation, Consumer Electronics
Product details
| Embedded Interface Type | I2C, SPI, USART |
| No. of I/O's | 39I/O's |
| No. of Bits | 32bit |
| Program Memory Size | 64KB |
| Architecture | ARM Cortex-M0 |
| No. of Pins | 48Pins |
| Product Range | STM32 F0 ARM Cortex-M0 Microcontrollers |
| CPU Speed | 48MHz |
| Supply Voltage Min | 2.4V |
| MCU Case Style | LQFP |
| Packaging | Each |
| Supply Voltage Max | 3.6V |
| RAM Memory Size | 8KB |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STM32F030C8T6 |
| Quantity | Each |
| Product Change Notice EN |  |
