Stmicroelectronics STM32F103REY6TR STM32F103REY6TR ARM MCU Motor Control STM32 Family STM32F1 Series Microcontrollers Cortex-M3 32bit 72 MHz

The STM32F103REY6TR is a 32-bit high-density performance Microcontroller Unit offers three 12-bit ADC and 4 general purpose 16-bit timers plus two PMW timers, as well as standard and advanced communication interfaces up to two I²Cs and three SPIs and two I²S, one SDIO, five USARTs, an USB and a CAN. It incorporates the high-performance ARM® Cortex®-M0 32-bit RISC core operating at a 72MHz frequency, high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The 64-pin general-purpose microcontroller unit (MCU) feature 512kB flash memory.

• POR, PDR and programmable voltage detector
• Low power - Sleep, stop and standby modes
• VBAT supply for RTC and backup registers
• 12-channel DMA controller
• Debug mode - Serial wire debug (SWD) and JTAG interfaces
• Cortex®-M3 embedded trace Macrocellâ�¢
• 2 x Watchdog timers
• SysTick timer - 24-bit down counter
• CRC calculation unit, 96-bit unique ID

Applications

Motor Drive & Control, Portable Devices, Medical, Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Industrial, Security, Imaging, Video & Vision, HVAC

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	STM32F103REY6TR
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN

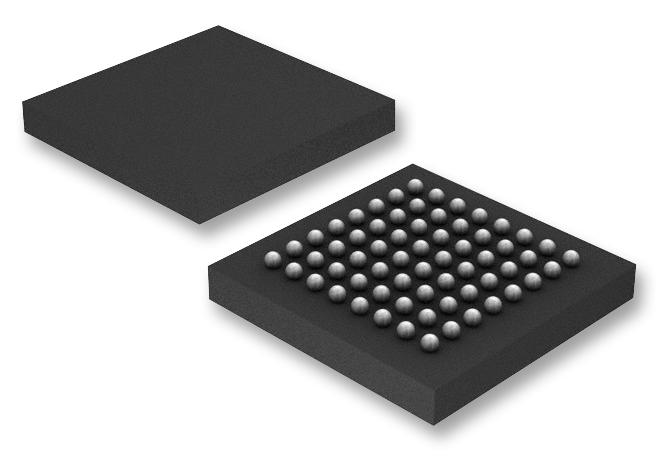

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
