- Siedentopf Interpupillary Adjustment
- Two 10x Wide Field Eyepieces
- 2x Objective Yields 20x Magnification
- Dual Coarse-Focus Knobs
- Upper LED Illumination
- 2.76" Maximum Working Distance
- Metal Specimen/Slide Clips

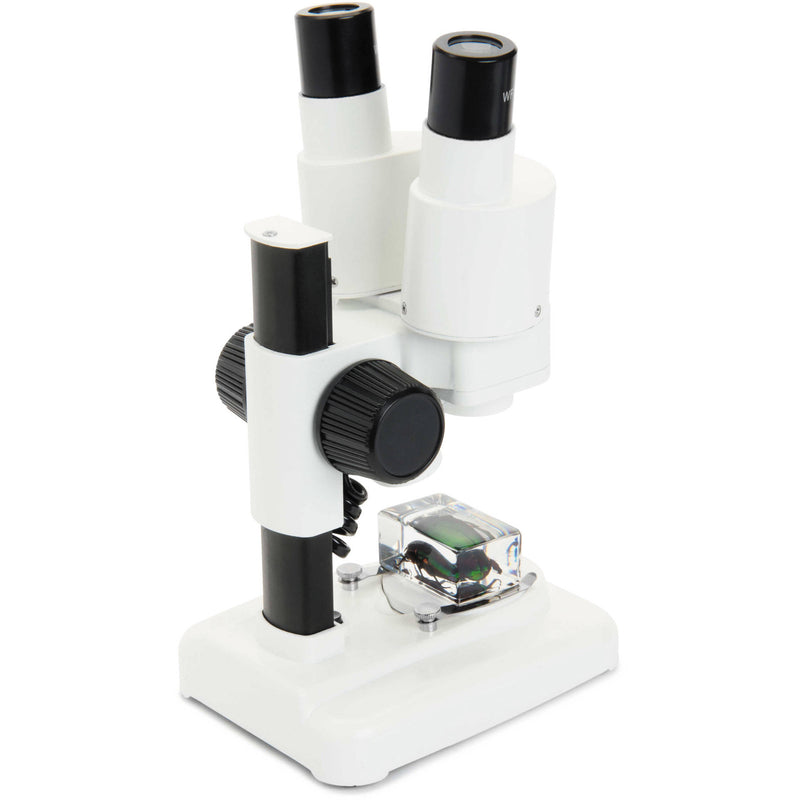

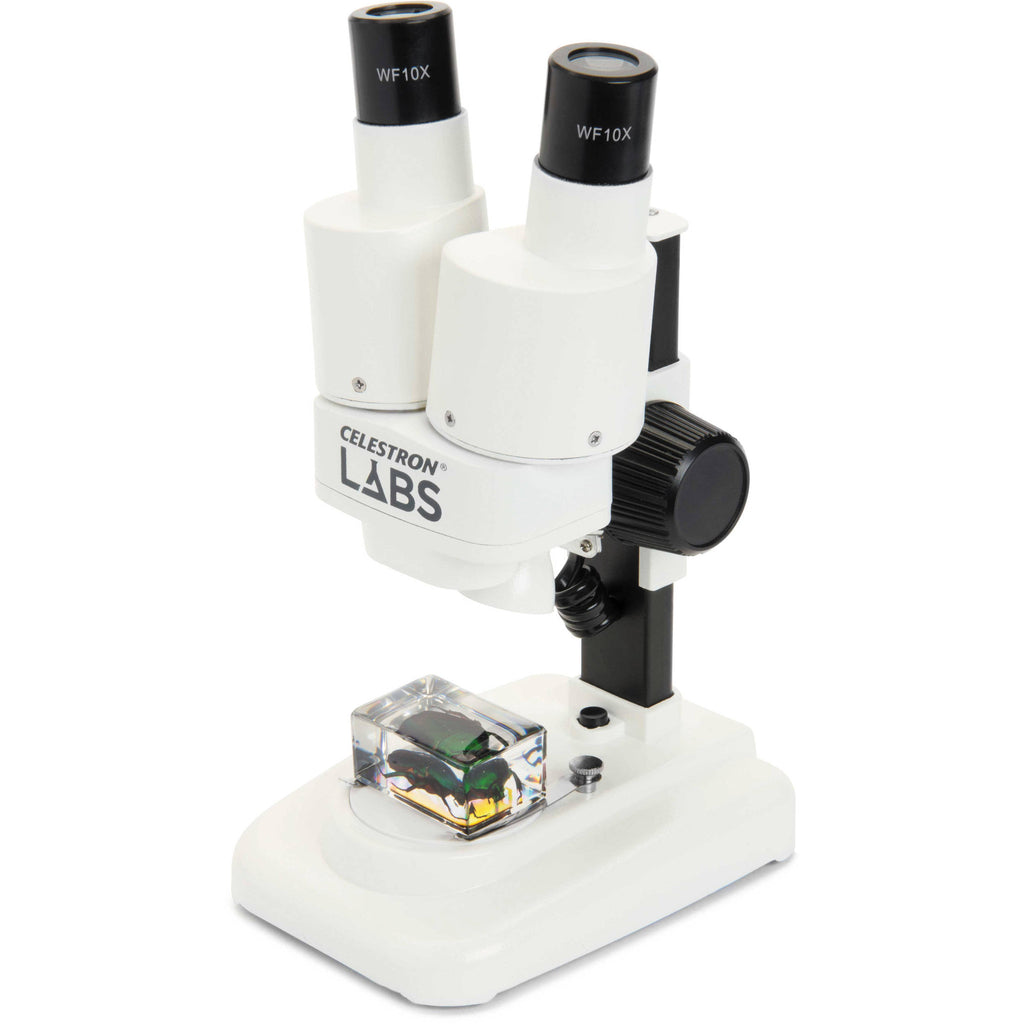

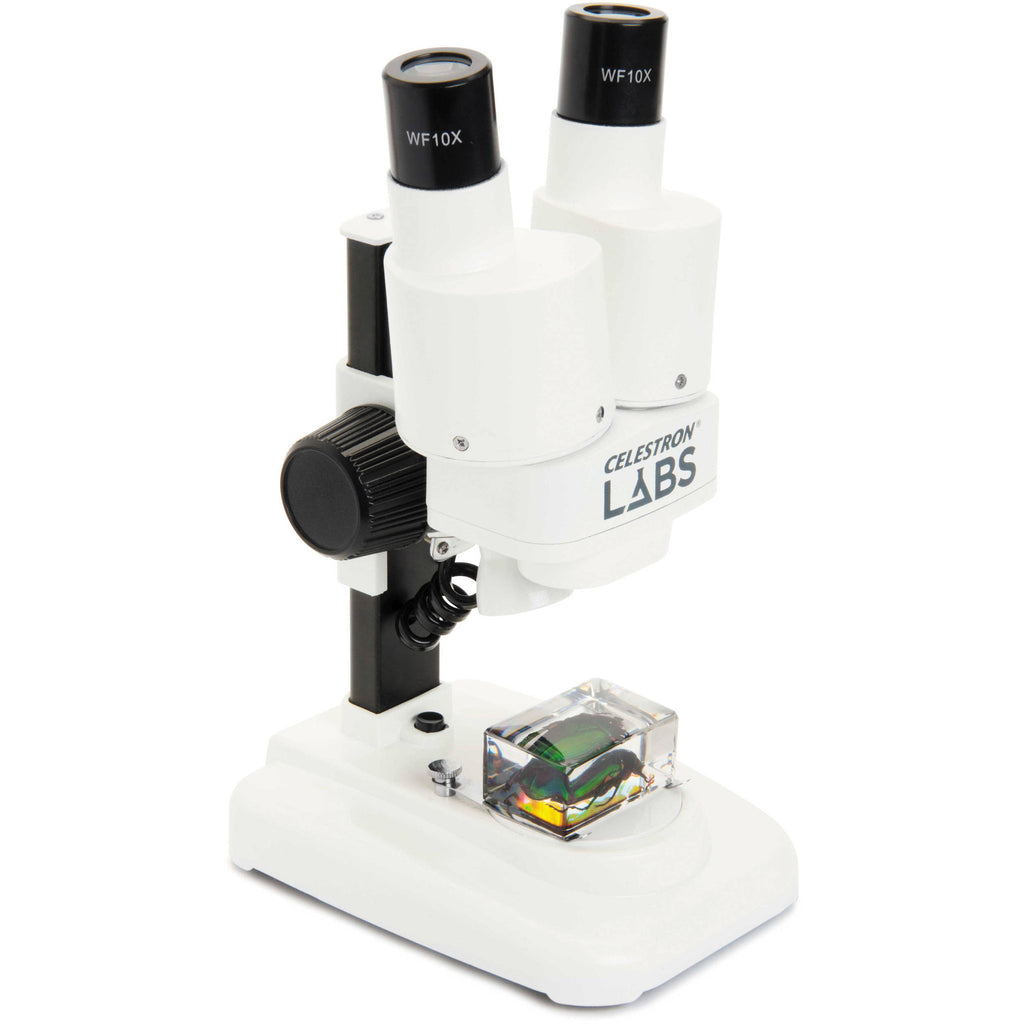

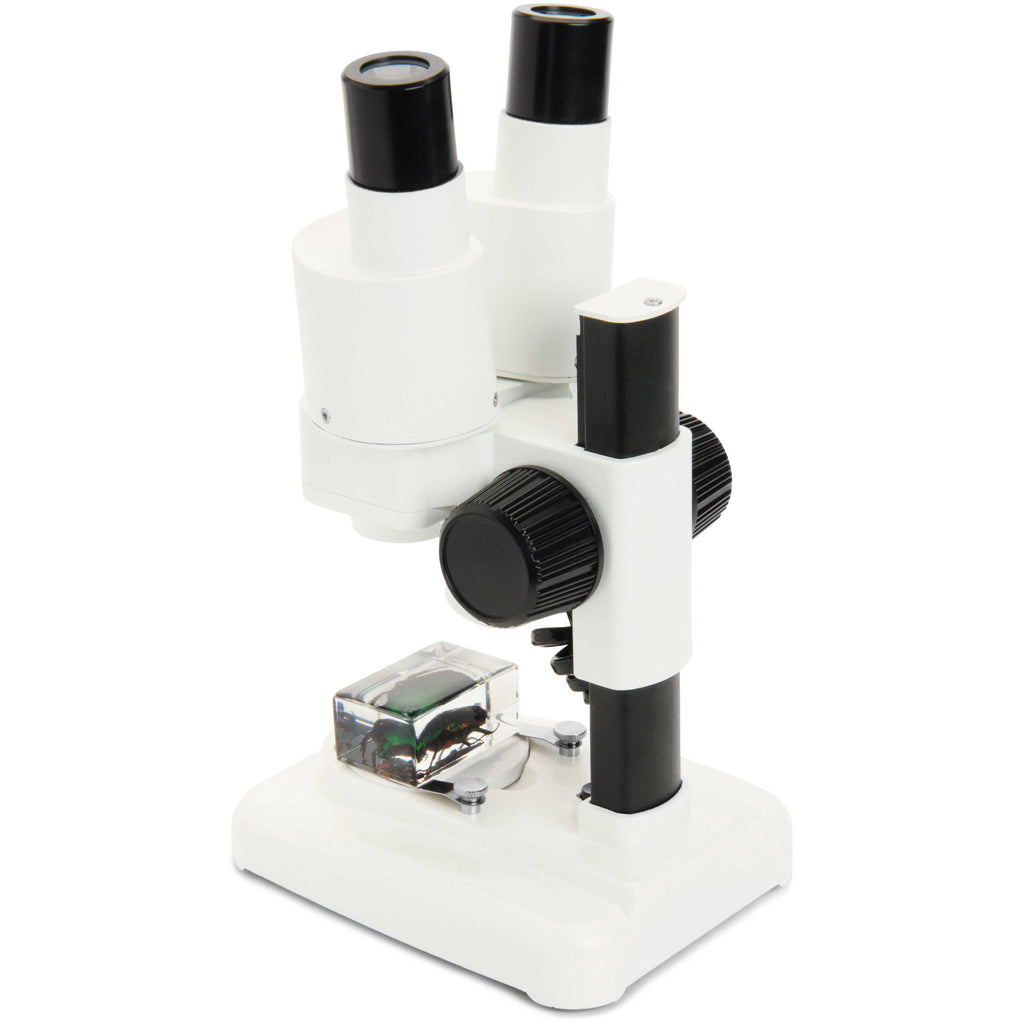

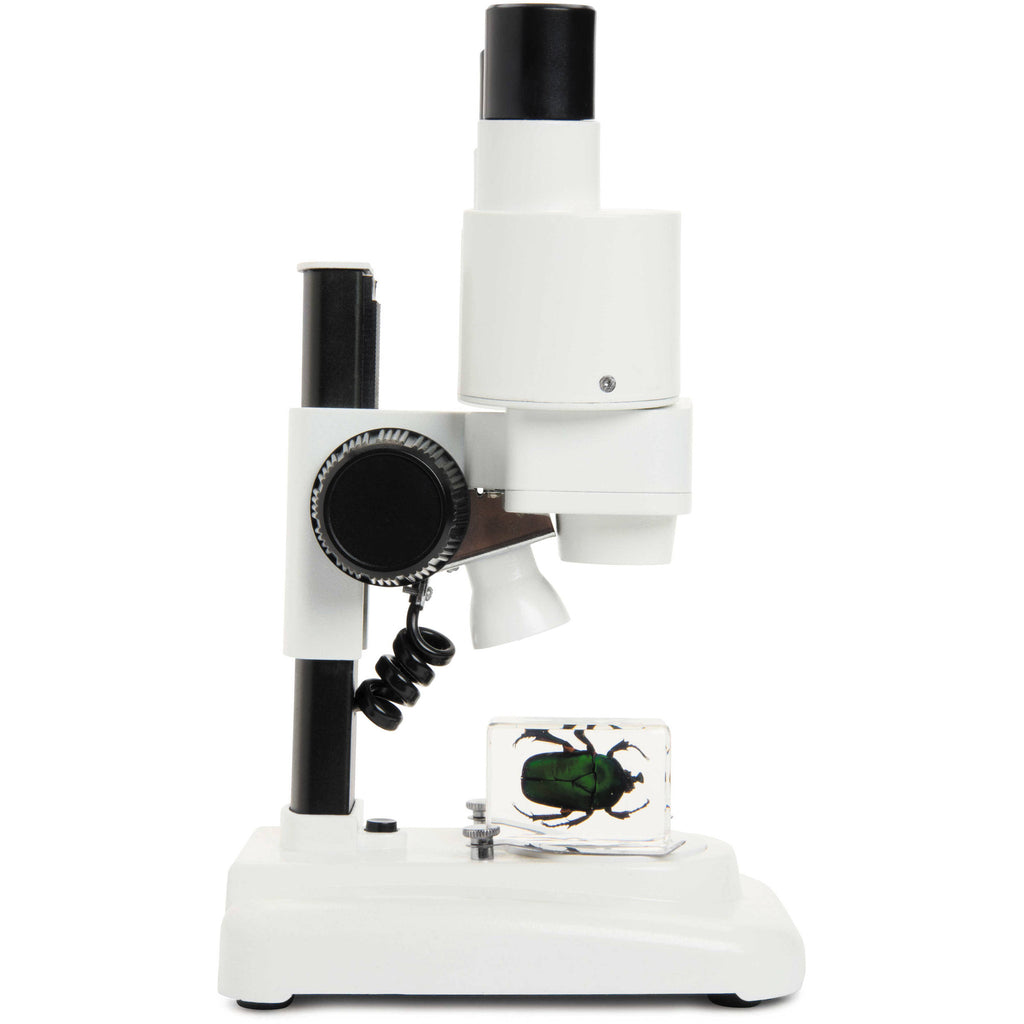

Designed as an entry-level instrument for students and hobbyists, Celestron Lab 's S20 Stereo Microscope is a versatile optic is ideal for making 3D observations of a variety of subjects such as coins, minerals, insects, leaves, textiles and documents. Dual eyepieces preserve stereoscopic vision which renders images in three dimensions, as opposed to a flat field common in single-ocular microscopes. It has a magnification of 20x with a maximum working distance of 2.76". The head and nosepiece are attached to the microscopes' pillar and is easily adjustable to set the correct working distance to achieve the sharpest focus. Specimens are illuminated from above with space-saving and energy efficient LED emitter. The S20 is battery-powered, making it ideal for use in the field.
- Optical System
-
- Two 10x wide field eyepieces
- Single 2x objective lens
- 20x magnification
- Lighting
-

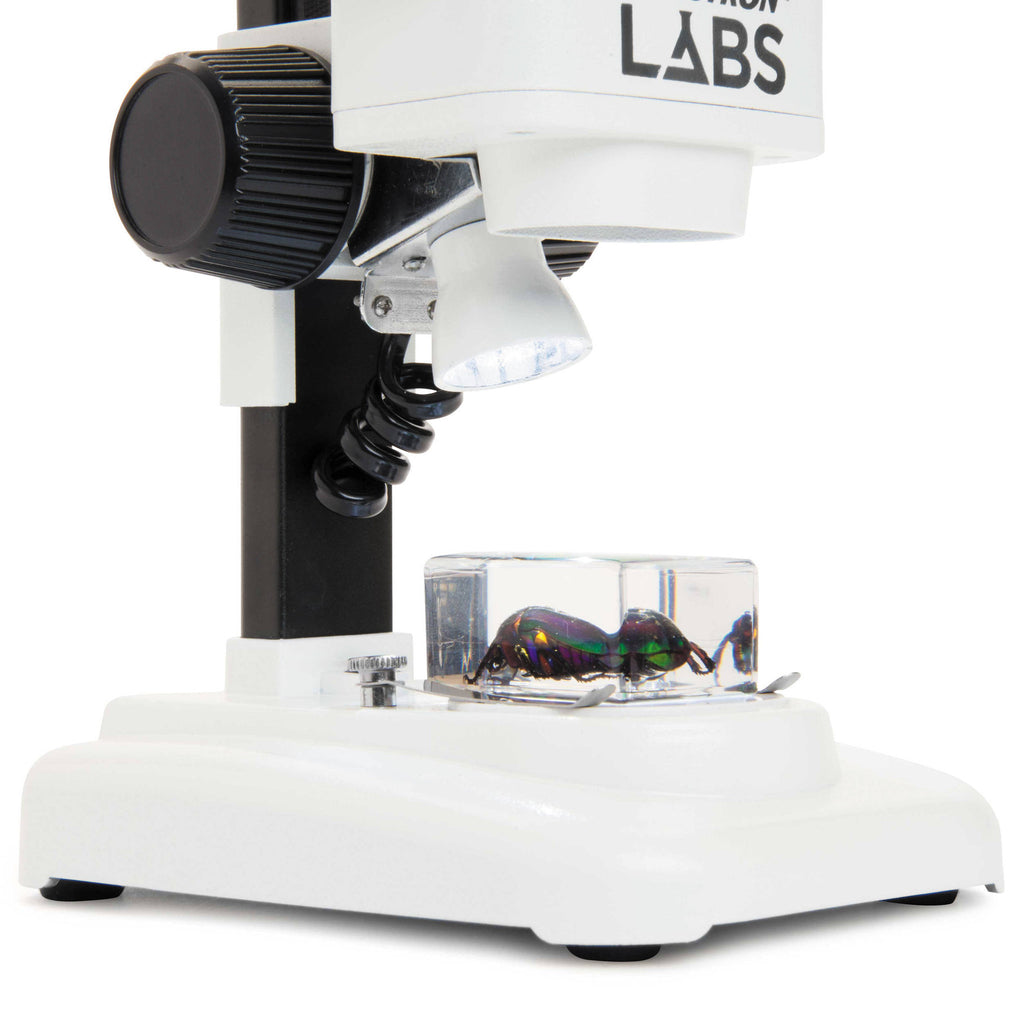

- Upper LED illumination
- On/off switch
- Runs on two AA batteries for use in the field
- Focusing
-

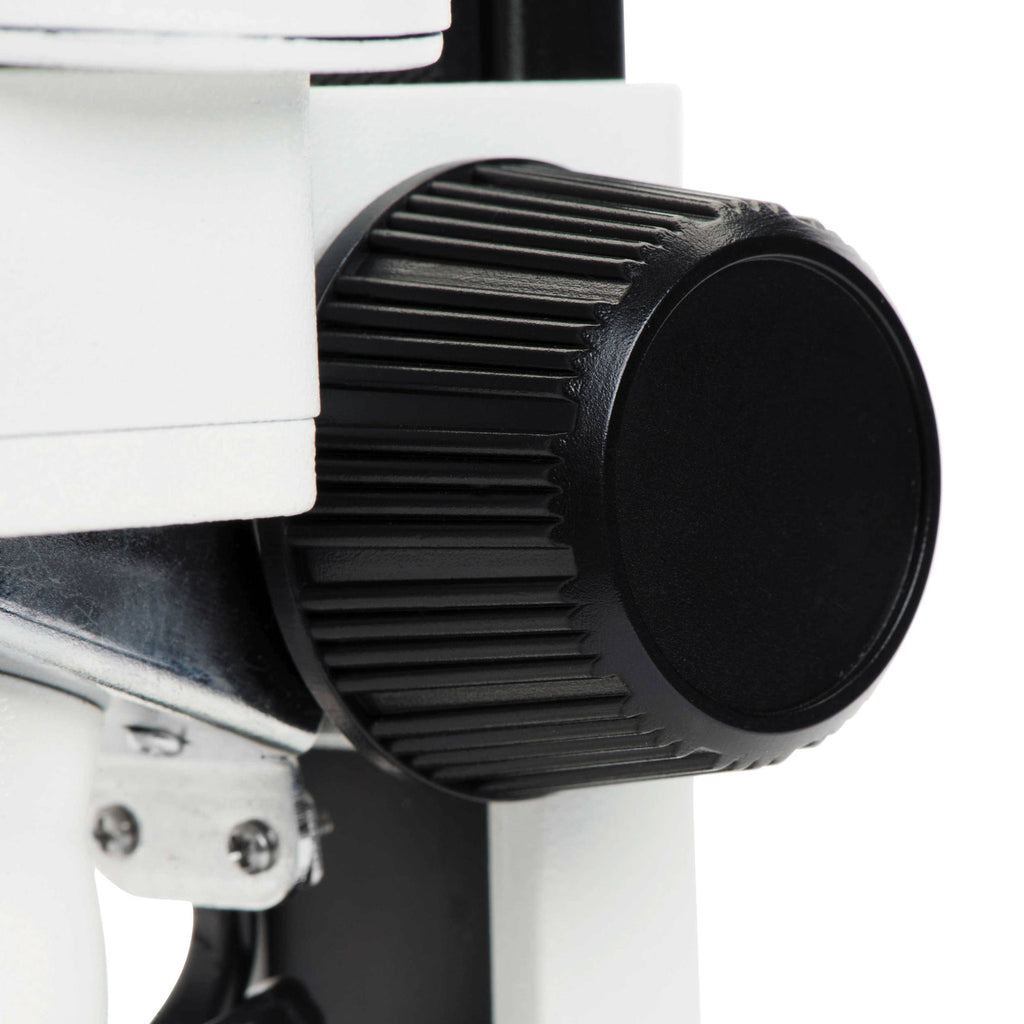

- Dual coarse focus knob, left and right sides
- Siedentopf interpupillary adjustment accommodates a wide range of users
- Right-eye dioptric adjustment
- Stage
-
- Adjustable working distance, 2.76" maximum

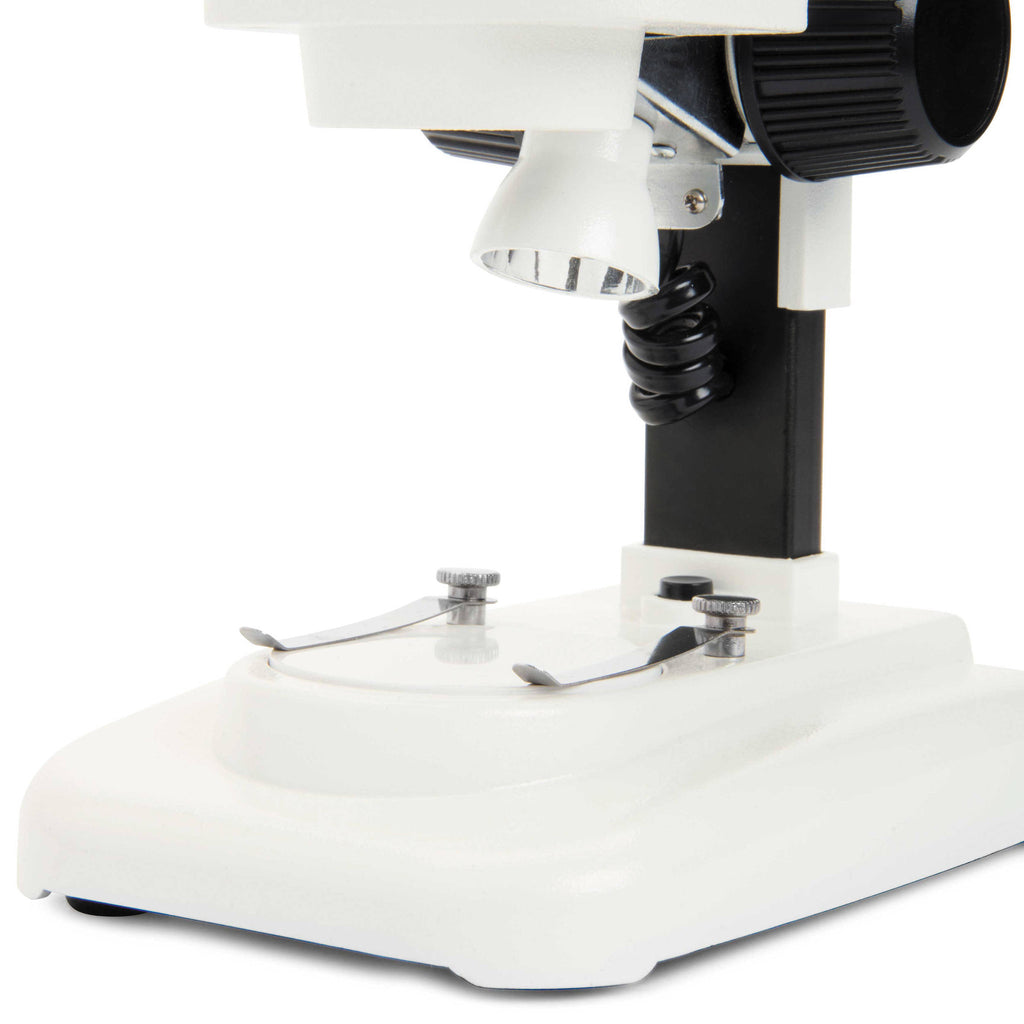

- Stage is integrated into base with slide/specimen clips
UPC: 050234442077
| Microscope Type | Stereo |
| Body Type | 2-Piece pillar-type with stand |
| Eyepiece | (2) 10x wide field |
| Nosepiece | Fixed |
| Objective(s) | 2x |
| Head | Binocular |
| Focuser | Rack-and-pinion coarse |
| Interpupillary Adjustment | 2.17 in - 2.95" (55 mm - 75 mm) |
| Light Source | Upper: LED |
| Light Control | On/off switch |
| Power | (2) AA batteries |
| Specimen Stage | Dimensions not specified by manufacturer |
| Overall Dimensions | 9.8 x 5.3 x 4.0" (24.8 x 13.5 x 10.2 cm) |
| Weight | 18.0 oz (510.3 g) |
| Packaging Info |
| Package Weight | 1.7 lb |
| Box Dimensions (LxWxH) | 11.0 x 7.2 x 5.7" |

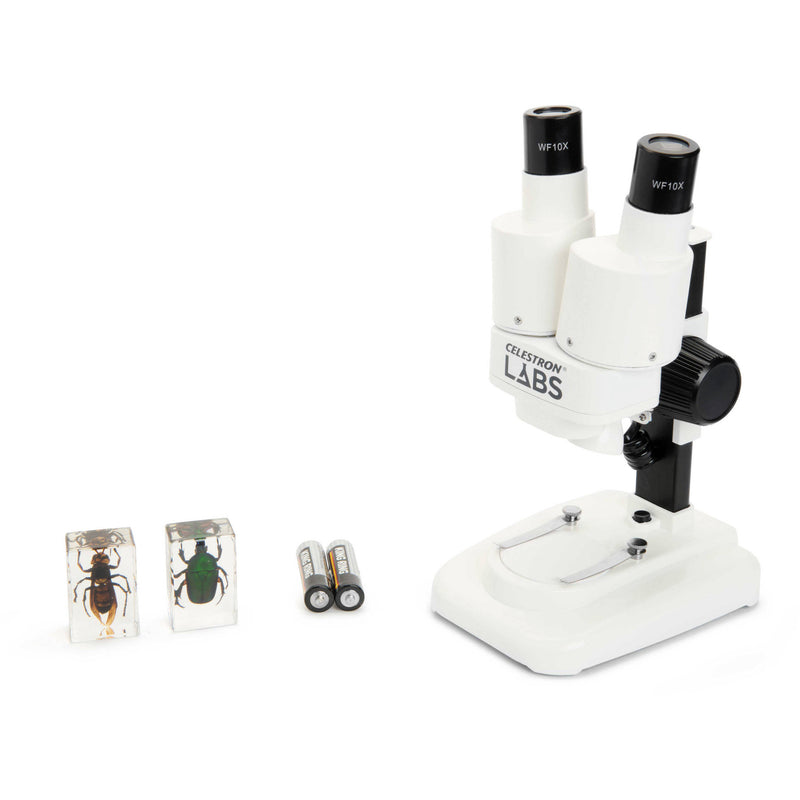

In the Box
CELESTRON LABS S20 Stereo Microscope
- Stage Plate
- 2 x Insect Specimens
- 2 x AA Batteries
- Limited Two-Year Warranty
