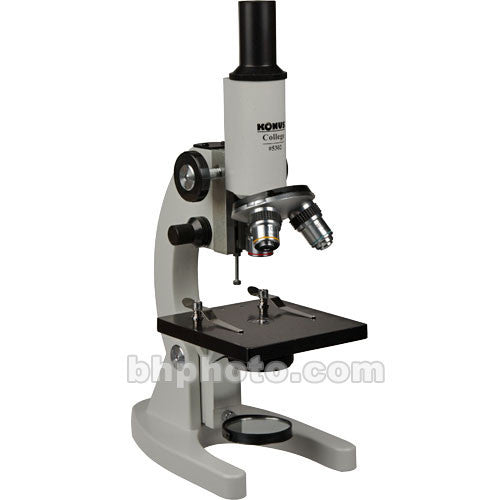

The Konus College 600X Biological Monocular Microscope is a professionally designed student microscope that includes a 15x wide field eyepiece and three interchangeable achromatic objectives (4x, 10x, 40x). It incorporate a rack and pinion focusing system with micrometrical and macro metrical adjustment, and illumination is provided by a Concave sub-stage mirror and illumination control is provided by a light condenser lens, with iris diaphragm and filter-holder.
- Includes 15x wide-field eyepiece.
- Straight hollow tube design with a focal length 160mm making it useable for microphotography.
- Three position turret nosepiece with three achromatic objective lenses (4x, 10x, 40x).
- Wide 120x110mm stage with slide clips.
- Double focus adjustments, with macro metric and micrometric for fine regulation and lens protective focus lock.
- Illumination provided by 46mm concave mirror.
- Light condenser lens with iris diaphragm and filter holder regulate incoming light.
- Solid, stable metal stand can be inclined to 90 degrees for more comfortable observation.
Microscope Type | Biological Monocular |
Body Type | Adjustable-inclination |
Eyepiece | 15x wide-field |
Nosepiece | 3 position turret |
Objective(s) | 4x, 10x, 40x |
Head | Standard Monocular |
Focuser | Rack-and-pinion mechanism with precision coarse and-fine adjustment |
Light Source | Sub-stage concave mirror |
Light Control | Condenser lens with Iris diaphragm |
Specimen Stage | 110mm x 120mm with spring slide clips |
Overall Dimensions | Not Specified |
Weight | Not Specified |
Packaging Info |
Package Weight | 5.3 lb |
Box Dimensions (LxWxH) | 14.7 x 10.1 x 8.0" |
In the Box
Konus College 600X Biological Monocular Microscope
- 15x Wide-field Eyepiece
- 4x Objective Lens
- 10x Objective Lens
- 40x Objective Lens
- Filter Holder
- Dust Cover
- Multilingual User Guide
- 2-Year Limited Warranty
