Description
Elo Touch 1594L Overview
By Photo's
Steven Wong

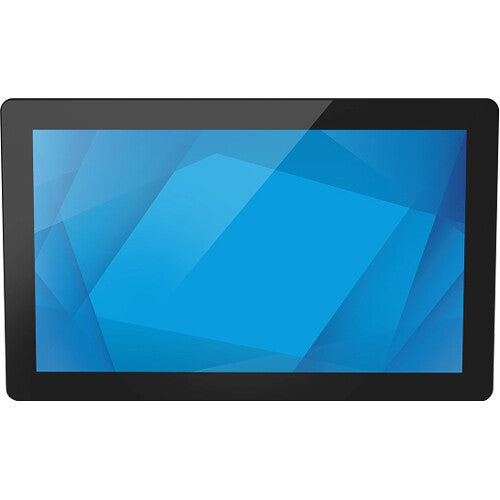

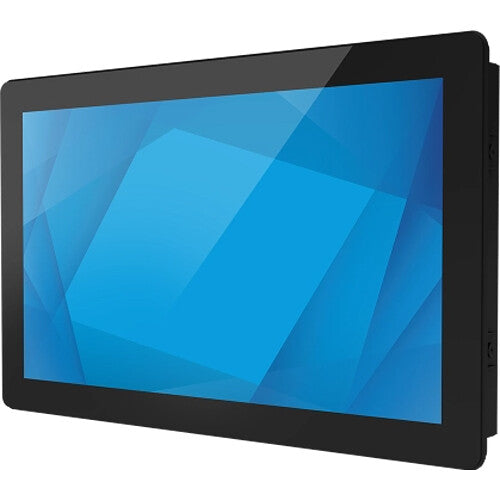

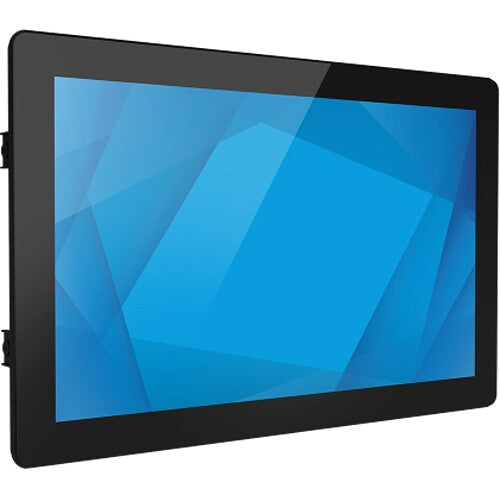

Featuring an open frame design that allows for flexible mounting, the Elo 1594L 15.6" Full HD Multi-Touch Monitor enhances your kiosk with a 1920 x 1080 resolution visuals and responsive interaction.

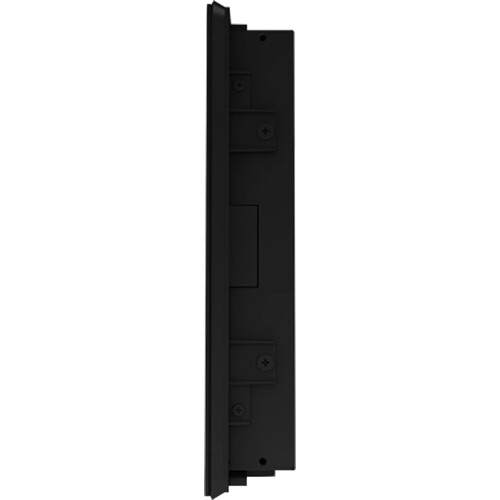

The open frame design allows the display to lay flush with the rest of installation. With TouchPro PCAP technology, the display can detect touch gestures through glass. Supporting 178° vertical and horizontal viewing angles with 350 nits brightness, users can clearly see the screen from multiple angles and distances.
Touch Through Glass
TouchPro PCAP technology provides touch through functionality for installations that require an up to 6mm-thick front layer of glass.

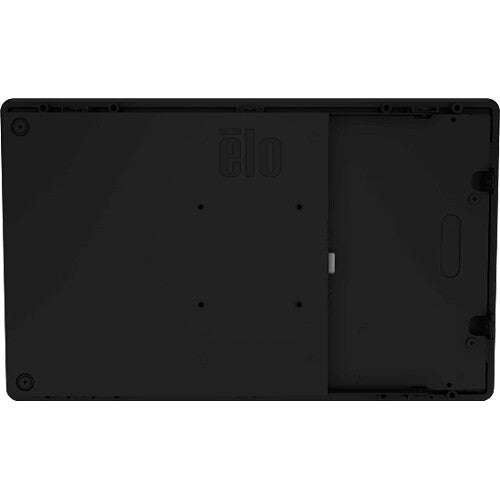

Flexible Mounting
Supporting landscape, portrait, and face-up orientations, you can place this display into almost any kiosk, cabinet, or table.
Versatile Connectivity
Connect devices through the HDMI 1.3, DisplayPort 1.1a, and VGA inputs.
UPC: 843173124179
Items Included
- Elo Touch 1594L 15.6" Full HD Multi-Touch Monitor
- HDMI Cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- Flush Mount Brackets with Screws
- Limited 3-Year Manufacturer Warranty
Additional Resources
Elo Touch 1594L Specs
Key Specs
| Display Size |
15.6"
|
| Panel Type |
LCD
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
350 nits / cd/m2
|
| HDR Support |
No
|
| Finish |
Glossy
|
| Touchscreen Technology |
Projected Capacitive
|
| Inputs |
1x DisplayPort
1x HDMI 1x DE-15/DB-15 (VGA) |
| Outputs |
No
|
| USB I/O |
No
|
Display
| Display Size |
15.6"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
350 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
800:1
|
| Response Time |
25 ms
|
| Refresh Rate |
82 Hz
|
| Variable Refresh Technology |
No
|
| Color Support |
16.7 Million Colors
|
| Pixels Per Inch (ppi) |
141 ppi
|
| Finish |
Glossy
|
| Touchscreen Technology |
Projected Capacitive
|
Connectivity
| Inputs |
1x DisplayPort
1x HDMI 1x DE-15/DB-15 (VGA) |
| Outputs |
No
|
| USB I/O |
No
|
| Ethernet I/O |
1x RJ45
|
Speaker
| Built-In Speakers |
No
|
Supported File Formats
| Supported Languages |
English
French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
Electrical
| Power Consumption |
Typical: 13.2 W
|
| Input Power |
12 VDC
|
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity
|
| Certifications |
UL, FCC, RCM, cUL, IC, CE, TUV, RoHS, WEEE
|
| Lock Slot |
No
|
| Weight |
6.7 lb / 3.0 kg
|
Packaging Info
| Package Weight |
9.82 lb
|
| Box Dimensions (LxWxH) |
18.3 x 13.5 x 6.8"
|
