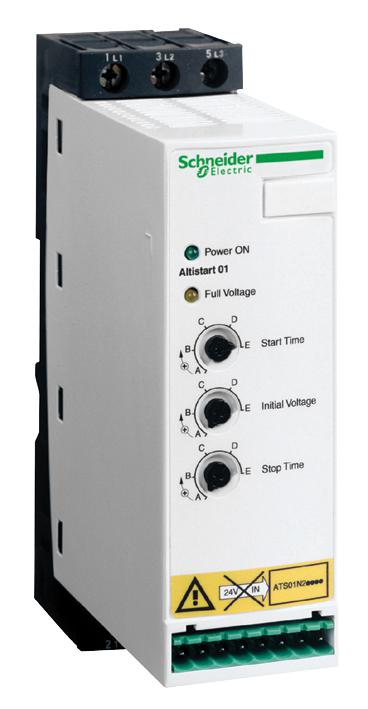

The ATS01N232QN from Schneider Electric is a three phase, soft starter asynchronous motor. Supply voltage of this motor ranges from 380V to 415V and has standard dimension of 154mm height, 45mm width and 131mm depth.
- LED display available in green and yellow colour
- Start with voltage ramp
- Featured with heat sink assembly
- Power dissipation of 324.5W in transient state
- Power supply frequency range from 50Hz to 60Hz
- Product weight is 0.56Kg
- Vertical operating position
- CCC, CSA, C-Tick, GOST and UL certified
- IP20 degree of protection
- Ambient air temperature for operation range from 40?C to 50?C with current derating 2.2% /?C
Applications
Industrial, Automation & Process Control, Motor Drive & Control
Product details
| Supply Voltage Min |
380V |
| Supply Voltage Max |
415V |
| No. of Phases |
Three Phase |
| Power Rating |
15kW |
| Current Rating |
32A |
| Product Range |
- |
Other details
| Brand |
SCHNEIDER ELECTRIC |
| Part Number |
ATS01N232QN |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
