Gabor UPMP-1000 Overview
-
1Description
-
2Quick Release
-
3Projector Adjustment
-
4Safe for Public Use
-
51.5 NPT Universal Compatibility
-
6Cable Management

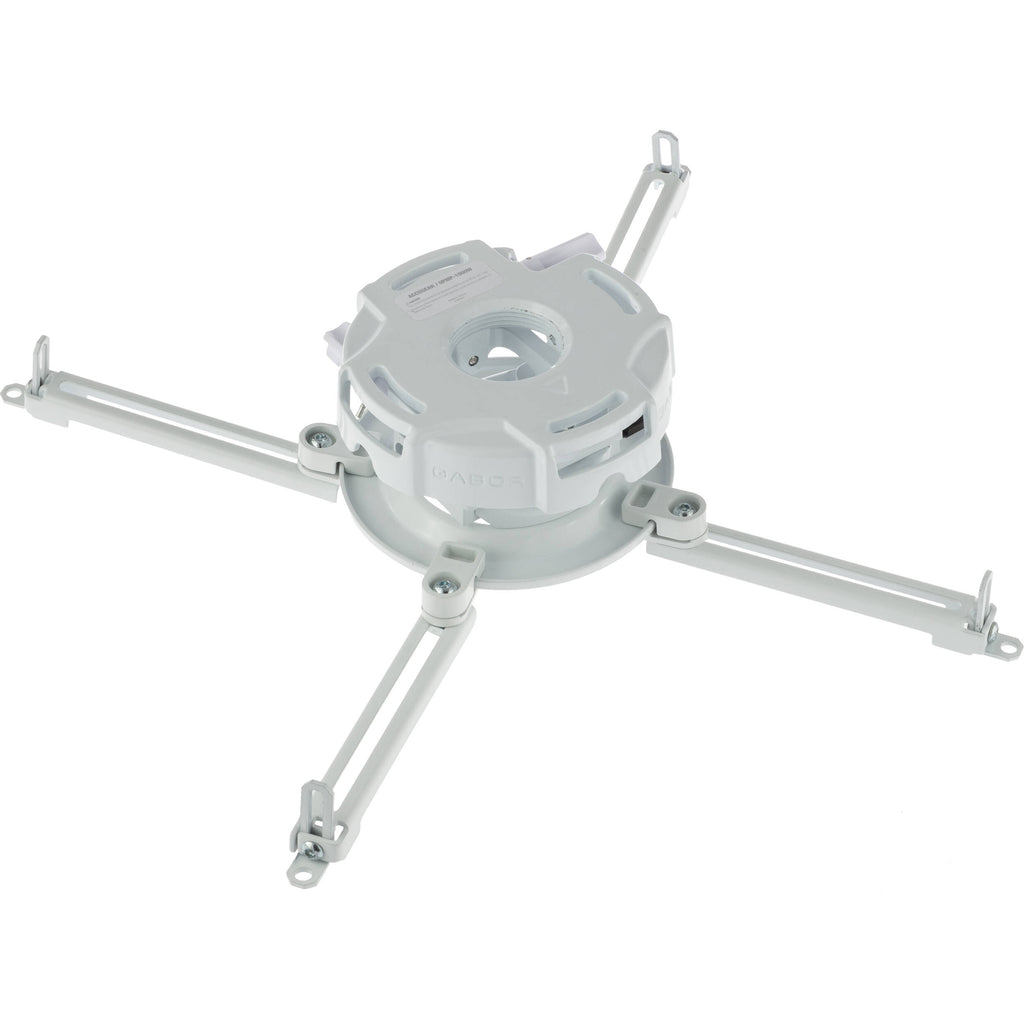

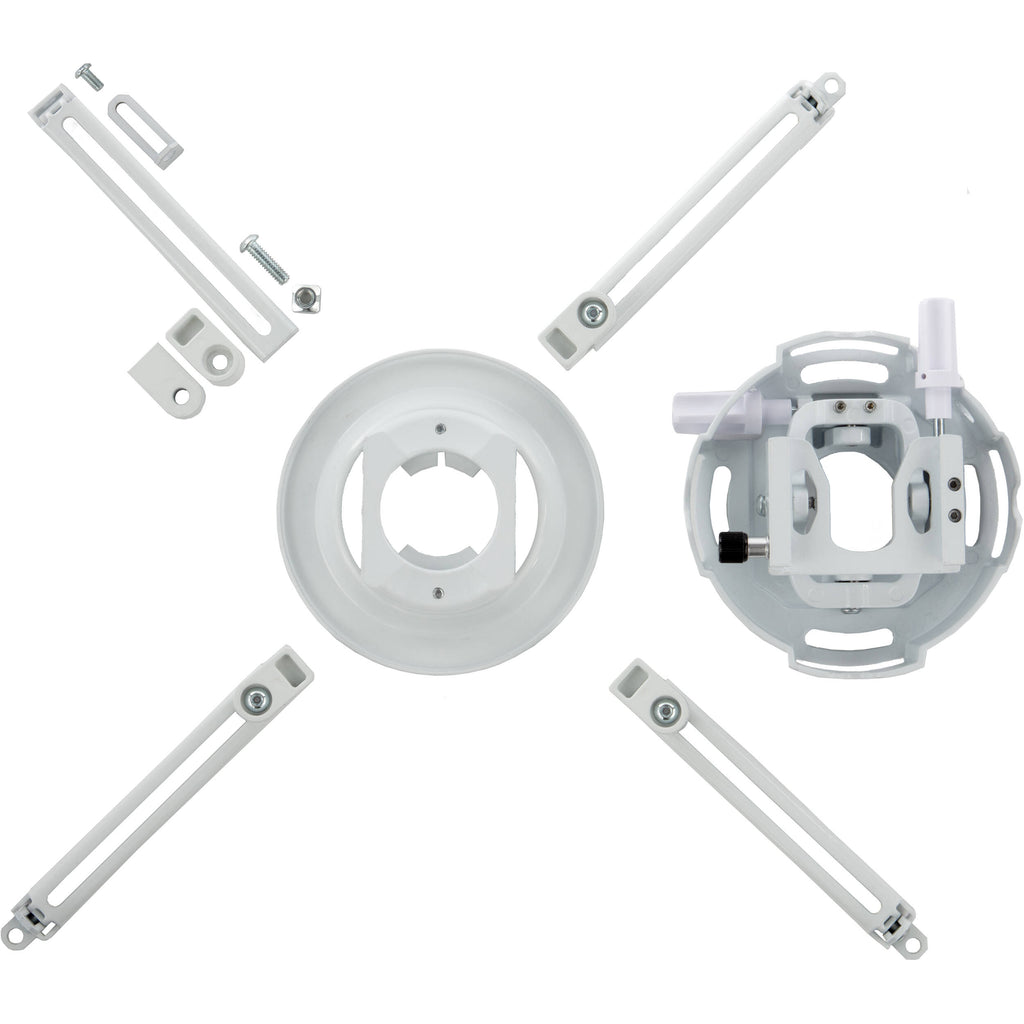

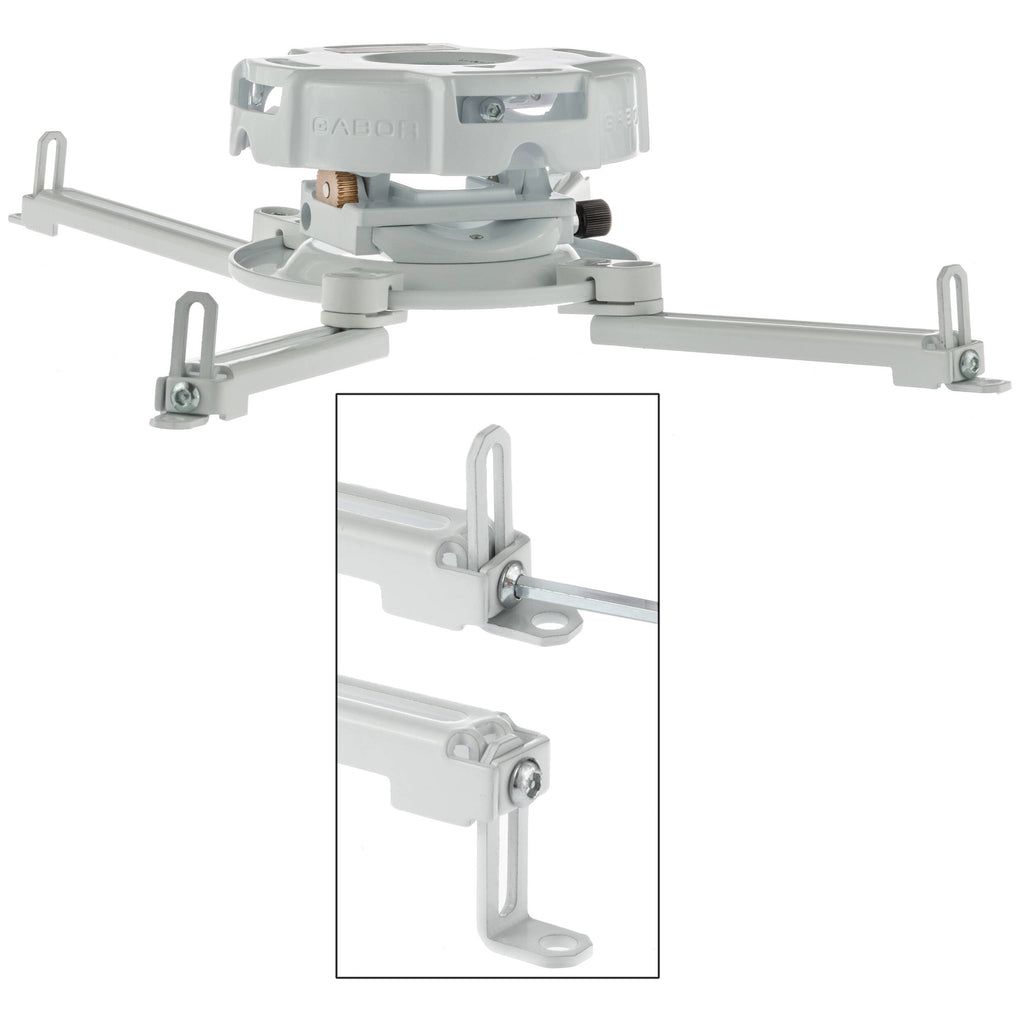

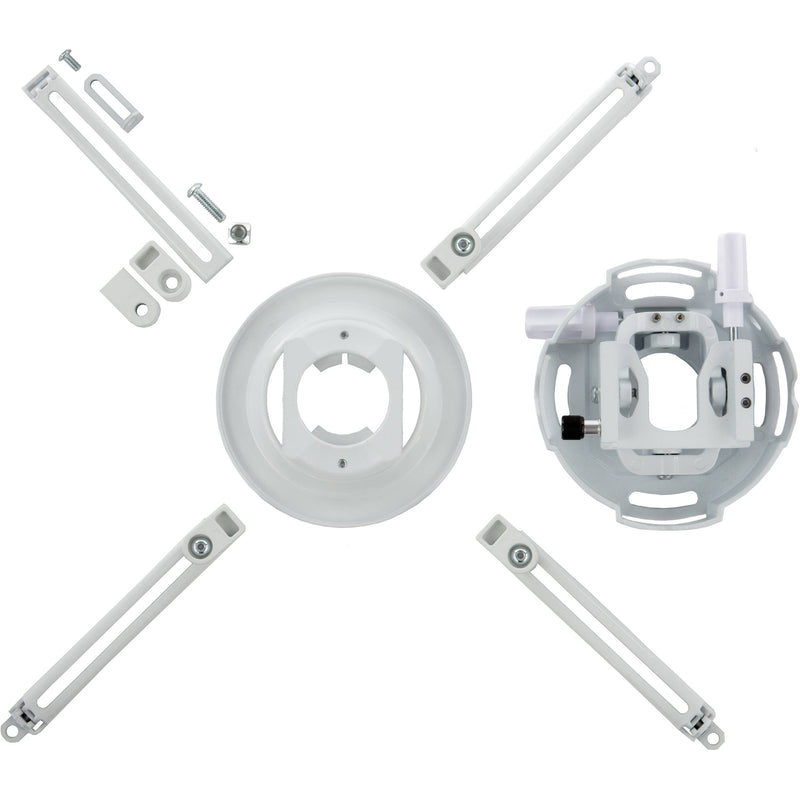

It's easy to get your projector's image just right when using the white UPMP-1000W AccuGear Universal Projector Mount from Gabor. Gabor's AccuGear dual-gear mechanism uses just two knobs to adjust the roll and tilt of the mount. Once it's set, you can lock in the settings without worrying that it will shift out of alignment. The entire mount comes pre-assembled, so it's also easy to get it attached to the ceiling. You only need to connect the plate to the ceiling and attach the mount to your projector. Four adjustable arms can accommodate most any projector's hole patterns with a maximum distance of 17.6", and its sturdy construction can hold projectors weighing up to 50 lb.
If you need to replace the lamp inside your projector or perform any other maintenance, simply use the quick-release mechanism to easily slide the projector from the mounting plate.

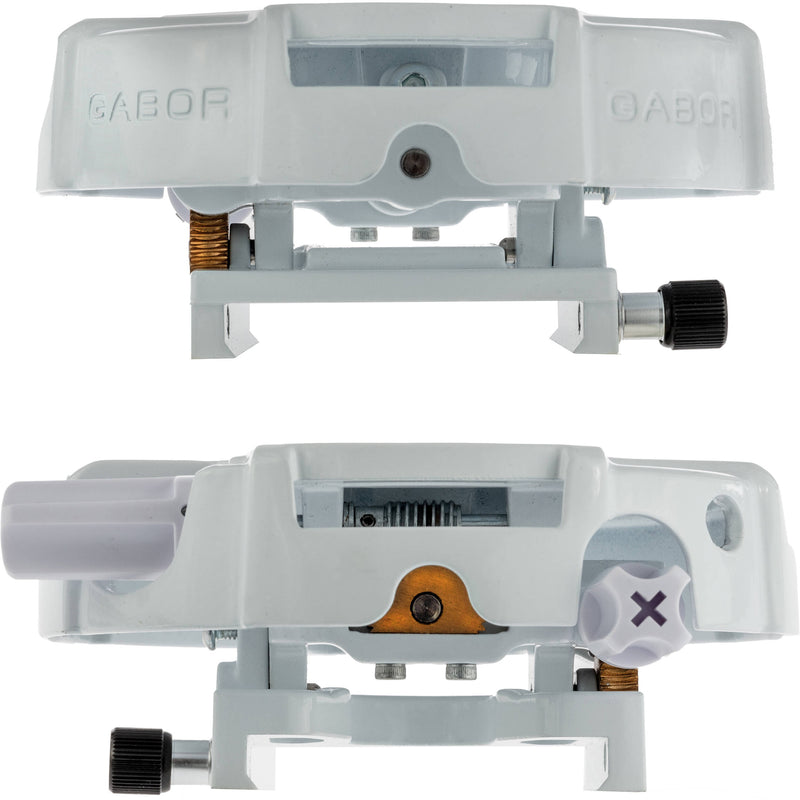

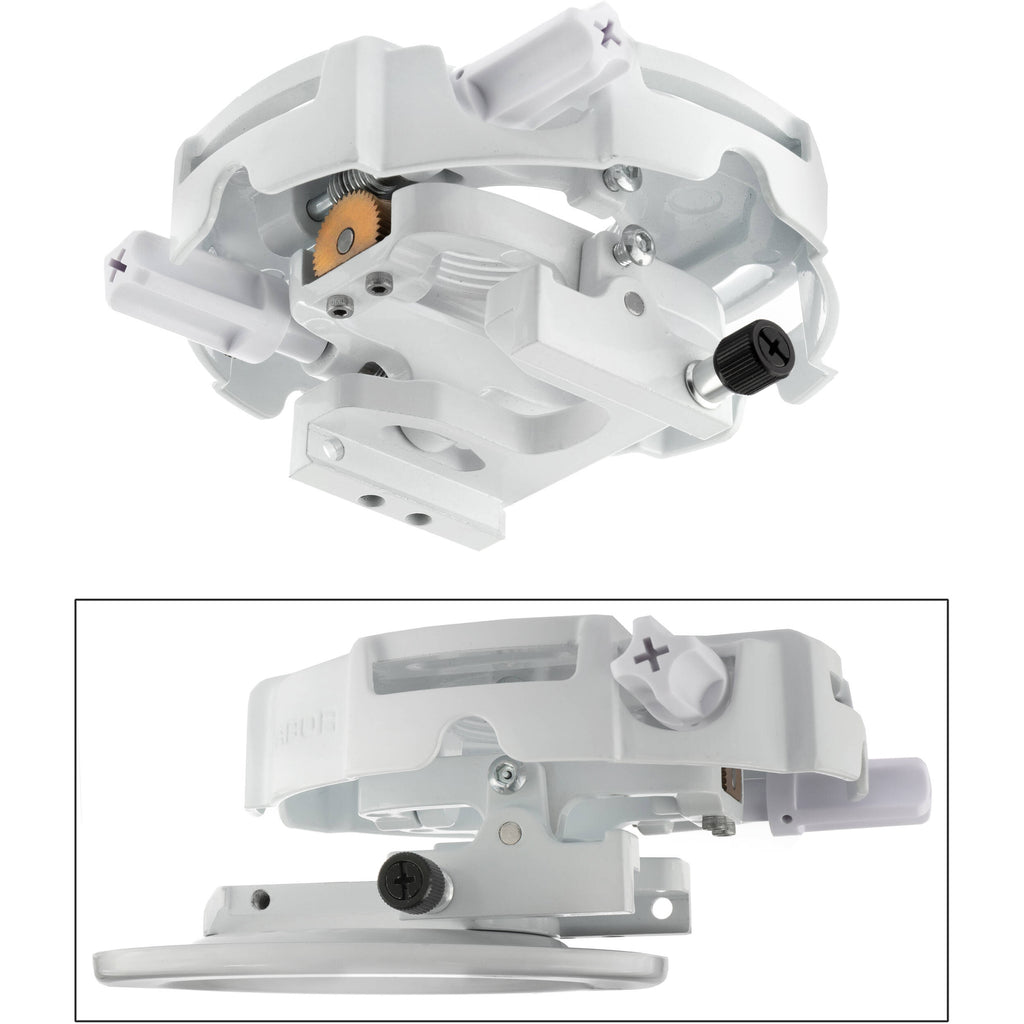

When using the AccuGear's dual knobs, you can tilt the projector up to ±20° and roll it up to ±10°. Additional adjustments include a full 360° of rotation if needed.
Thanks to the use of tamper-resistant screws, you can rest easy when mounting your projector in public spaces.
1.5 NPT Universal Compatibility
Ideally suited for installation in offices, warehouses, and other industrial spaces, the UPMP-1000W's 1.5" NPT threaded pipe compatibility provides secure mounting in drop ceilings and in ceilings of various heights that make use of extension columns.
In order to achieve a sleek and professional appearance, the low-profile mounting is complemented by the built-in cable management system. A large space through the center of the mount allows you to easily route unsightly cabling out of view.

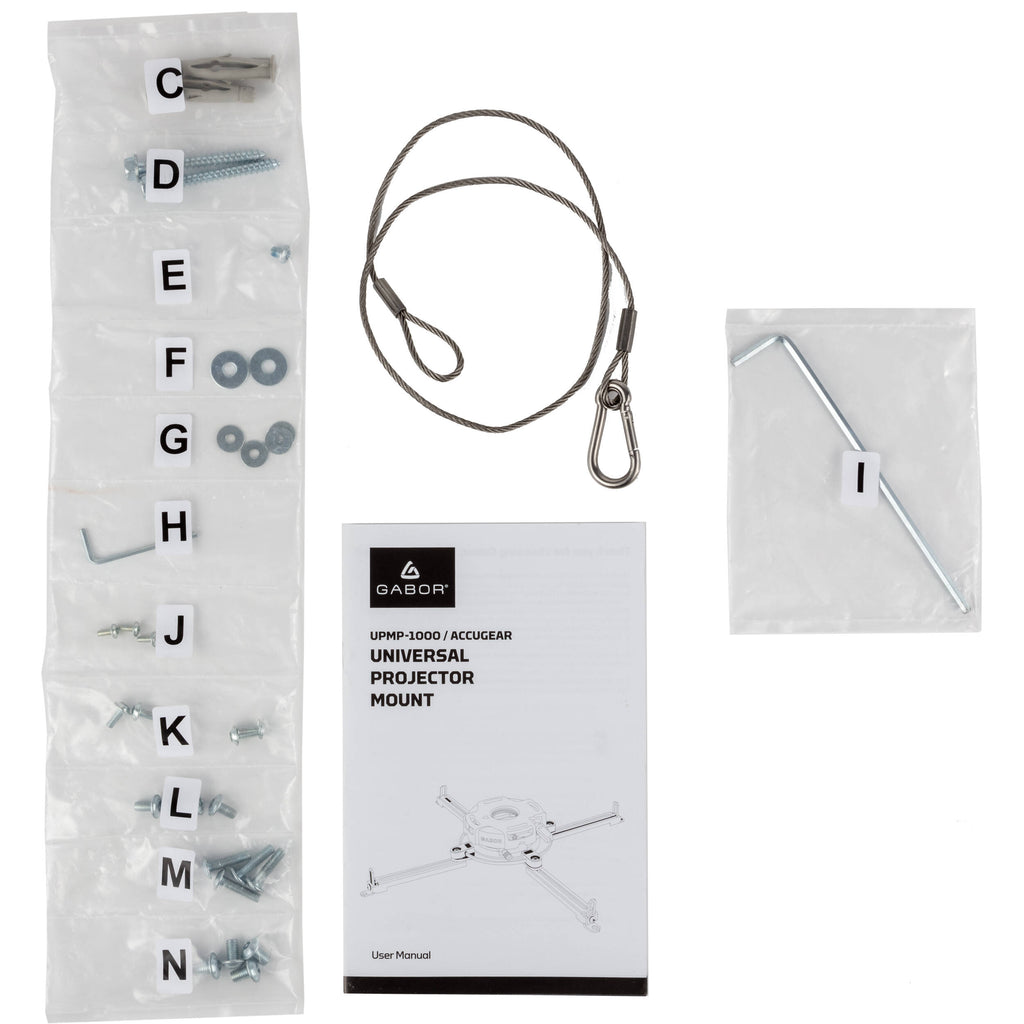

In the Box
- Gabor UPMP-1000W AccuGear Universal Projector Mount (White)
- Mounting Plate
- Projector Mount
- Assembly Hardware
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Quick Release
- Projector Adjustment
- Safe for Public Use
- 1.5 NPT Universal Compatibility
- Cable Management
Gabor UPMP-1000 Specs
| Load Capacity |
50 lb / 22.7 kg |
| Color |
White |
| Pan |
None |
| Roll |
-20 to +20° |
Mounting
| Clamping Range |
Not Specified by Manufacturer |
General
| Materials |
Aluminum, Steel |
| Dimensions |
3.9" / 9.8 cm (Depth from Mounting Source)
18 x 18 x 4.5" / 45.7 x 45.7 x 11.4 cm (Mount) |
| Weight |
3.1 lb / 1.4 kg |
Packaging Info
| Package Weight |
3.945 lb |
| Box Dimensions (LxWxH) |
15.1 x 6.5 x 2.7" |
