Description
ViewZ VZ-CMKIT Overview

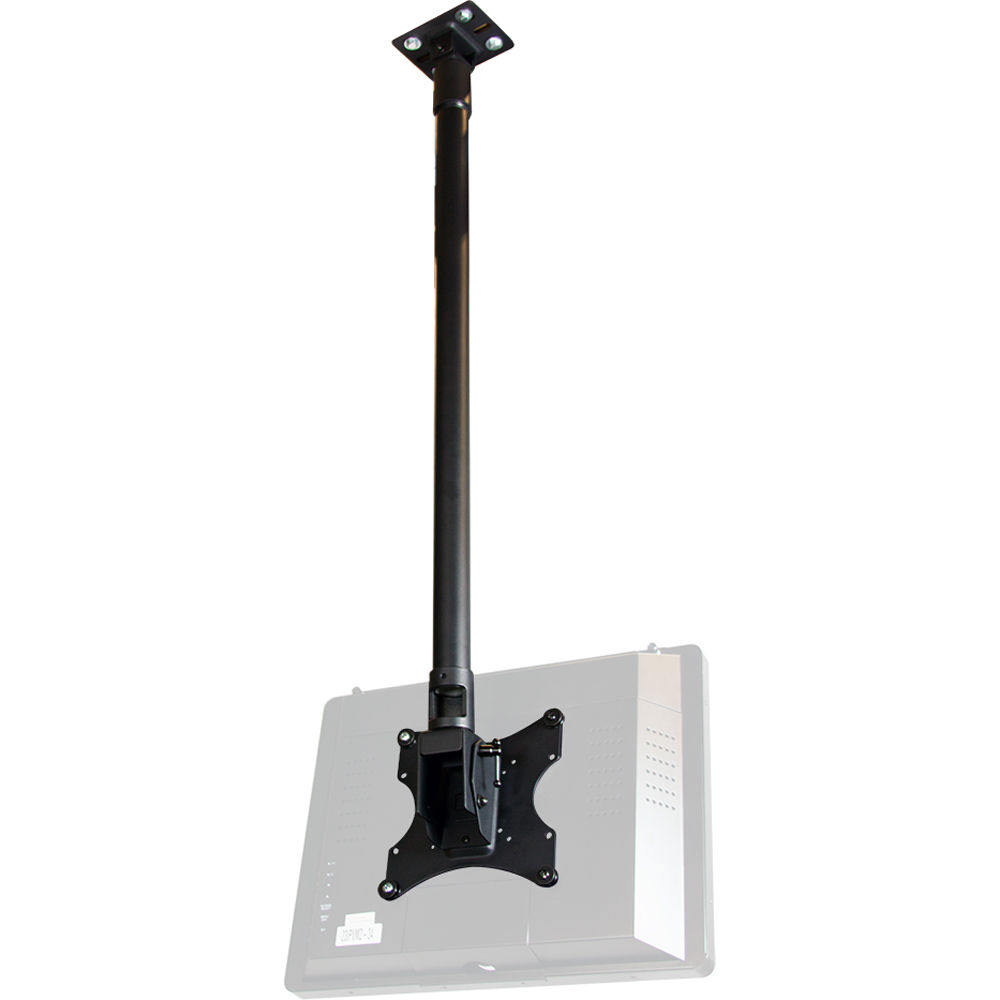

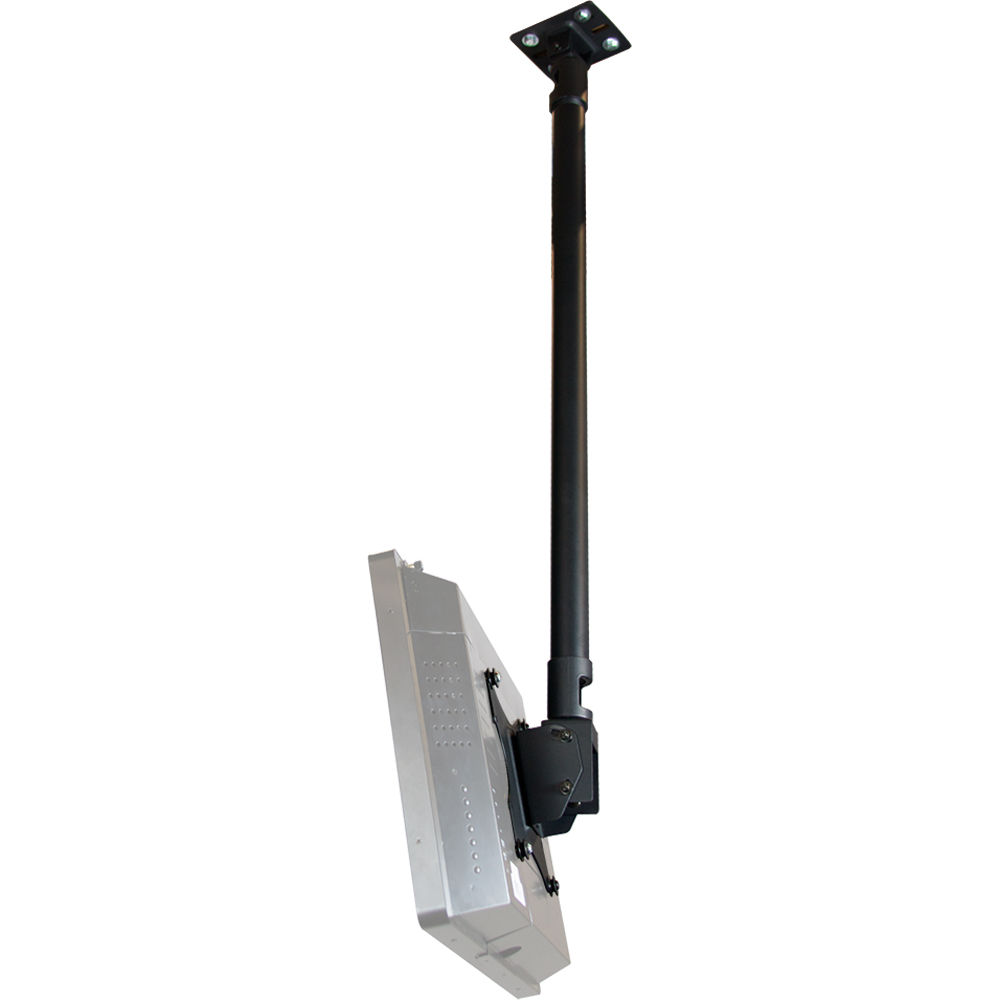

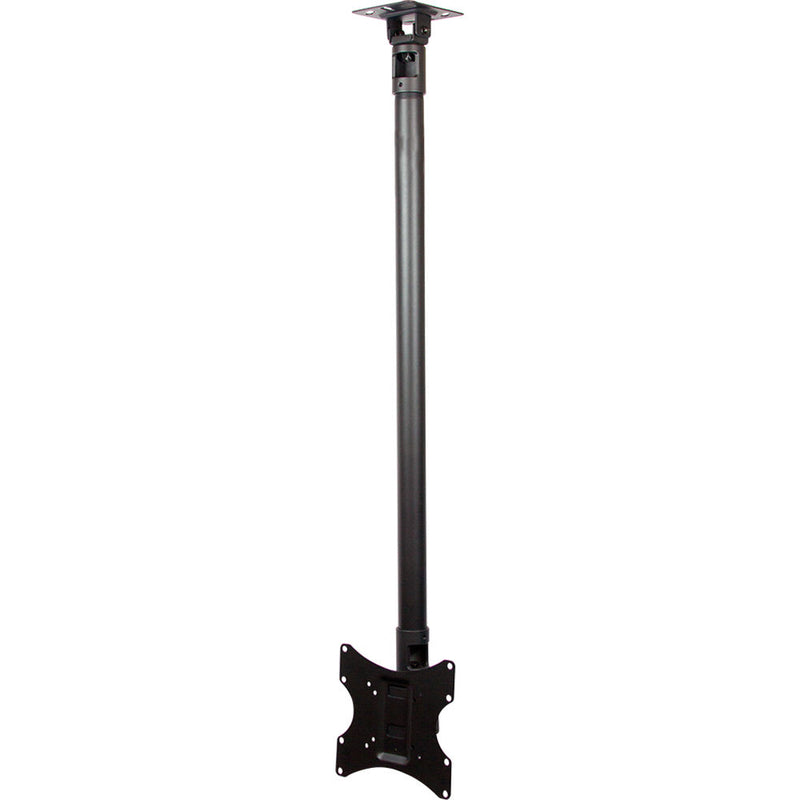

Mount your compatible 23 to 42" display to the ceiling with this ViewZ VZ-CMKiT-02 VESA Ceiling Mount Bundle. It includes a ceiling plate that provides ±80° of tilt adjustment, a 35.4" long extension pole, and a display adapter plate that supports VESA patterns ranging from 75 x 75 to 200 x 200mm and provides -12 to 5° of tilt adjustment. The overall system provides 360° of display rotation and supports displays weighing up to 110 lb.
ViewZ VESA Ceiling Mounting Head for Select 23 to 42" Monitors
Key Features
- Large load capacity
- VESA standard
- Easy cable management
- Rotation for achieving the perfect viewing angle
ViewZ Telescopic Extension Column for Select Mounting Heads and Tilt Ceiling Plate
Key Features
- Powder-coated surface
- Easy cable management, fast and easy installation
In the Box
- ViewZ VESA Ceiling Mounting Head for Select 23 to 42" Monitors
- ViewZ Telescopic Extension Column for Select Mounting Heads and Tilt Ceiling Plate
- ViewZ Tilt Ceiling Plate for VZ-CM-P15/36 Extension Column
ViewZ VESA Ceiling Mounting Head for Select 23 to 42" Monitors Specs
General
| Width | 8.7 in |
| Depth | 3.5 in |
| Height | 9.9 in |
| Weight | 4.56 lbs |
AV Furniture
| Type | Mounting component |
| Mounting Components | VESA mounting head |
| Recommended Use | LCD / plasma panel |
| Placing / Mounting | Pole mount |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 200 x 100 mm |
| Cable Management | Easy Cable Management |
| Recommended Display Size | 23"-42" |
| Tilt | -12° to 5° |
| Pan | 360° |
| Adjustments | Pan, tilt |
| Max Load Weight | 110.2 lbs |
ViewZ Telescopic Extension Column for Select Mounting Heads and Tilt Ceiling Plate Specs
General
| Width | 1.9 in |
| Depth | 35.4 in |
| Height | 1.9 in |
| Weight | 4.56 lbs |
AV Furniture
| Type | Mounting component |
| Mounting Components | Extension pole |
| Cable Management | Easy Cable Management |
| Max Load Weight | 110.2 lbs |
| Finish | Powder coated |
ViewZ Tilt Ceiling Plate for VZ-CM-P15/36 Extension Column Specs
General
| Width | 5.9 in |
| Depth | 4.7 in |
| Height | 5.1 in |
| Weight | 2.36 lbs |
AV Furniture
| Type | Mounting component |
| Mounting Components | Ceiling plate, pole |
| Recommended Use | LCD display |
| Cable Management | Easy Cable Management |
| Tilt | -80° to 80° |
| Pan | 360° |
| Adjustments | Pan, tilt |
| Max Load Weight | 110.2 lbs |
Dimensions & Weight Details
| Dimensions | Ceiling plate - width: 5.9 in, depth: 2.1 in, height: 4.7 in Pole - width: 2.2 in, depth: 2.2 in, height: 3 in |
Compatibility Information
| Designed for | ViewZ VZ-CM-P15, VZ-CM-P36 |
