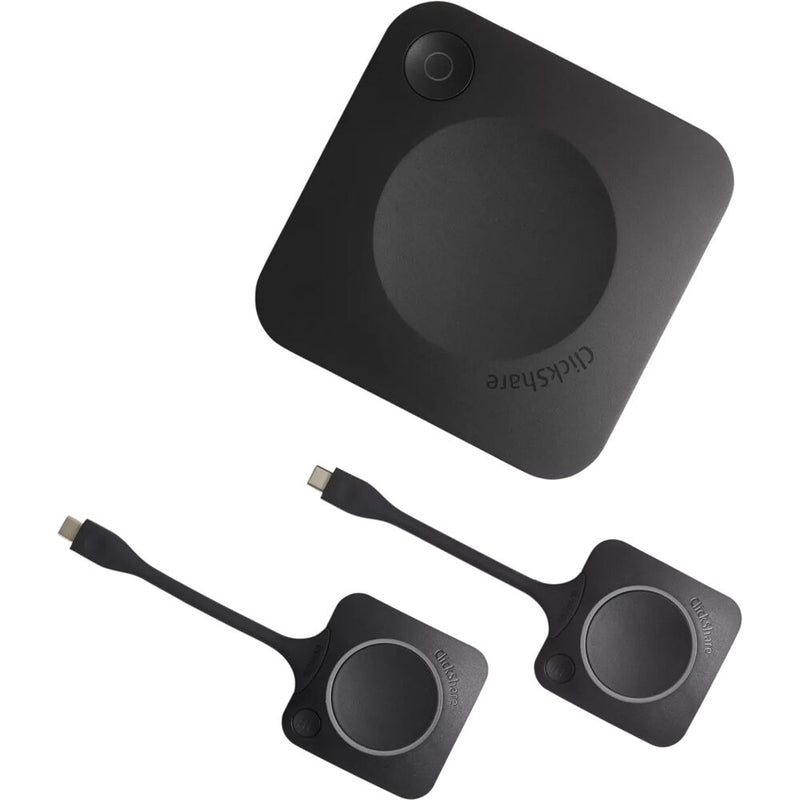

Barco ClickShare C-10 with 2 Buttons (Second Generation)

Make conducting team meetings in your office's conference room more intuitive and incorporate both in-person and virtual participants, using the second-generation version of the Barco ClickShare C-10 base unit and two buttons. This conference system features full bring-your-own-device compatibility for Windows or Mac operating systems and extends to laptops, tablets, and phones using it's upgraded USB 3.0 technology. Screen sharing and control can be achieved via the button or software application.

Two users can share screens simultaneously in full HD resolution without cables. The buttons themselves feature an integrated USB-C male connector compatible with both macOS and Windows computers. Mirror your screen to the base unit and subsequently your meeting room display via Airplay, Google cast, and Miracast. Each component wirelessly communicates with one another from up to 100' away.

The C-10 has enhanced security with cloud management capabilities and a wide range of connectivity options in order to be integrated into any preexisting interface. XMS cloud management platform allows for the remote management of units.

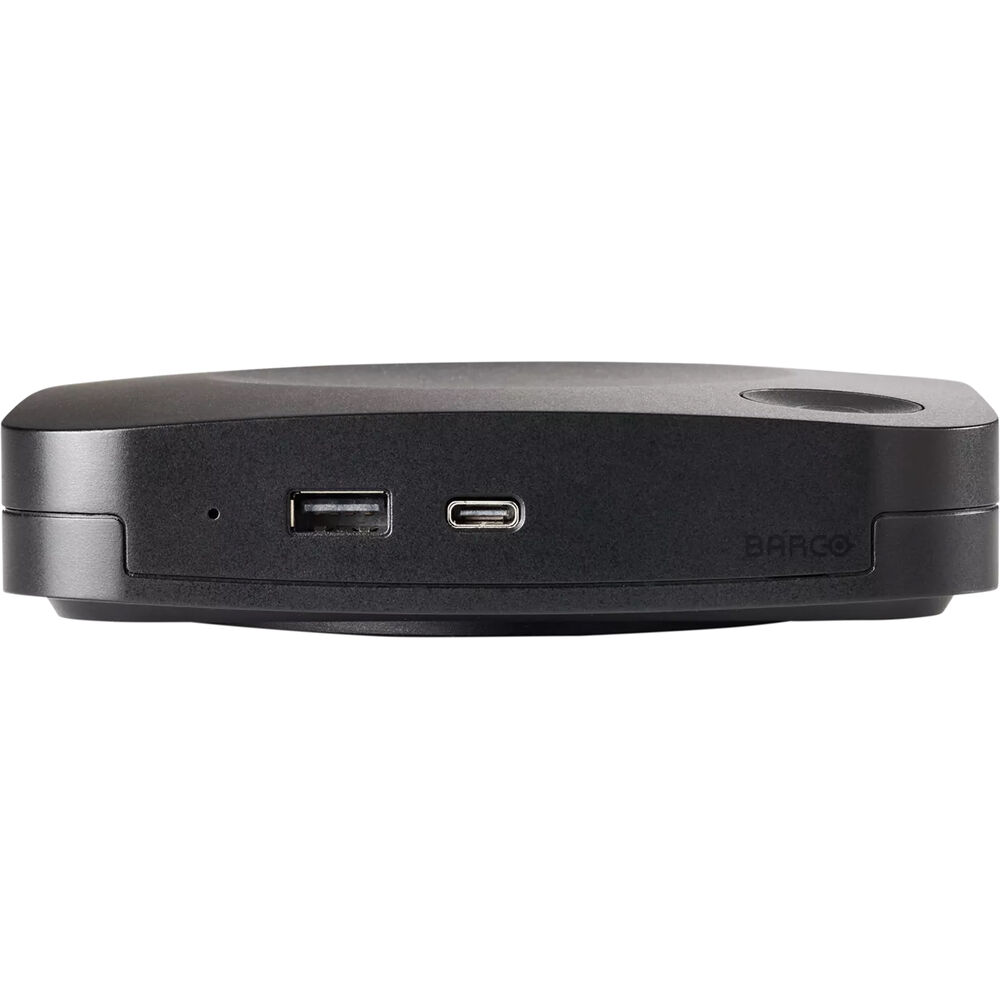

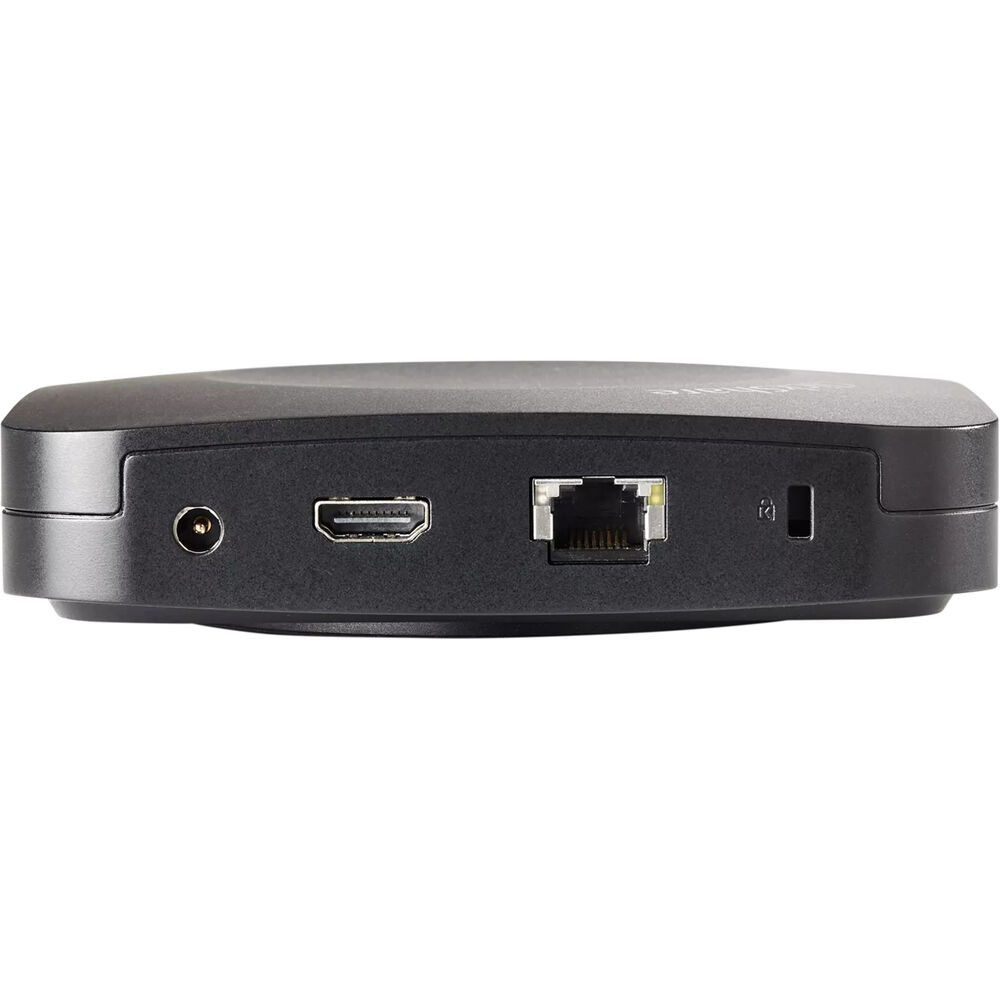

The base unit features a USB-A and a USB-C DisplayPort 1.2 port for integration into your meeting space, both with USB 3.0 technology. Its HDMI output port or USB-C connection allow you to deliver up to UHD 4K video to the display of your choice, while an RJ45 port connects the base unit to your office network.

• Local view of room display
• Full screen
• Single window display
• Annotation
• Blackboarding
• Touchback support

Barco ClickShare C-10 Specs

USB I/O	1 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input/Output 2 x USB-C 3.0 / 3.1/3.2 Gen 1 Integrated Male Input/Output
Video I/O	1x HDMI 1.4b Output 1x RJ45 Input/Output

Wireless

2.4 GHz Radio/RF / 5.8 GHz Radio/RF *Built-In

Power Source	USB, AC Input
AC Input Power	110 to 220 VAC, 50 / 60 Hz
Power Consumption	5 W 10 W 24 W (Maximum)

Color	Black
Certifications	CE, FCC
Operating Conditions	32 to 104°F / 0 to 40°C up to 85% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C up to 90% Humidity
Cable Length	Not Specified by Manufacturer
Dimensions	5.3 x 5.3 x 1.3" / 135 x 135 x 34 mm (Base Unit)
Weight	31.7 oz / 900 g

Package Weight	2.955 lb
Box Dimensions (LxWxH)	10.3 x 6.5 x 3.2"
