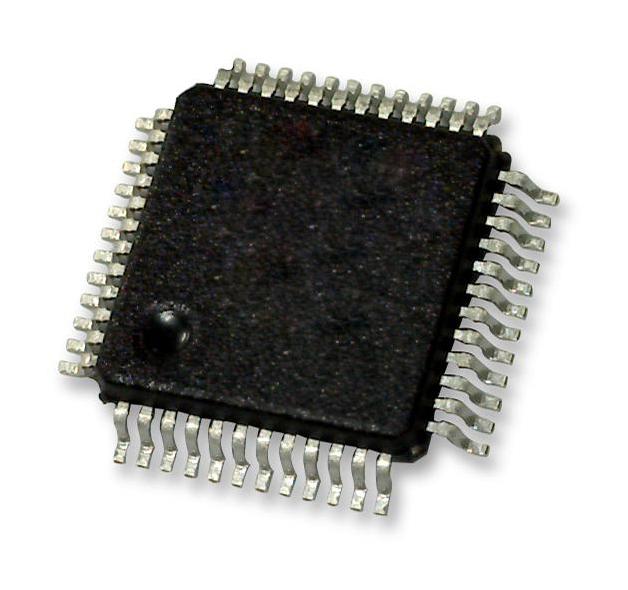

MICROCHIP KSZ8001LI Ethernet Controller, PHY Transceiver, IEEE 802.3, IEEE 802.3u, 3.135 V, 3.465 V, LQFP, 48 Pins

The KSZ8001LI is a 10Base-T/100Base-TX/100Base-FX Physical -layer Transceiver, operating the core at 1.8V to meet low voltage and low power requirements. The solution provides MII/RMII/SMII interfaces to transmit and receive data. Unique mixed-signal design extends signalling distance while reducing power consumption. HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables. Featuring LinkMD cable diagnostics, which allows detection of common cabling plant problems such as open and short circuits, the KSZ8001 represents a new level of features and performance and is an ideal choice of physical layer transceiver for 100BASE-TX/10BASET/100BASE-FX applications.

• 1.8V CMOS design, power consumption 250mW
• Robust (130m+) operation over standard cables
• LinkMD feature to determine cable length and diagnose faulty cables up 200m with ±2m accuracy
• Supports HP MDI/MDI-X auto crossover
• Supports power down mode and power saving mode
• MDC/MDIO to 12.5MHz for rapid configuration
• Programmable LED outputs for link, activity, full/half duplex, collision and speed
• On-chip built-in analog front end filtering for both 100BASE-TX and 10BASE-T

Applications

Communications & Networking
