Description

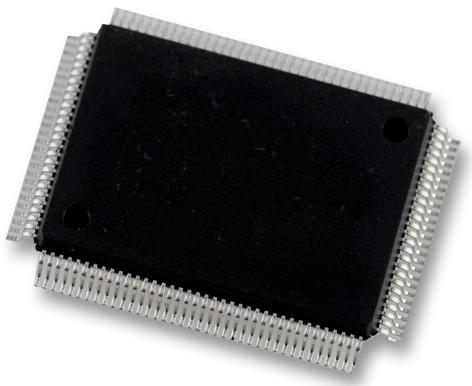

The KSZ8995MAI is an integrated 5-port 10/100 Managed Switch provides an extensive feature set such as tag/port-based VLAN, quality of service (QoS) priority and management, MIB counters, dual MII interfaces and CPU control/data interfaces to effectively address both current and emerging fast Ethernet applications. The switch contains five 10/100 transceivers with patented mixed-signal low-power technology, five media access control (MAC) units, a high-speed non-blocking switch fabric, a dedicated address lookup engine and an on-chip frame buffer memory.
- Shared memory based switch fabric with fully non-blocking configuration
- Flow control or drop packet rate limiting
- Integrated MIB counters for fully compliant statistics gathering, 34MIB counters per port
- IGMP v1/v2 snooping for multicast packet filtering
- Special tagging mode to send CPU info on ingress packets port value
- MAC-id based security lock option
- CPU read access to MAC forwarding table entries
- Optimization for fibre-to-copper media conversion
Applications
Communications & Networking, Signal Processing
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Type: Ethernet Switch |
| Supported Standards: IEEE 802.3, IEEE 802.3u |
| Supply Voltage Min: 3.15V |
| Supply Voltage Max: 3.45V |
| IC Case / Package: PQFP |
| No. of Pins: 128Pins |
| IC Mounting: Surface Mount |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Qualification: - |
| Product Range: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | KSZ8995MAI |
| Quantity | Each |
| Technical Data Sheet EN |  |
