Description

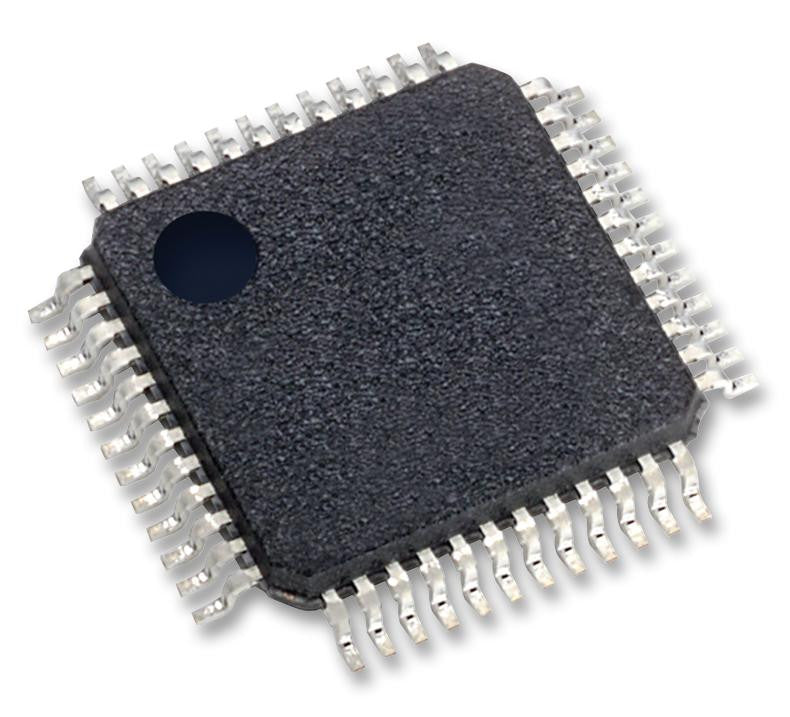

The CP2200-GQ is a single-chip Ethernet Controller containing an integrated IEEE 802.3 Ethernet media access controller (MAC), 10Base-T physical layer (PHY) and 8kB non-volatile flash memory. It can add Ethernet connectivity to any microcontroller or host processor with 11 or more port I/O pins. The 8-bit parallel interface bus supports both Intel and Motorola bus formats in multiplexed and non-multiplexed mode. The data transfer rate in non-multiplexed mode can exceed 30Mbps. The on-chip flash memory may be used to store user constants, web server content, or as general purpose nonvolatile memory. The flash is factory preprogrammed with unique 48-bit MAC address stored in the last six memory locations. Having unique MAC address stored in the CP2200/1 often removes the serialization step from the product manufacturing process of most embedded systems. It has four power modes with varying levels of functionality.
- Full/half duplex with auto-negotiation
- Automatic polarity detection and correction
- Automatic retransmission on collision
- Automatic padding and CRC generation
- Supports broadcast and multi-cast MAC addressing
- Interrupt on received packets and Wake-on-LAN
- 8192byte ISP non-volatile memory
- Power-on reset royalty-free TCP/IP stack with device drivers
- TCP/IP Stack configuration wizard
- Hardware diagnostic software and example code
Applications
Communications & Networking, Sensing & Instrumentation, Embedded Design & Development
Product details
| Controller IC Case Style | TQFP |
| Operating Temperature Min | -40�C |
| Ethernet Type | IEEE 802.3 |
| Operating Temperature Max | 85�C |
| No. of Pins | 48Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 3.1V |
| IC Interface Type | Parallel |
| Packaging | Peel Pack |
| Supply Voltage Max | 3.6V |
| Data Rate | 30Mbps |
| MSL | - |
Other details
| Brand | SILICON LABS |
| Part Number | CP2200-GQ |
| Quantity | Each |
| Technical Data Sheet EN |  |
