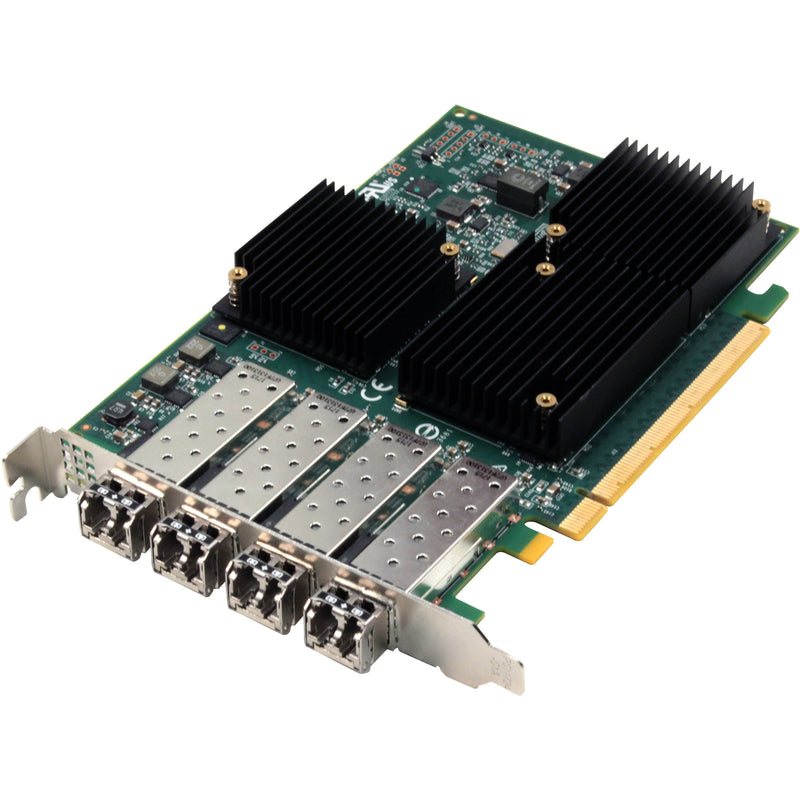

Provided by third party: The ATTO Celerity FC-324E leverages two storage technologies - x16 PCIe 3.0 interconnect and 32-Gigabit Fibre Channel to provide an advanced storage connectivity solution with high performance, intelligence and scalability. Celerity FC-324E 32Gb/s quad-channel HBAs deliver up to 12.8 GB/s in a single PCIe slot, allowing original equipment manufacturers and system integrators to design state-of-the-art data infrastructures.
Meeting tomorrow's connectivity needs today, Celerity Fibre Channel Host Bus Adapters (HBAs) increase overall Fibre Channel system performance and drive intelligence all the way to the edge of the SAN utilizing ATTO's Advanced Data Streaming (ADS) technology.
ATTO Technology FC-324E specs
| General |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x16 |
| PCI Specification Revision | PCIe 3.0 |
| Networking |
| Ports | 32Gb Fibre Channel Gen 6 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 32Gb Fibre Channel |
| Fiber Channel | FC-FS, FCP, FC-PI-6 |
| Data Transfer Rate | 12.8 Gbps |
| Status Indicators | Port status, port transmission speed |
| Features | Full duplex capability, auto-negotiation, Advanced Data Streaming (ADS), Transparent (N_Port ID Virtualization - NPIV) mode support, Fabric-Device Management Interface (FDMI), Virtual Fabric mode |
| Miscellaneous |
| Included Accessories | Full-height bracket, 4 x 32 Gb Fibre Channel SFP+ LC transceivers |
| Compliant Standards | EN55024, EN55022 Class B, RoHS, EN 60950-1, EN 60825-1, FCC Part 15 B Class A |
| Power |
| Power Consumption Operational | 24.9 Watt |
| Software / System Requirements |
| Software Included | ATTO ConfigTool |
| OS Required | Apple MacOS, Linux, FreeBSD, Microsoft Windows Server, Microsoft Windows, illumos |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
