Description

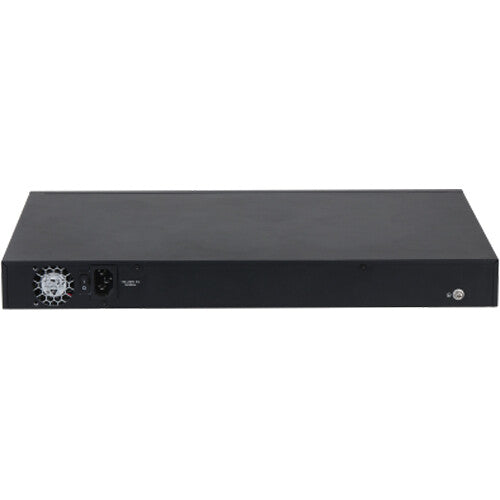

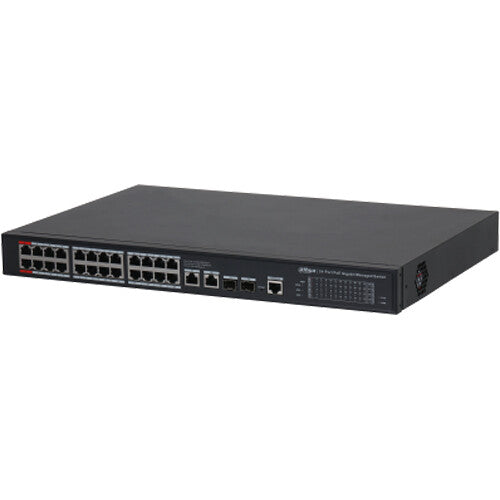

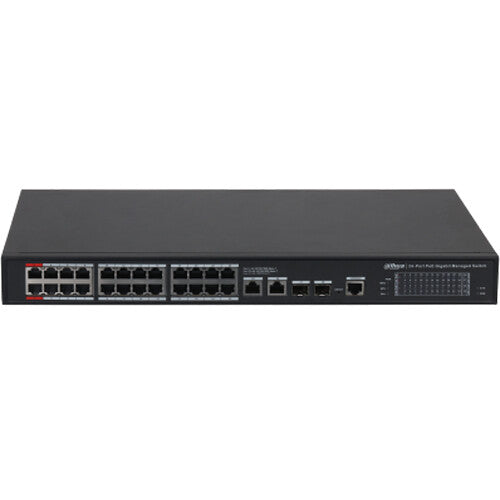

Dahua Technology S4228-24GT-360 Overview
Increase your business's capacity for advanced IP security cameras, access points, and other power-over-Ethernet compatible devices with the S4228-24GT-360 28-Port Gigabit PoE++ Compliant Managed Network Switch from Dahua Technology. This Gigabit speed managed Layer 2 desktop switch features two 90W PoE++ ports and twenty-two 30W ports, with a total budget of 360W. There are also two non-PoE RJ45 ports alongside dual SFP fiber uplink slots.
Supporting a 56 Gb/s switching capacity and 41.664 Mpps forwarding rate, this switch delivers smooth and reliable data transfers. Built-in fans help to ensure optimal performance.
Extend Mode
Enabling extend mode with the compatible ports allows you to transfer power across distances of up to 820.2 feet at 10 Mb/s data speeds.
UPC: 810053978665
In the Box
- Dahua Technology S4228-24GT-360 28-Port Gigabit PoE++ Compliant Managed Network Switch
- Power Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
Dahua Technology S4228-24GT-360Specs
Key Specs
| Inputs/Outputs |
2x RJ45 Gigabit Ethernet PoE++ (60 W, 802.3bt Type 3)
22x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 2x RJ45 Gigabit Ethernet 2x SFP Gigabit Ethernet 1x RJ45 |
| Stackable |
No
|
| Switching Bandwidth |
56 Gb/s
|
| PoE Power Budget |
360 W
|
| Stackable |
No
|
Protocols
| Layer Services Supported |
Layer 2
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IGMP Snooping Link Aggregation |
| Jumbo Frames Support |
10,000 Bytes
|
| MAC Address Table Size |
8K
|
Performance
| Forwarding Rate |
41.66 Mpps
|
| Switching Bandwidth |
56 Gb/s
|
| Packet Buffer |
4.1 Mb
|
Electrical
| PoE per Port |
30 to 90 W
|
| PoE Power Budget |
360 W
|
| Power Draw |
360.00 W (Max)
20.00 W (Idle) |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Supply Type |
Internal
|
General
| Certifications |
CE, FCC
|
| Operating Conditions |
14 to 131°F / -10 to 55°C at 5 to 95% Humidity
|
| Cooling System |
Fan
|
| Mean Time Between Failures (MTBF) |
0.4 Million Hours
|
| Indicator Lights |
Yes
|
| Rack Mountable |
No
|
| Dimensions |
17.3 x 11.8 x 1.7" / 440 x 300 x 44 mm
|
| Weight |
7.5 lb / 3.4 kg
|
Packaging Info
| Package Weight |
10.125 lb
|
| Box Dimensions (LxWxH) |
20.8 x 16.7 x 4.3"
|
