Description
- Easy Terminations with Reduced Scrap
- Designed for Telephone & Security Wires
- Solid and Stranded Wire Compatible

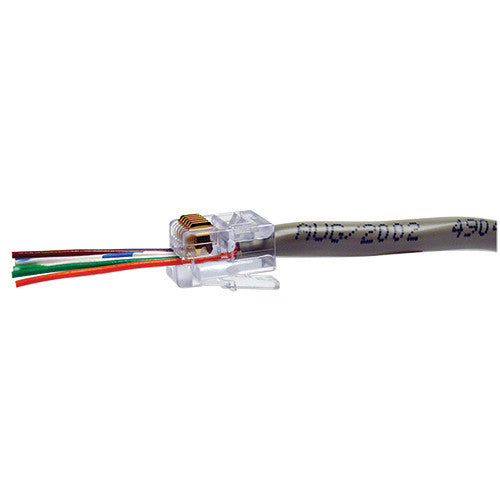

The Platinum Tools EZ-RJ12/11 Connector with Standard Tab , available in a jar of 100, lets you terminate your solid and stranded wires so you can create RJ12 or RJ11 cables for telephone and security installations. To simplify twisted-pair terminations, each connector features an EZ pass-through design that allows you to insert the wire through the connector and out the front. This design also enables you to verify the proper wiring order before you crimp.
- Fast, easy terminations with reduced scrap
- Modular plug with six connectors
- For conductors with maximum O.D. of 0.038"
- Uses 0.014" contact
- Designed for round cables
- 24 to 26 AWG capacity
- Works on solid or stranded wire
- FCC and RoHS compliant
- UL rated
UPC: 849160000501
In the Box
Platinum Tools EZ-RJ12/11 Connector with Standard Tab (Jar, 100-Pieces)
- Limited 1-Year Warranty
| Wire Gauge Capacity | 24 to 26 AWG |
| Contact Material | Phosphor bronze 0.014" / 0.04 cm |
| Contact Plating | 50 microinch selective 24K hard gold in contact area over 100 microinch minimum nickel plate |
| Plug Material | Polycarbonate |
| Operation Temperature | -40 to 158°F / -40 to 70°C |
| Flame Auto Extinguish | 94-VO |
| Insertion / Extraction | 1000 cycles |
| Contact Resistance | 10 milliohms maximum |
| Voltage | 30 VAC / 42 VDC |
| Current | 1.5 A |
| Packaging Info | |
|---|---|
| Package Weight | 0.3 lb |
| Box Dimensions (LxWxH) | 3.5 x 3.0 x 3.0" |
