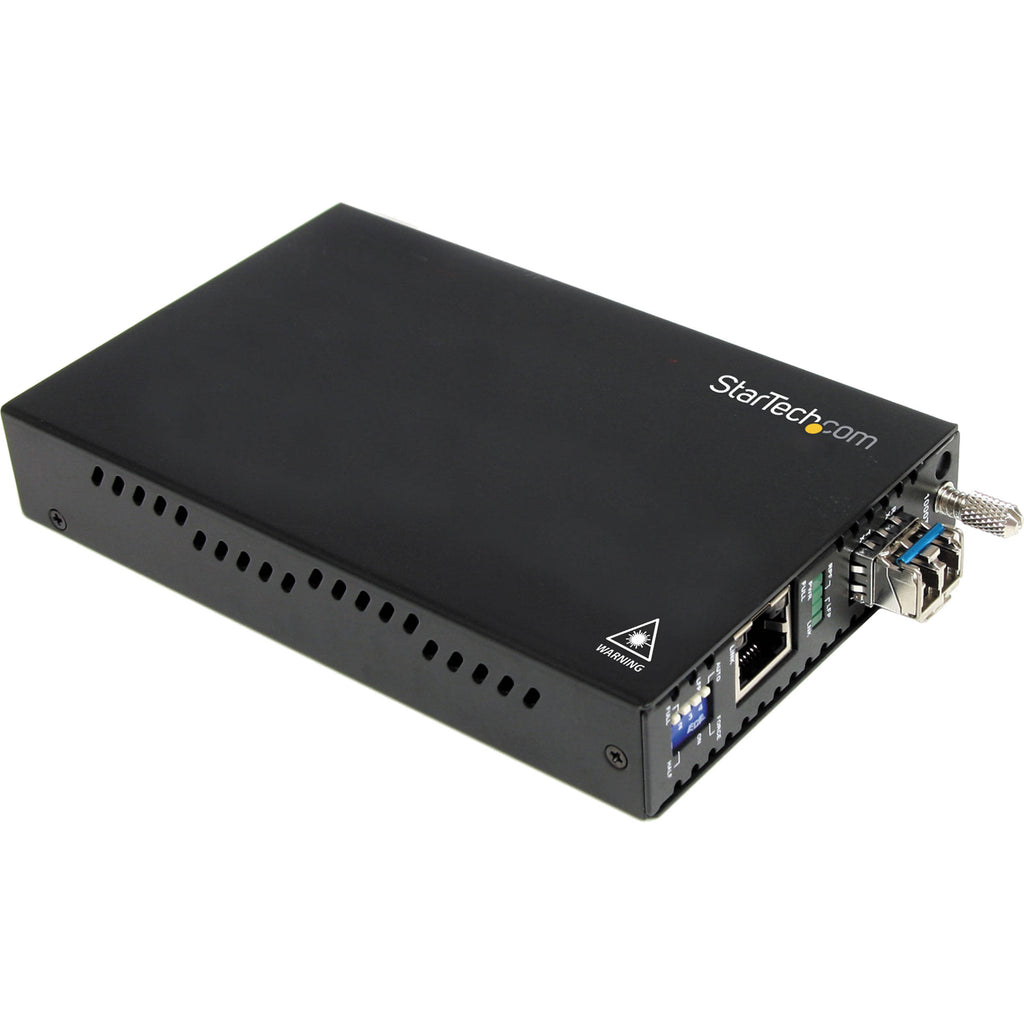

The black 1000 Mb/s Gigabit Multi-Mode Fiber Media Converter from StarTech lets you extend a Gigabit Ethernet network over multi-mode fiber at distances up to 1,804' (550m).
Used for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a 1000Base-LC fiber backbone, this converter supports full Gigabit speeds for�reliable network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, it features an all-steel chassis and simple plug-and-play installation wherein minimal configuration is required.

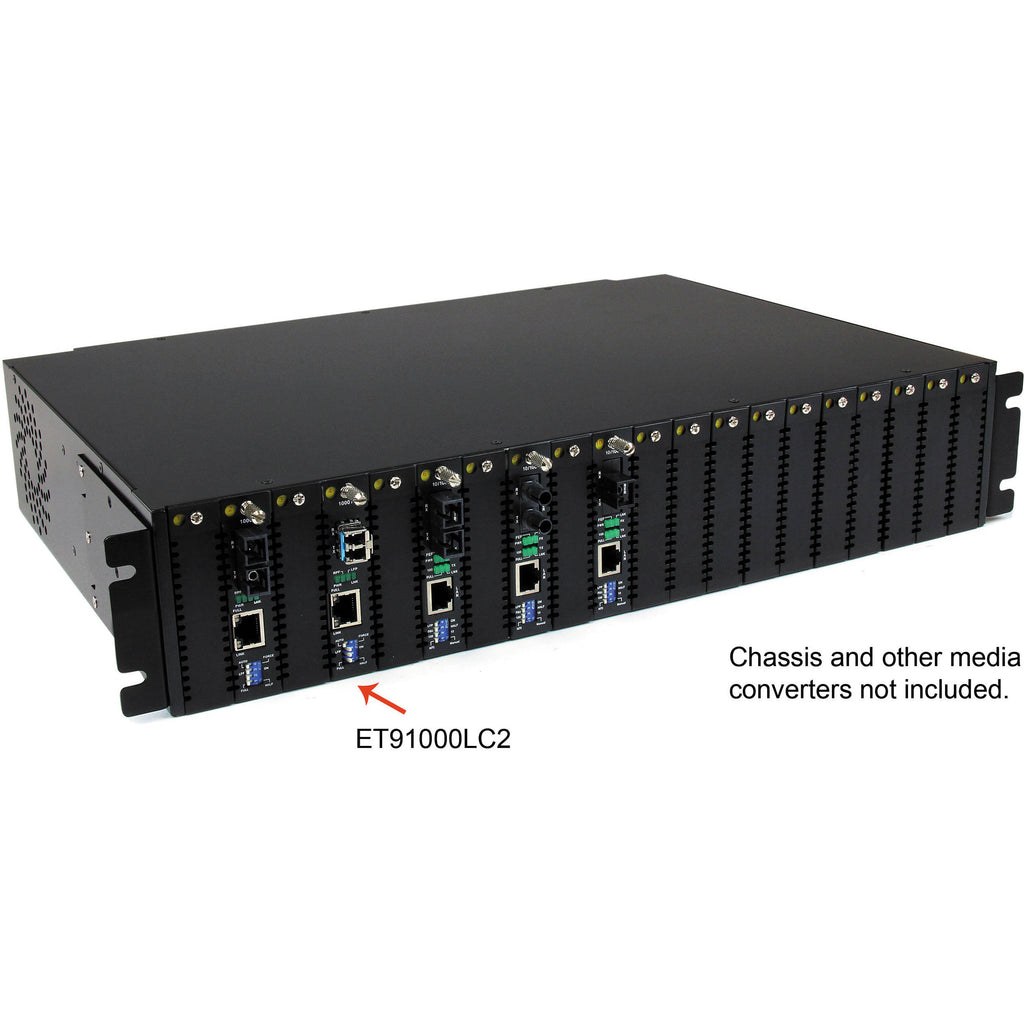

For added versatility, this fiber media converter supports standalone operation or installation into�the ETCHS2U�20-slot, 2U rackmount chassis, as well as a replaceable SFP slot.
- Supports standalone operation or installation into the ETCHS2U rackmount chassis
- Extends/bridges networks using fiber cabling
- Link loss forwarding, remote status monitoring, 2 frame lengths
- Maximum fiber cable length of (1,804') 550m
- Supports full or half-duplex operation
- Easy to use and install
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Used for secure connections required by government agencies where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over multi mode fiber cable
- Auto MDIX
UPC: 065030846226

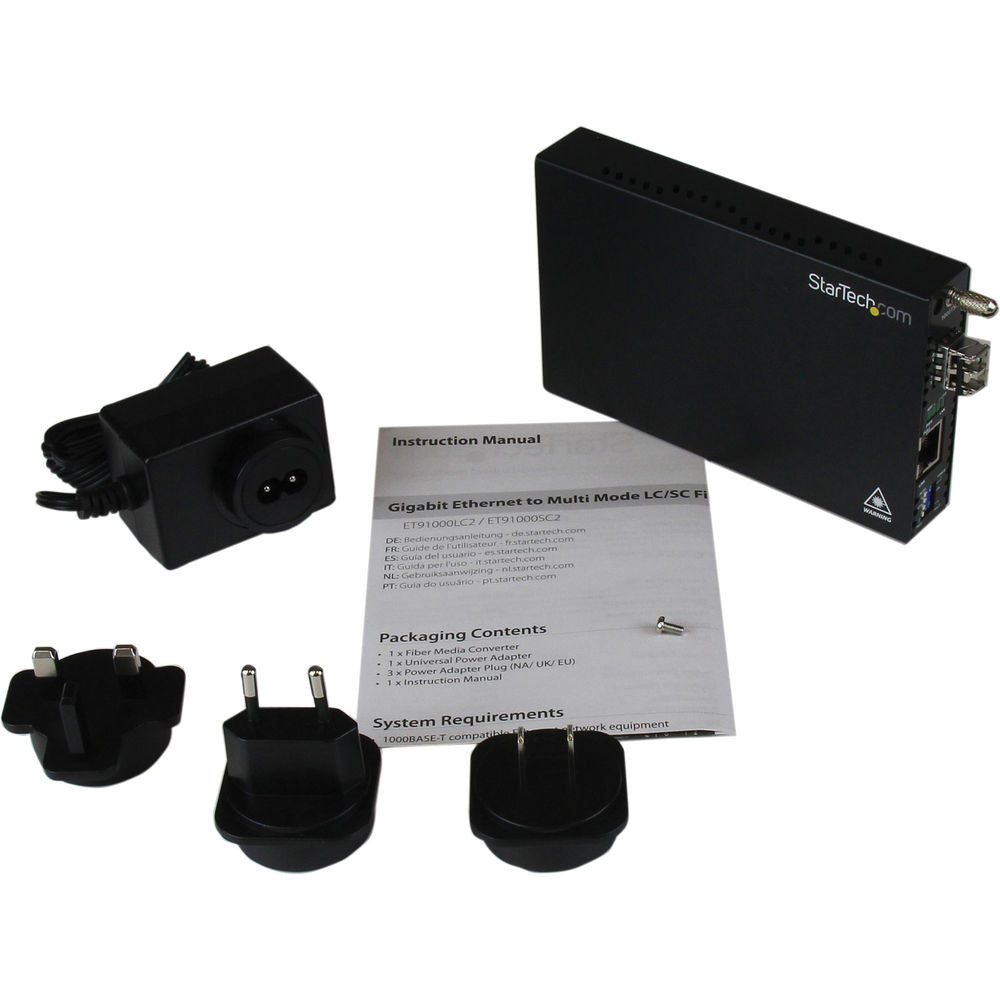

In the Box
StarTech 1000 Mb/s Gigabit Multi-Mode Fiber Media Converter (LC Connector, Black)
- Universal Power Adapter
- 3 x Power Adapter Plug (NA/ UK/ EU)
- Limited 2-Year Warranty
| Ports | 1 x RJ45
1 x LC |
| Wavelength | 850�nm |
| Maximum Networking Distance | 1804' / 550 m |
| Maximum Data Rate | 2�Gbps |
| Mode | Multi-Mode |
| Operating Mode | Half Duplex, Full Duplex |
| Plug Type | M |
| Power Consumption | 4�W |
| AC Input Power | 115 - 230�VAC, 50 / 60�Hz |
| DC Input Power | 12�VDC, 1�A |
| Center Tip Polarity | Positive |
| Material | Metal |
| Operating Temperature | 32 to 140�F / 0 to 60�C |
| Operating Humidity | 16 to 90% |
| Storage Temperature | 14 to 158�F / -10 to 70�C |
| Dimensions (L x W x H) | 6.3 x 3.7 x 0.8" / 160.0 x 94.0 x 20.3 mm |
| Weight | 21.2 oz / 601 g |
| Packaging Info |
| Package Weight | 1.8 lb |
| Box Dimensions (LxWxH) | 9.1 x 7.4 x 3.0" |
