Description

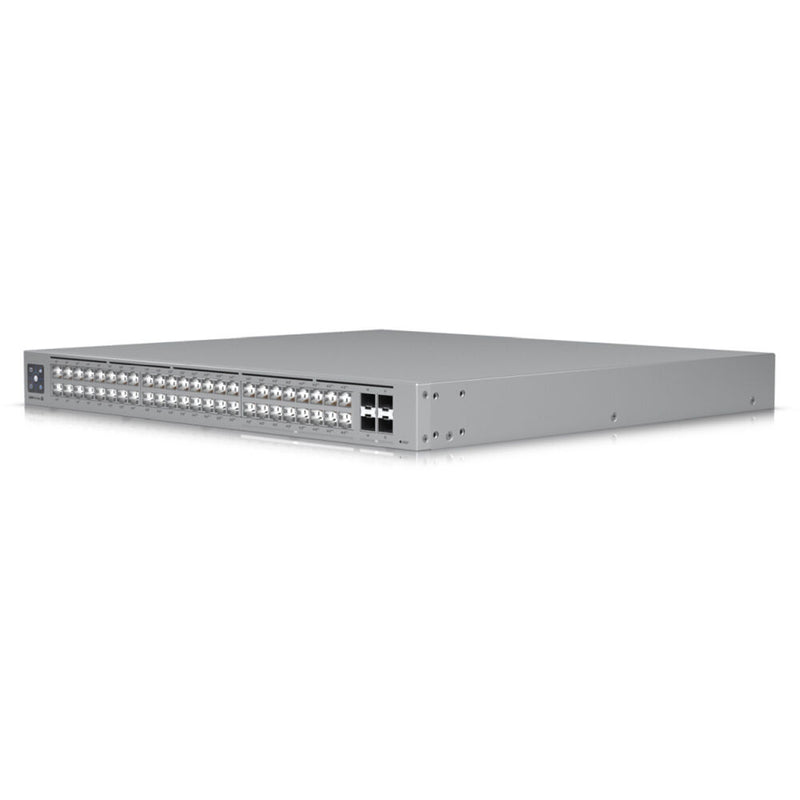

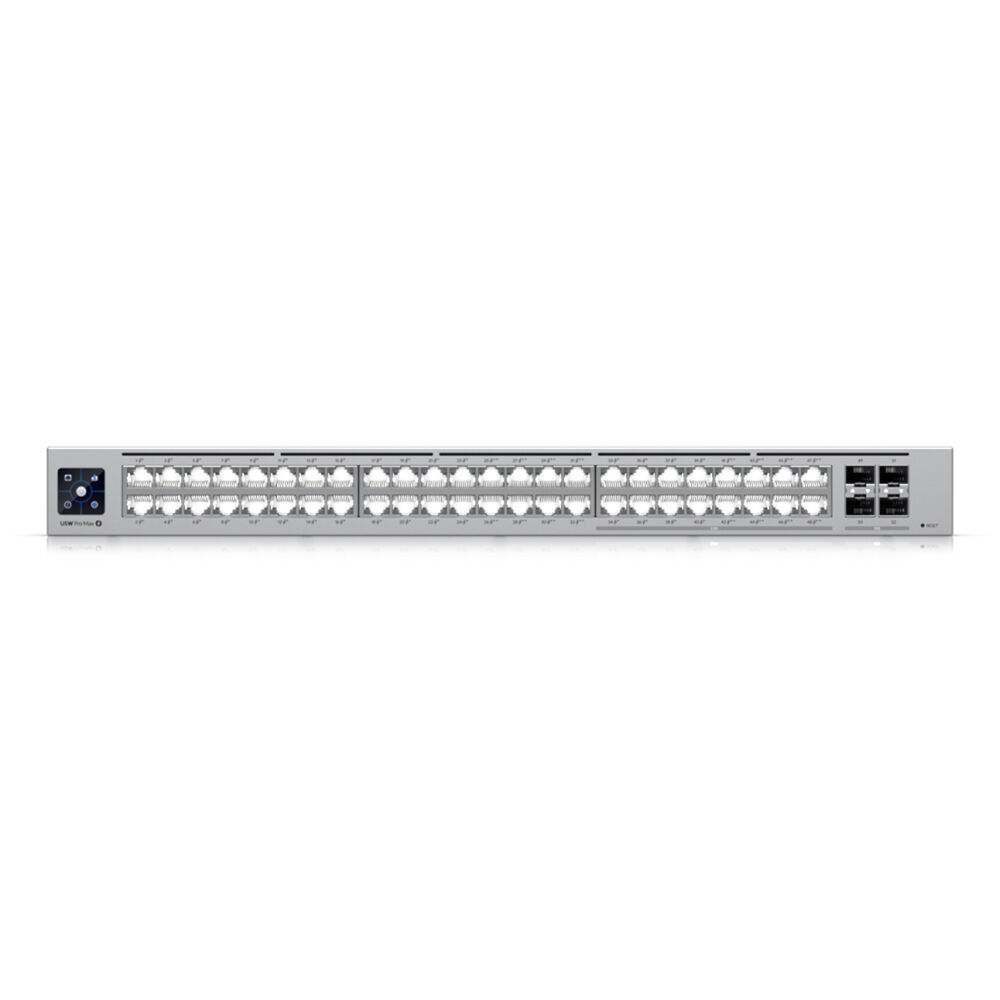

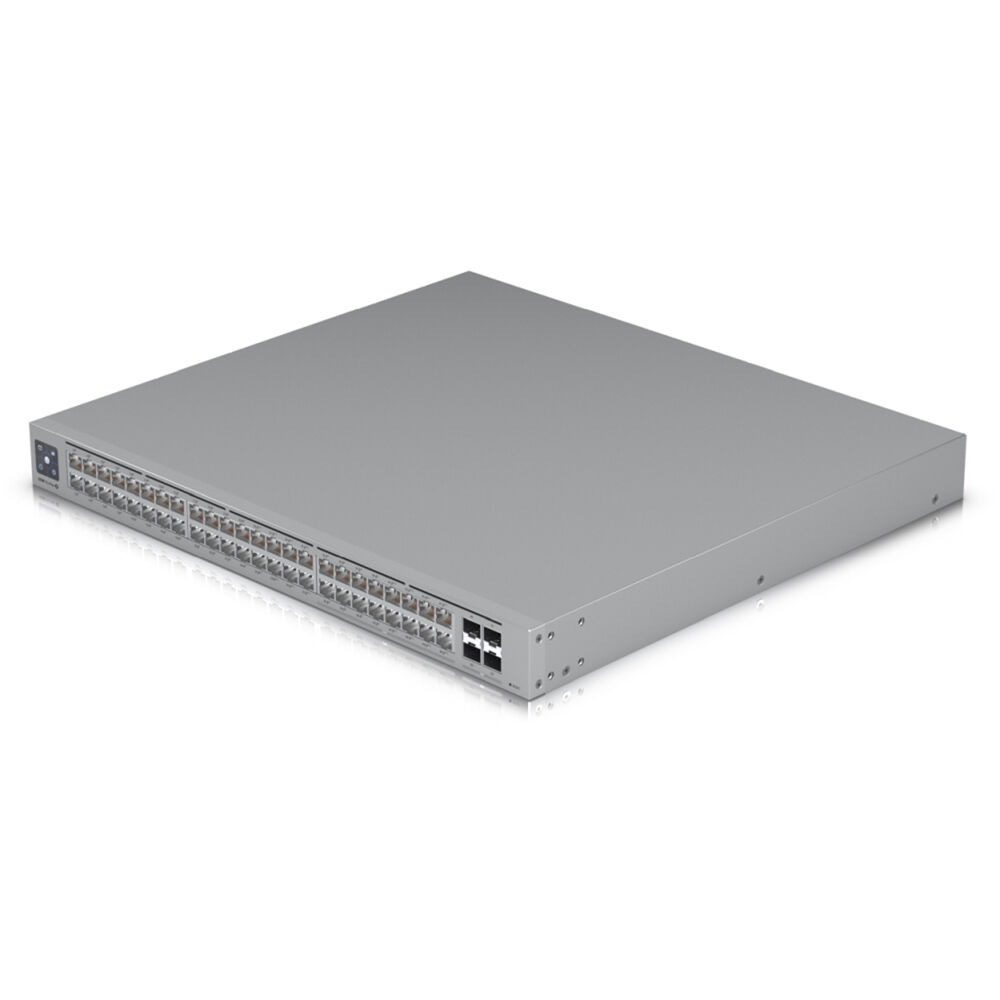

Ubiquiti Networks USW-PRO-MAX-48-POE Overview

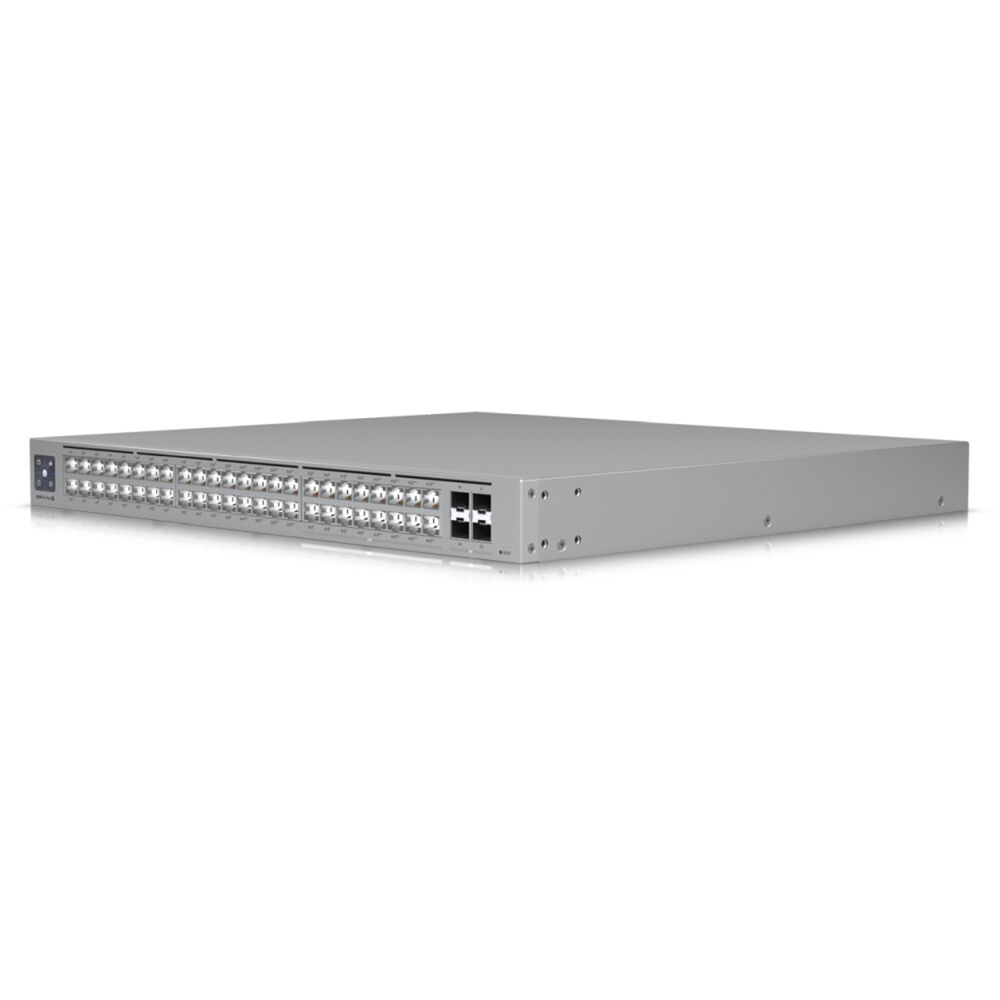

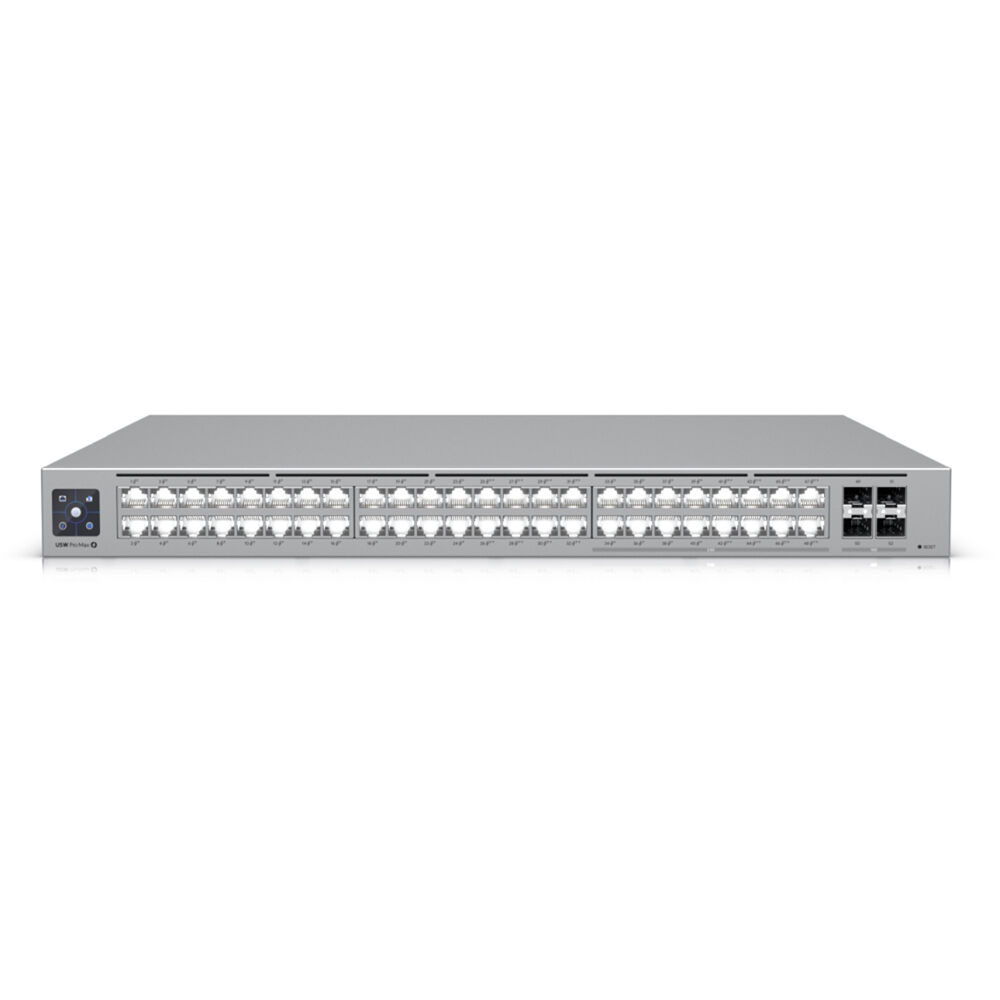

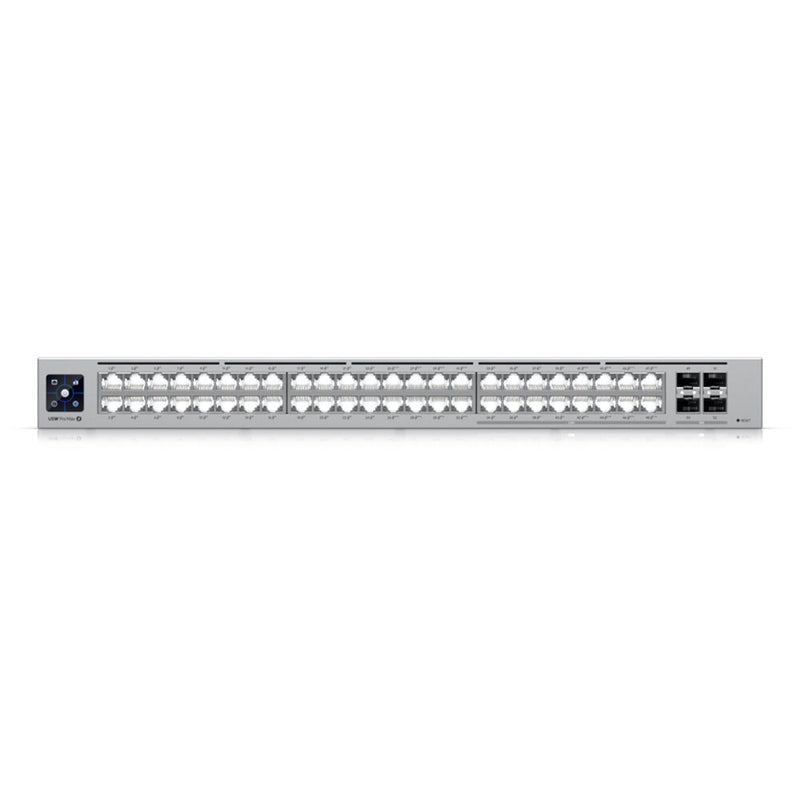

Expand your business's network with the Pro Max 48 PoE 48-Port 2.5G / 1G Managed Network Switch from Ubiquiti Networks to support advanced IP cameras, access points, and other PoE compatible devices. Sixteen 2.5G Ethernet ports, comprised of eight 60W PoE++ ports and eight 30W ports, are available. Alongside them are eight Gigabit speed 60W Ethernet ports and 24 30W ports with a total power budget of 720W for compatible equipment. Four SFP+ ports are also available for up to 10 Gb/s uplinks.
Etherlighting technology illuminates each port to indicate the port location, speed/link status, and native VLAN/network configurations when used with compatible cables. A 1.3" touchscreen display provides important status information at a glance. Supporting a 224 Gb/s (112 Gb/s non-blocking) switching capacity and Layer 3 features, the Pro Max 48 PoE delivers smooth data transfers. Its settings may be managed through the UniFi Network platform.
In the Box
- Ubiquiti Networks Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch
- Power Cable
- Rackmount Kit
- Display Cover
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Ubiquiti Networks USW-PRO-MAX-48-POESpecs
| Inputs/Outputs |
8x RJ45 2.5 GbE PoE++ (60 W, 802.3bt Type 3)
8x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 8x RJ45 Gigabit Ethernet PoE++ (60 W, 802.3bt Type 3) 24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 4x SFP+ 10 GbE |
| Stackable |
No
|
| Switching Bandwidth |
224 Gb/s
112 Gb/s (Non-Blocking) |
| PoE Power Budget |
720 W
|
| Stackable |
No
|
| Layer Services Supported |
Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
|
| Switching Bandwidth |
224 Gb/s
112 Gb/s (Non-Blocking) |
| PoE per Port |
30 to 60 W
|
| PoE Power Budget |
720 W
|
| Power Draw |
100.00 W (Max)
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Supply Type |
Internal
|
| Certifications |
CE, FCC, IC
|
| Operating Conditions |
23 to 104°F / -5 to 40°C at 10 to 90% Humidity
|
| Material of Construction |
Steel
|
| Indicator Lights |
Yes
|
| Rack Mountable |
Yes 1 RU
|
| Dimensions |
17.4 x 15.7 x 1.7" / 442.4 x 400 x 44 mm
|
| Weight |
13.7 lb / 6.2 kg
|
| Package Weight |
17.775 lb
|
| Box Dimensions (LxWxH) |
21.7 x 20.2 x 5.8"
|
