Description
Armasight Collector Overview
Collector 320
The Collector / Armasight USA

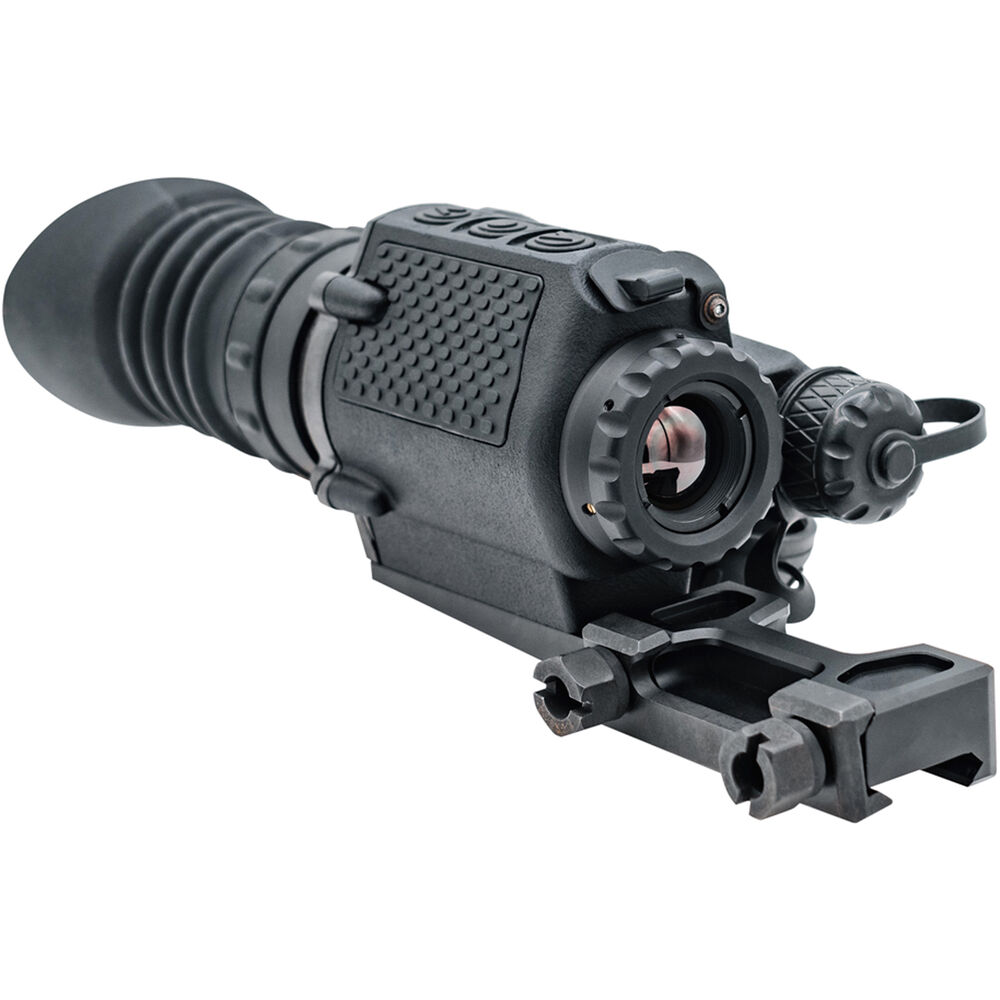

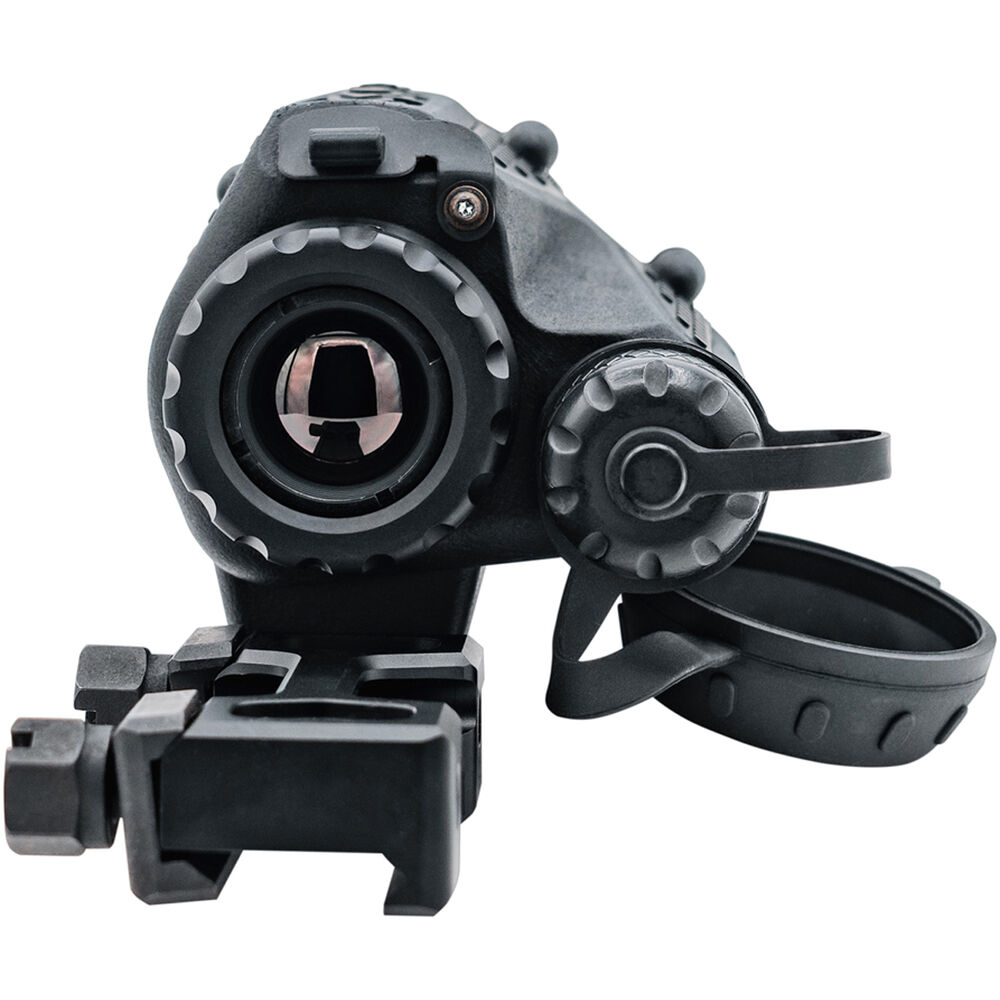

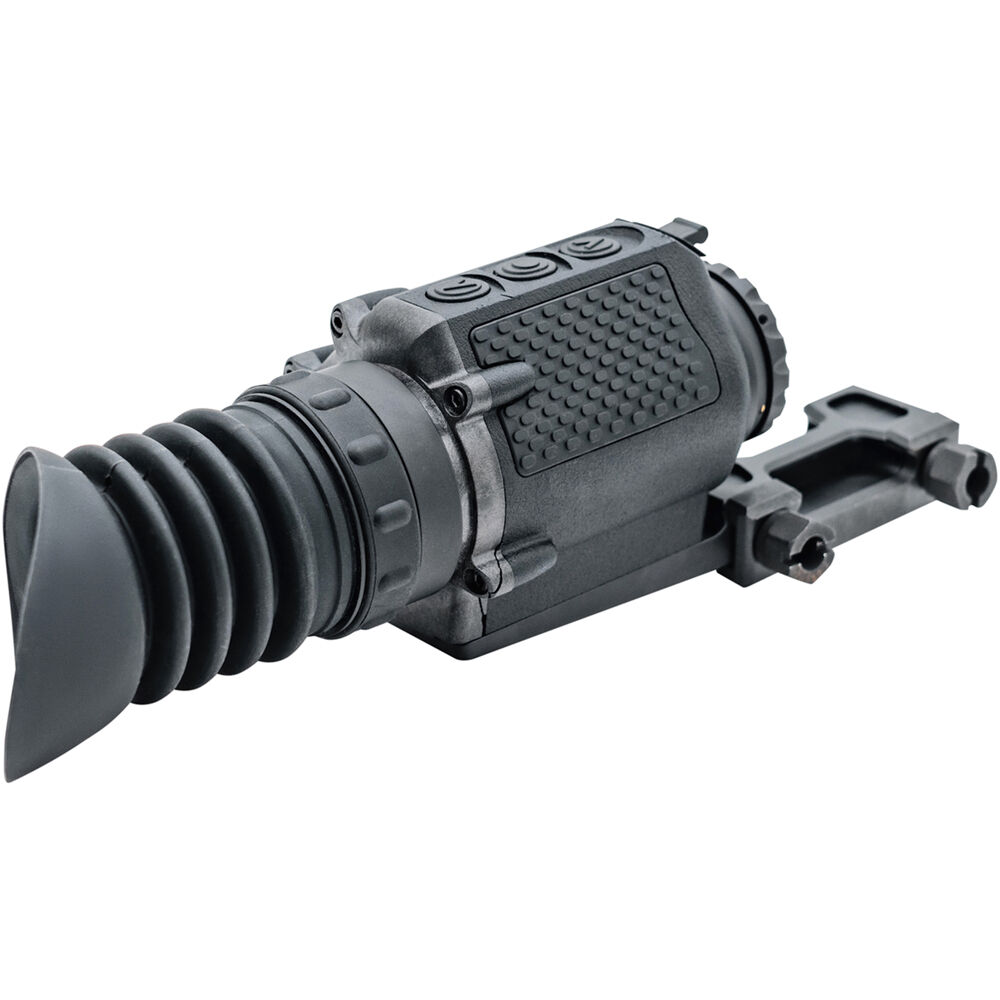

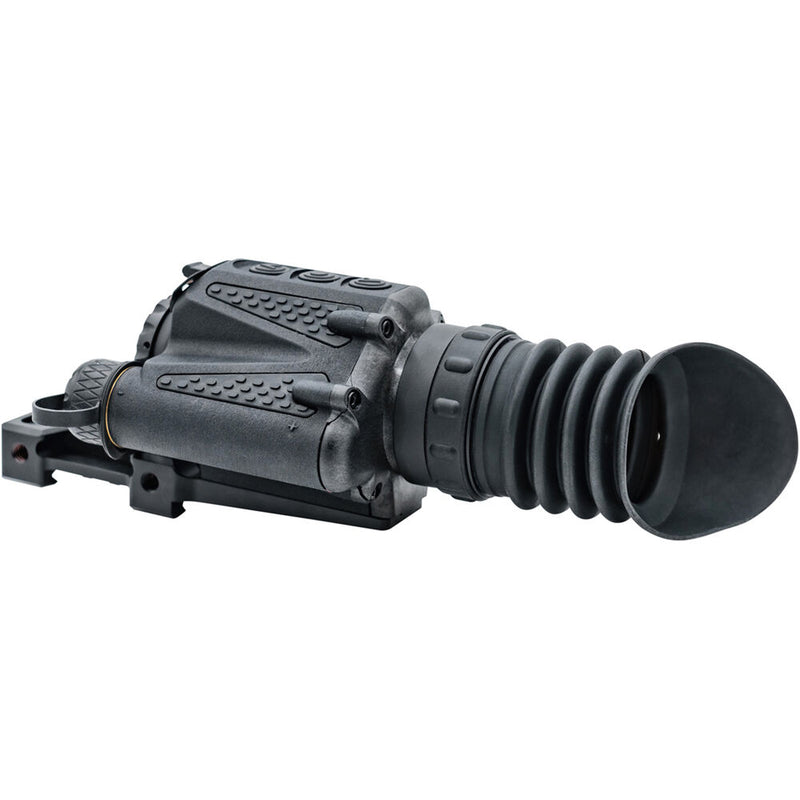

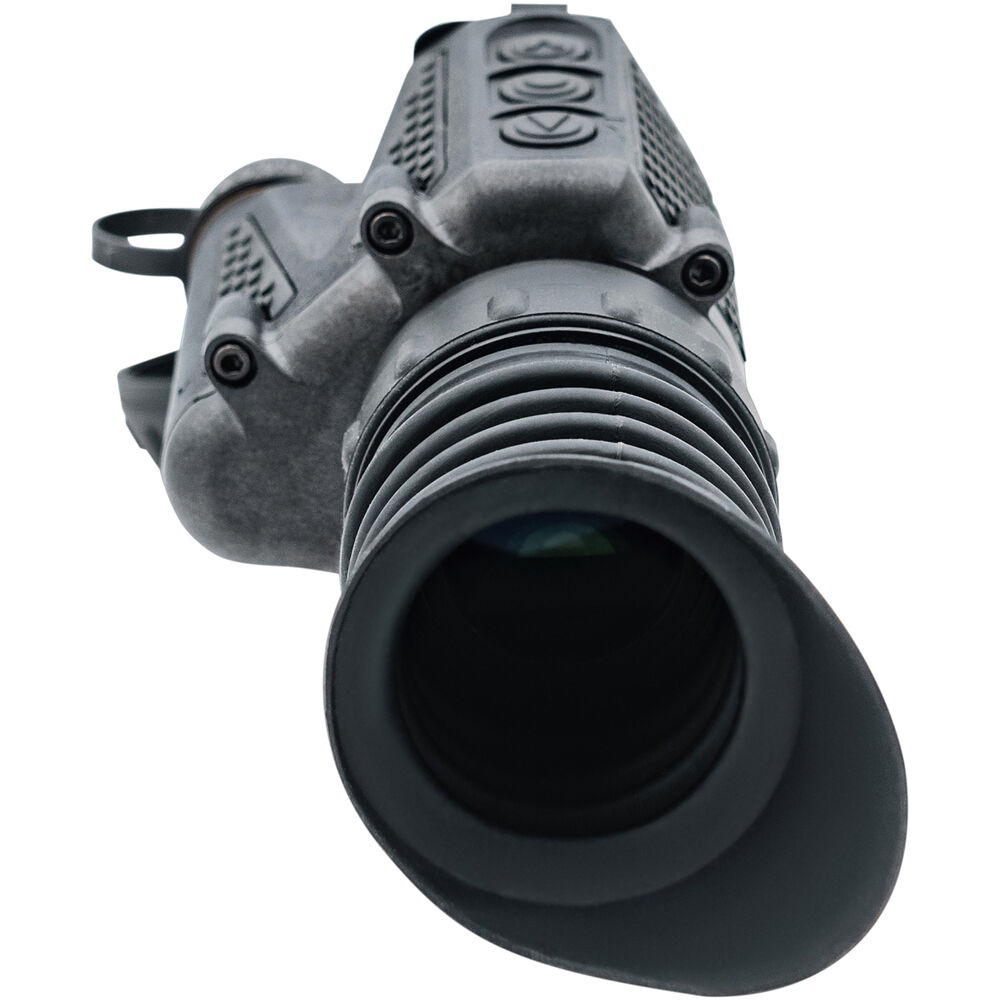

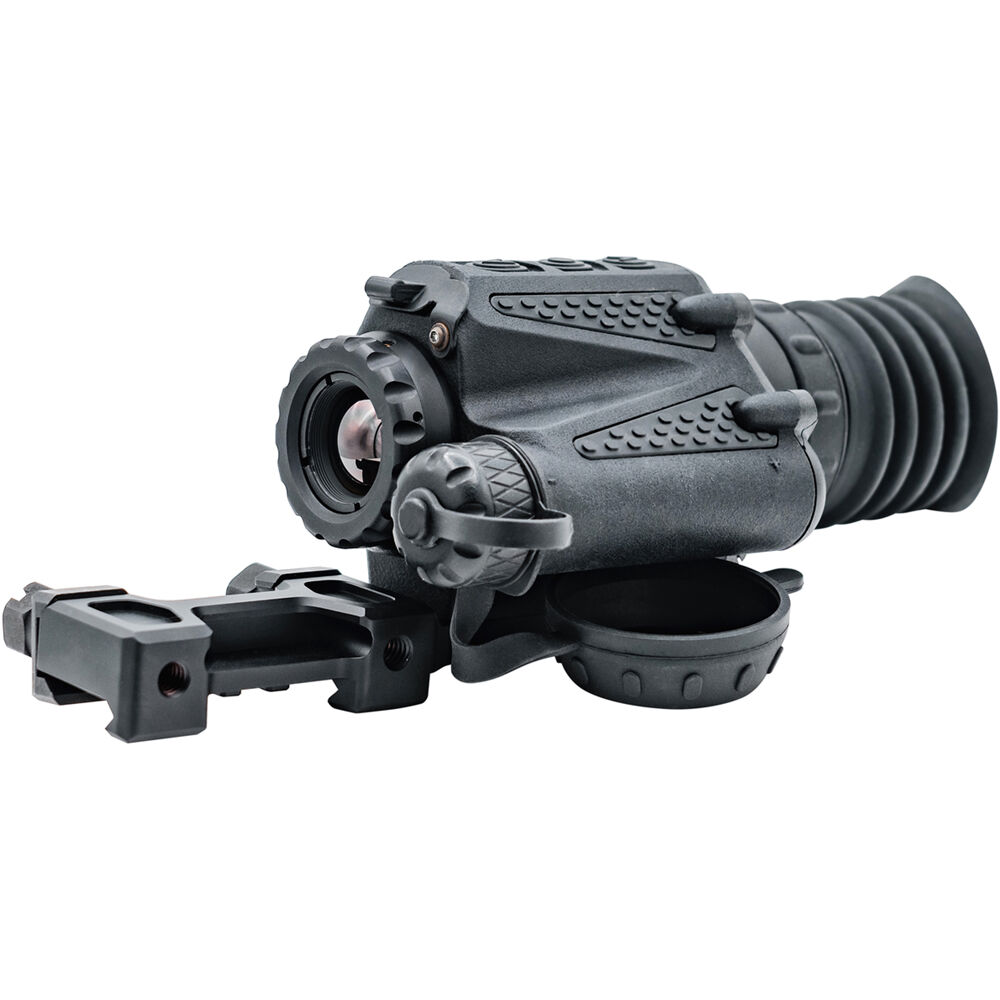

Designed for use with everything from AR-platform rifles to airguns and crossbows, the Collector 320 1.5-6x19 Compact Thermal Weapon Sight from Armasight reveals what's concealed in the dark. Its 320 x 240 thermal sensor with sub-40mK NETD delivers clear, high-contrast imagery in multiple color palettes on an OLED display, with the ability to capture and save photos or video and export them via USB-C. You can choose from eight reticles or turn the reticle off, and the impact point corrects at 1/2 MOA per click. The Collector 320 runs on two CR123A batteries or one 16650 rechargeable and mounts on Picatinny rails.
- Intuitive 3-button control panel
- Choose from multiple color palettes and eight reticles
- 1.5x optical magnification, 1-4x digital
- 1/2 MOA impact point correction
- Rated for 5.56mm recoil
- Capture video and photos
- XGA 1024 x 768 OLED display
- USB-C interface for uploading photos and video
- Inclinometer and angle cosine indicator
- Ultem composite body
- IP67 waterproof
UPC: 810081911696
Items Included
- Armasight Collector 320 1.5-6x19 Compact Thermal Weapon Sight (60Hz)
- Quick Detach Mount
- Thermal Zeroing Target
- USB-C Cable
- USB Cable
- 2 x CR123A Battery
- Lens Cloth
- Soft Carry Case
Additional Resources
No additional resources available
Armasight Collector Specs
Key Specs
| Sensor Size |
320 x 240
|
| Display |
1024 x 768
|
| Magnification |
Optical: 1.5x
Digital: 1 to 4x |
| Inputs/Outputs |
1x USB-C
|
| Battery |
2x CR123A or
1x 16650 |
General
| Sensor Size |
320 x 240
|
| Display |
1024 x 768
|
| Refresh Rate |
60 Hz
|
| Pixel Size |
12 µm
|
| Thermal Sensitivity |
<40 mK
|
| Built-In Mic |
No
|
Performance
| Magnification |
Optical: 1.5x
Digital: 1 to 4x |
| Objective Lens Diameter |
19 mm
|
| Angle of View |
18.18 x 13.73°
|
| Eye Relief |
45 mm
|
| Number of Reticle Patterns |
8
|
| Diopter Adjustment |
-5 to +5
|
Connectivity
| Inputs/Outputs |
1x USB-C
|
| GPS |
No
|
Physical
| Mounting |
Picatinny
|
| Battery |
2x CR123A or
1x 16650 |
| Operating Conditions |
-40 to 122°F / -40 to 50°C
|
| Environmental Resistance |
Dust/Water-Resistant (IP67)
|
| Dimensions |
6.7 x 2.7 x 2.4" / 170.2 x 68.6 x 61 mm
|
| Weight |
15.9 oz / 450 g
|
Packaging Info
| Package Weight |
2.015 lb
|
| Box Dimensions (LxWxH) |
10.5 x 6.3 x 4.3"
|
