Description
Armasight Jockey 320 Overview
Jockey 320 19mm
The Jockey / Armasight USA

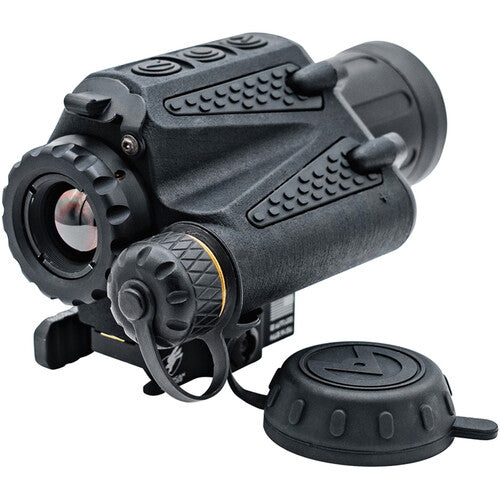

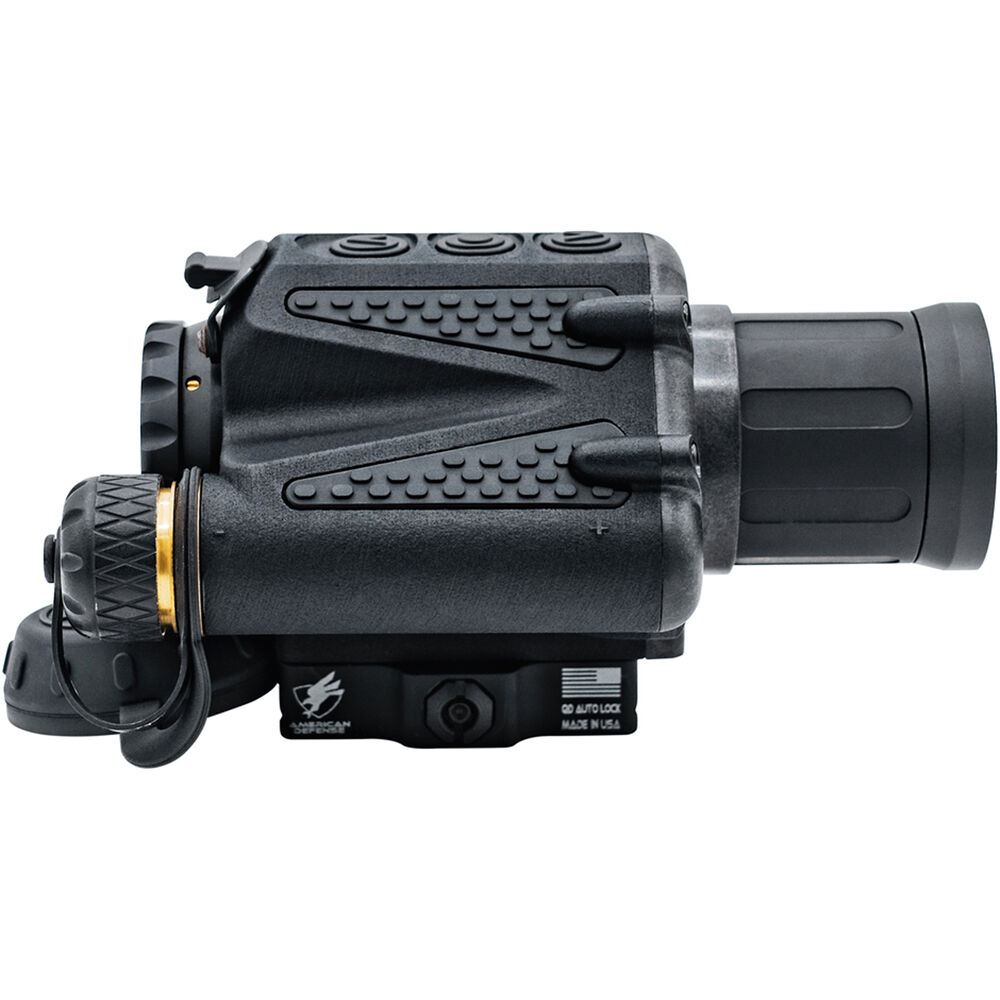

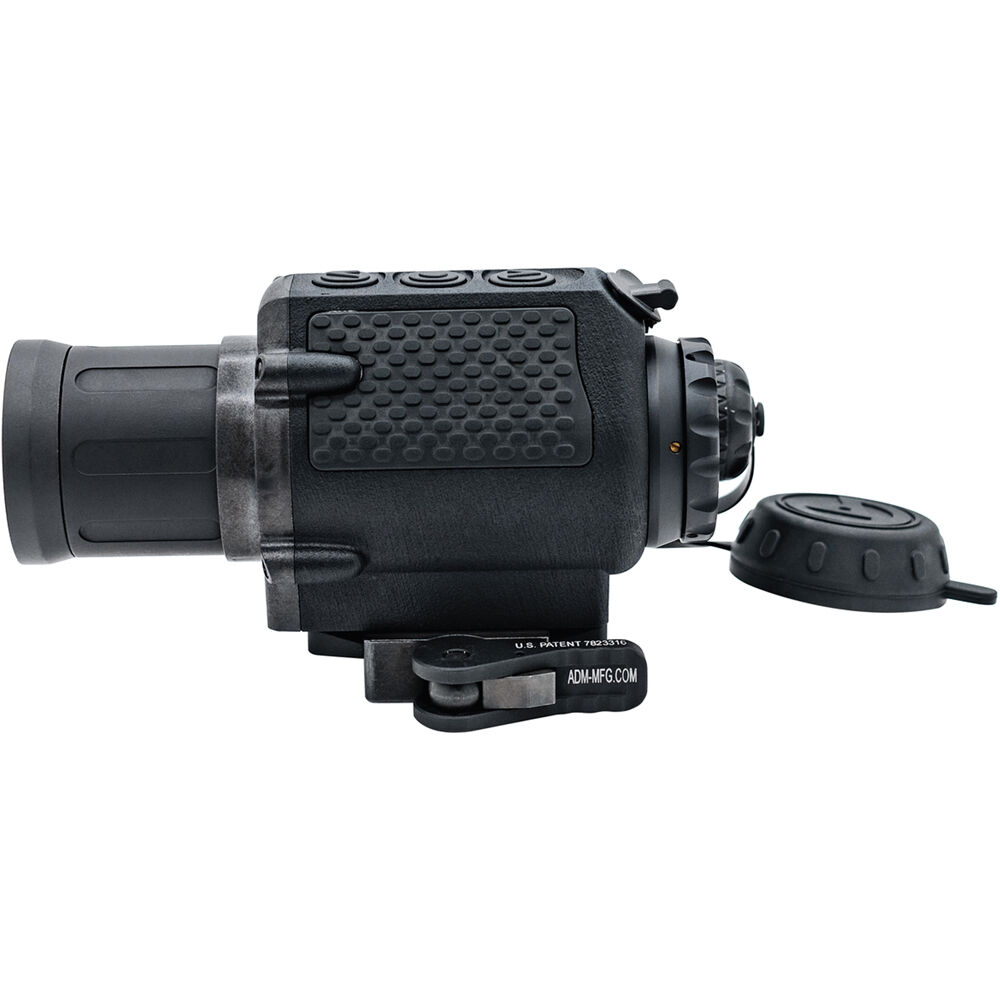

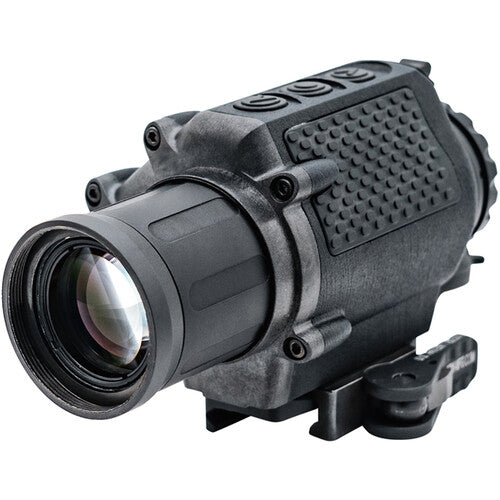

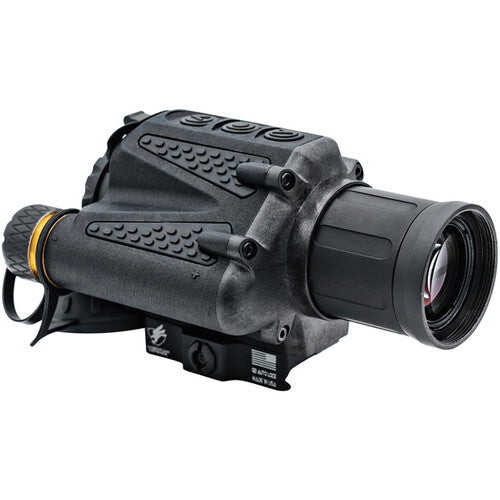

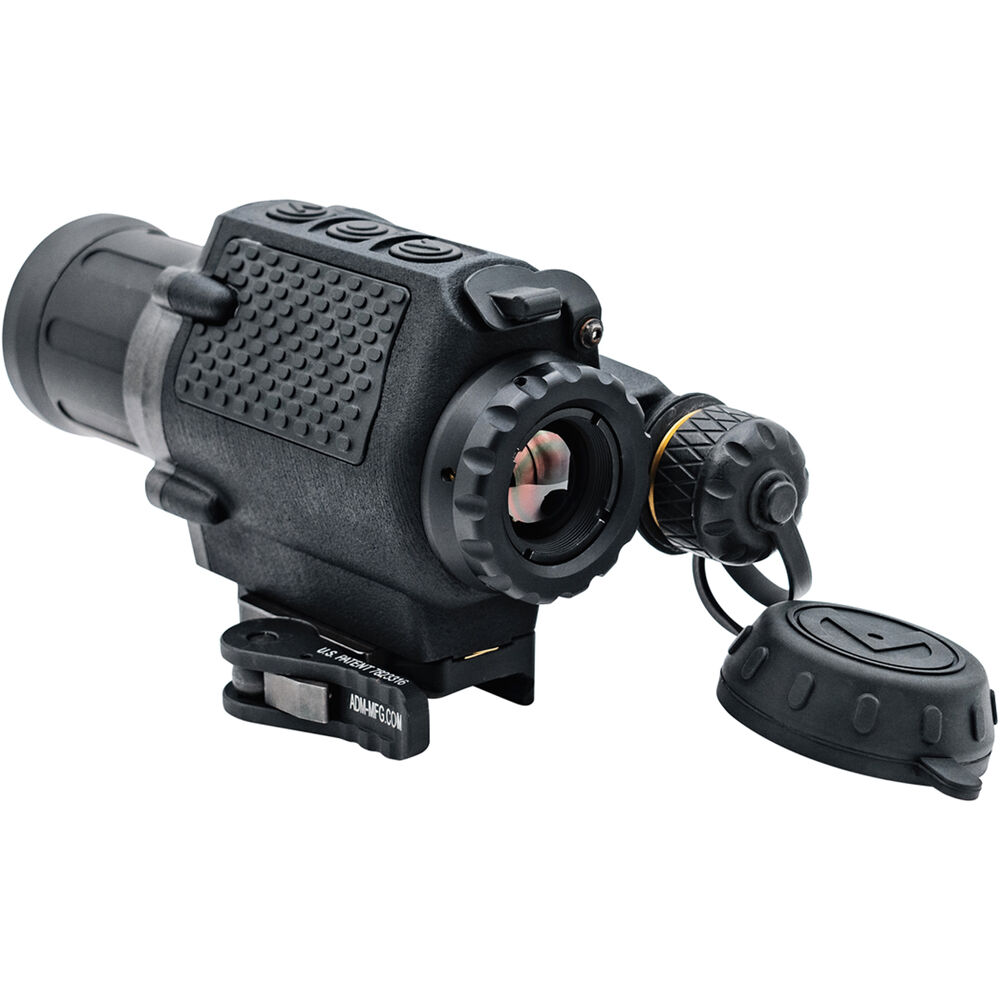

The Jockey 320 Compact Thermal Clip-On from Armasight mounts in front of any 1-6x daytime riflescope and enables it to be used as a night vision device. Its 320 x 240 thermal detector can detect human-sized heat signatures up to 774 yards away, displaying imagery on a 1024 x 768 OLED monitor and capturing video and photos. Suitable for AR platform or rimfire rfiles, airguns, and crossbows, the Jockey offers multiple color palettes, simple three-button control, and four hours of runtime on two CR123A batteries. It comes with a quick-detach mount for your rifle's rail.
Note:
Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security.
- Multiple color palettes
- Intuitive 3-button controls
- Reticle for digital zoom
- 4 hours runtime at 68°F on 2 CR123A batteries
- Simple alignment for digital zoom capabilities
- Quick detach mount
- Video recording and image capture
- Uploads video and images via USB-C
- Battery status indicator
- Ultem plastic body
UPC: 810081911689
In the Box
- Armasight Jockey 320 Compact Thermal Clip-On (60Hz)
- Quick Detach Mount
- USB-C Cable
- Light Suppressor
- Thermal Zeroing Target
- 2 x CR123A Battery
- USB Cable
- Lens Cloth
- Soft Case
- Limited 3-Year Manufacturer Warranty (with Registration)
Additional Resources
No additional resources available
Armasight Jockey 320Specs
Key Specs
| Sensor Size |
320 x 240
|
| Display |
1024 x 768 OLED
|
| Magnification |
Optical: 1x
Digital: 1 to 4x |
| Inputs/Outputs |
1x USB-C
|
| Battery |
2x CR123A
|
General
| Sensor Size |
320 x 240
|
| Display |
1024 x 768 OLED
|
| Refresh Rate |
60 Hz
|
| Pixel Size |
12 µm
|
| Thermal Sensitivity |
<40 mK
|
| Detection Range |
774.6 yd / 708 m
|
| Built-In Mic |
No
|
Performance
| Magnification |
Optical: 1x
Digital: 1 to 4x |
| Lens System |
19 mm, f/1.0
|
| Angle of View |
11.58 x 8.69°
|
Connectivity
| Inputs/Outputs |
1x USB-C
|
| GPS |
No
|
Physical
| Mounting |
Yes
|
| Battery |
2x CR123A
|
| Operating Conditions |
-40 to 122°F / -40 to 50°C
|
| Environmental Resistance |
Dust/Water-Resistant (IP67)
|
| Dimensions |
6.8 x 2.7 x 2.4" / 17.3 x 6.9 x 6.1 cm
|
| Weight |
12.8 oz / 362 g
|
