Description
FeelWorld S10 Overview

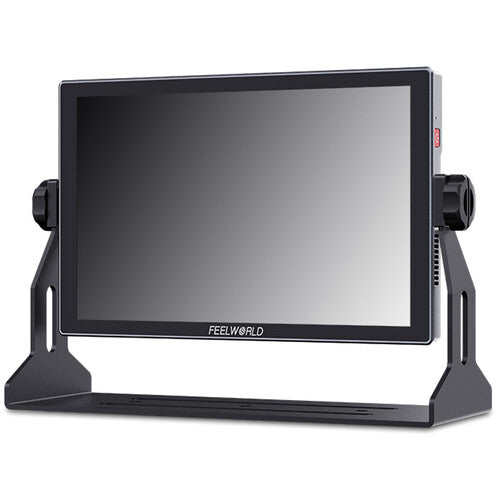

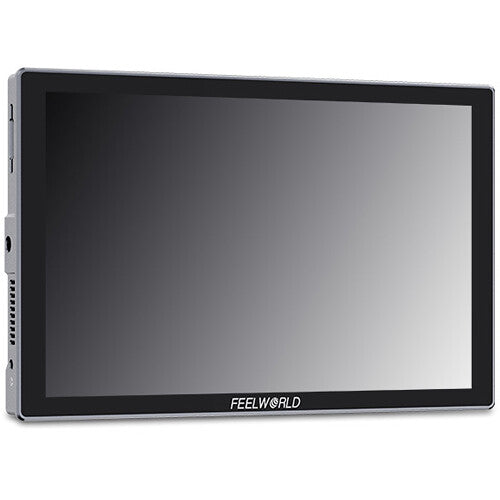

The S10 10.1" 12G-SDI/HDMI Touchscreen Monitor from FeelWorld provides both an on-camera or field monitoring solution for your production needs thanks to its 1920 x 1200 native resolution, 1500:1 contrast ratio, 160° viewing angle, 1200 cd/m² high brightness, and integrated video assist functions. The monitor features one HDMI and one 12G-SDI input, as well as one HDMI, one 12G-SDI, and one 3G-SDI output port. The HDMI and 12G-SDI ports support up to 4K video resolutions, and the 3G-SDI port supports up to 1080p video. Upload up to 32 custom 3D LUTs to customize the look of your footage.

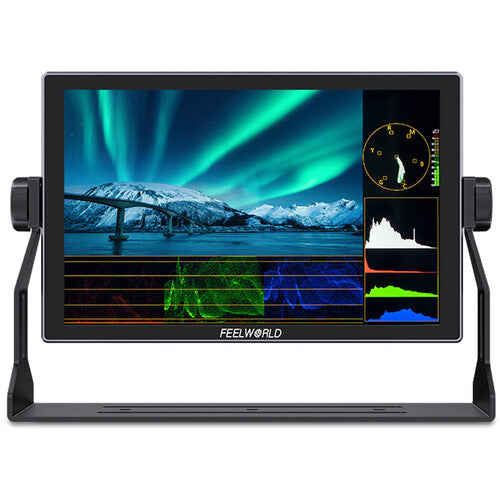

A multitude of video assist functions are embedded in the monitor's UI and easily accessed using the touchscreen and onboard buttons. A 16-channel audio meter level allows you to keep track of your audio sources and avoid clipping. The color-calibrated monitor covers 95% of the DCI-P3 color gamut for improved visual monitoring. An integrated tally light helps your talent visually identify when you are recording. Power the monitor using the DC input port or dual NP-F battery plate. Three 1/4"-20 threads can accommodate the included U-shaped bracket for a standalone solution or integrate additional accessories.
Aspect ratio
Center marker
Check field (red, green, blue, mono)
Color temperature adjustment
Display range
False color (normal, ARRI)
Focus assist
Grid (2 x 2, 3 x 3, 4 x 4, 5 x 5, 6 x 6, 7 x 7, 8 x 8, 9 x 9, custom)
HDR
Histogram
Image flip/freeze
Marker color
Overexposure
Pixel-to-pixel
Ratio marker
Safety frames
Scan mode
Vectorscope
Waveform
Zoom mode
Items Included
- FeelWorld S10 10.1" 12G-SDI/HDMI Touchscreen Monitor
- Mini-HDMI Cable
- HDMI Cable
- NP-F Dual Battery Plate
- U-Shaped Mounting Bracket
- Limited 1-Year Manufacturer Warranty
Additional Resources
FeelWorld S10 Specs
| Display Size |
10.1" / 25.7 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Video I/O |
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
|
| Video Format |
SDI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K: 30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI DCI 4K: 60/50 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Battery Type |
2x L-Series
|
| Power Consumption |
25 W
|
| Mounting |
1x 1/4"-20 Female (Right)
1x 1/4"-20 Female (Left) 1x 1/4"-20 Female (Bottom) |
| Panel Type |
IPS-Type LCD
|
| Display Size |
10.1" / 25.7 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Viewing Angle |
Horizontal: 160° (80/80)
Vertical: 160° (80/80) |
| Touchscreen |
Yes
|
| Maximum Brightness |
1200 nits / cd/m2
|
| Contrast Ratio |
1500:1
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
224 ppi
|
| Color Gamut |
95% DCI-P3
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Vectorscope, Waveform
|
| Video I/O |
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (12 VDC) Input
|
| Other I/O |
1x DE-9/DB-9 (Tally)
|
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K: 30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI DCI 4K: 60/50 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Video Signal Conversion |
HDMI to SDI
SDI to HDMI |
| Input Power |
7 to 24 VDC
|
| Battery Type |
2x L-Series
|
| Power Consumption |
25 W
|
| Mounting |
1x 1/4"-20 Female (Right)
1x 1/4"-20 Female (Left) 1x 1/4"-20 Female (Bottom) |
| Operating Conditions |
14 to 140°F / -10 to 60°C
|
| Storage Conditions |
-22 to 158°F / -30 to 70°C
|
| Dimensions |
9.6 x 6.19 x 1" / 244 x 157.25 x 26.4 mm
|
| Weight |
1.75 lb / 795.00 g
|
| Package Weight |
3.48 lb
|
| Box Dimensions (LxWxH) |
11 x 9.1 x 4.3"
|
