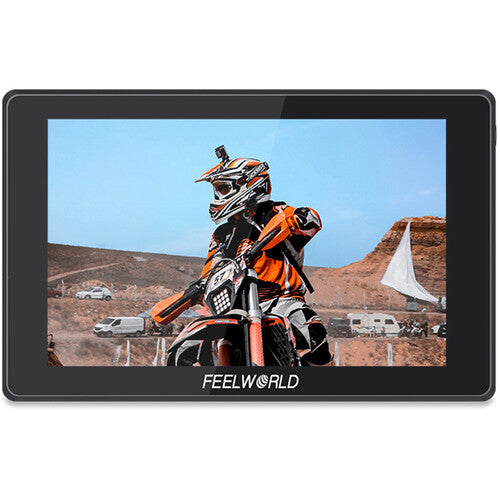

FeelWorld SH7 7" On-Camera Monitor

Add a versatile and ultrabright monitor to your studio or on-location production kit with the SH7 7" On-Camera Monitor from FeelWorld. The daylight-viewable 1920 x 1200 Full HD IPS screen features a peak brightness of 2200 cd/m² and touchscreen menu operation. Easily convert an HDMI signal to SDI and vice versa via the HDMI and SDI inputs and outputs, and add a LUT to your image for real-time monitoring on the go. The monitor may be powered using an optional power supply with a barrel connector or with separately available L-series batteries for enhanced mobility.

Ideal for directors, focus pullers, and video switching operators, the SH7 is packed with useful on-set functions such as waveform, vectorscope, audio meter monitoring, horizontal and vertical image flip, center and safety markers, and full support for HDR monitoring and 3D LUTs. The unit comes with a Mini/Micro-HDMI to HDMI cable, a tilt arm, and a handy wrench.

View your images clearly and capture every detail with confidence with this high-resolution 1920 x 1200 IPS panel that supports REC709, DCI-P3, and BT2020, while showcasing rich color and meeting the different needs of photographers and videographers for an enhanced color gamut. The ultrahigh brightness makes shooting outdoors in bright sunlight a breeze.

The SH7 adopts a new UI menu with iconized functions that make for more convenient and quick navigation to each separate function. Additionally, three custom shortcut buttons on the top of the screen allow you to quickly access pre-saved functions during the shooting process, greatly improving shooting efficiency.

• Waveform
• Vectorscope
• Histogram
• Nine grid and safe frames
• Audio meter monitoring
• Focus peaking
• Check field
• Zoom

The HDMI and SDI outputs can deliver your video or still image with a 3D LUT effect. When you are live streaming, you can add a cinematic look, and when shooting on a set, you can output the image with a LUT to the director or client for real-time monitoring by connecting an optional wireless device to enhance teamwork and flexibility.

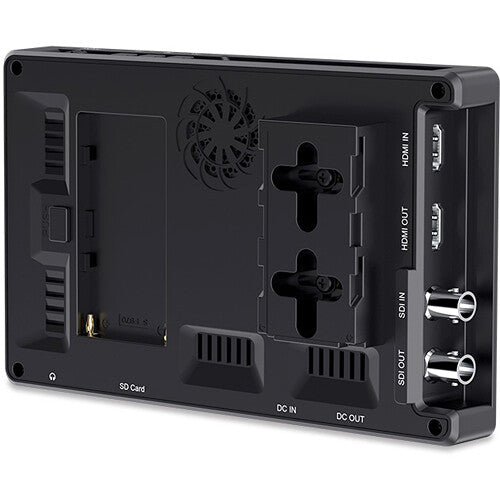

SDI connectivity is perfect for higher-end cinema cameras, while HDMI provides the ease to quickly connect with DSLR or mirrorless cameras. A 3.5mm headphone jack allows for real-time audio monitoring. Built-in signal cross conversion allows you to convert your HDMI signal to SDI or SDI to HDMI without the need for additional conversion devices.

A 12 VDC input provides ample power when used with an optional power adapter, and an auxiliary power out provides 8 VDC for select, compatible cameras or other devices. An integrated cooling system keeps the air flowing so you can work for hours and hours without ever worrying about overheating.

The monitor is equipped with two standard 1/4"-20 mounting threads (bottom, right side) that allow you to easily mount it on the camera or other types of equipment with a magic arm, bracket, or other mounting solution.

FeelWorld SH7Specs

Display Size	7.0" / 17.8 cm
Native Resolution	1920 x 1200
Touchscreen	Yes
HDR Support	No
Video I/O	1x HDMI 1.3 Input 1x HDMI 1.3 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type)
Video Format	SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI 1080p: 60/59.94/50 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98
Power Consumption	15 W
Mounting	2x 1/4"-20 Female

Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 80° Vertical: 80°
Touchscreen	Yes
Maximum Brightness	2200 nits / cd/m2
Contrast Ratio	1200:1
Color Support	16.7 Million Colors (8-Bit)
HDR Support	No
Pixels Per Inch (ppi)	323 ppi
LUT Support	Yes
Image Controls	Check Field, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra

Video I/O	1x HDMI 1.3 Input 1x HDMI 1.3 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output
Embedded Audio	HDMI/SDI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Power I/O	1x Barrel (24 VDC) Input 1x Barrel (8 VDC) Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type)
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Video Format	SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI 1080p: 60/59.94/50 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98
Video Signal Conversion	HDMI to SDI SDI to HDMI

Input Power	7 to 24 VDC
Power Consumption	15 W

Mounting

2x 1/4"-20 Female

Operating Conditions	-4 to 122°F / -20 to 50°C
Storage Conditions	-22 to 140°F / -30 to 60°C
Dimensions	7.4 x 4.6 x 0.9" / 186.8 x 118 x 23 mm
Weight	0.92 lb / 420.00 g

Package Weight	2.11 lb
Box Dimensions (LxWxH)	8.8 x 6.2 x 3.2"
