SmallHD Cine 7 Overview
Use the lightweight 7" Cine 7 Touchscreen Monitor with Sony VENICE Camera Control Kit from SmallHD to provide professional monitoring for your Sony VENICE camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery mount, a sun hood, a screen protector, an 8GB SD card, and the Sony VENICE camera control kit that includes software and an Ethernet control cable.
The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

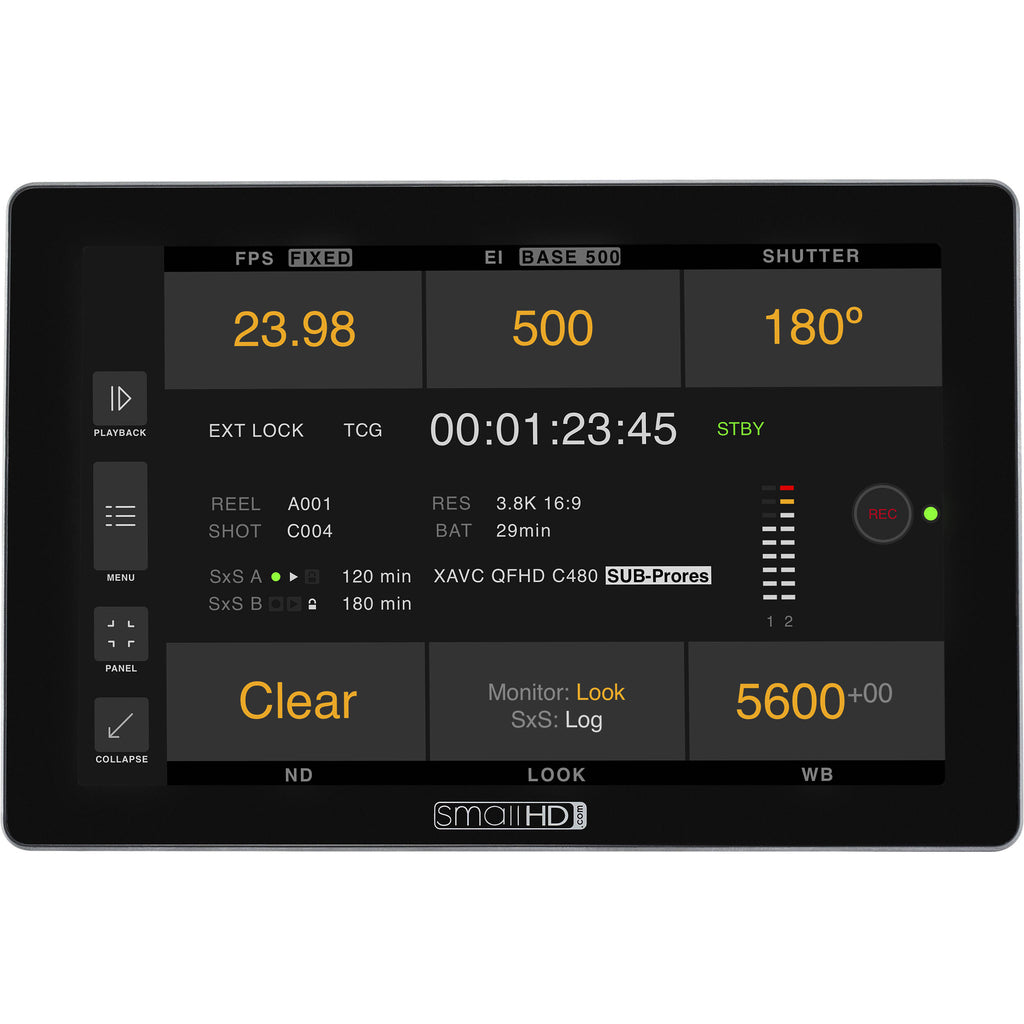

The VENICE control software loads onto the monitor and allows you to control Sony camera functions protocol such as run/stop, ND filters, fps, status, color temperature, LUT configuration, playback, shutter, timecode, media status, battery status, and menu control, all via the Cine 7 touchscreen. The control cable, SDI cable, and USB-to-LEMO adapter allow the monitor to connect to the camera.
The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive Swipe OS3, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series battery mount enables you to power the unit.
Features
Software
- Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Dual zebra: Customizable
- Waveform: Luma and RGB, customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: Customizable
- Histogram: Luma and RGB
- Image capture: With dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: HDMI and SDI up to 8 channels

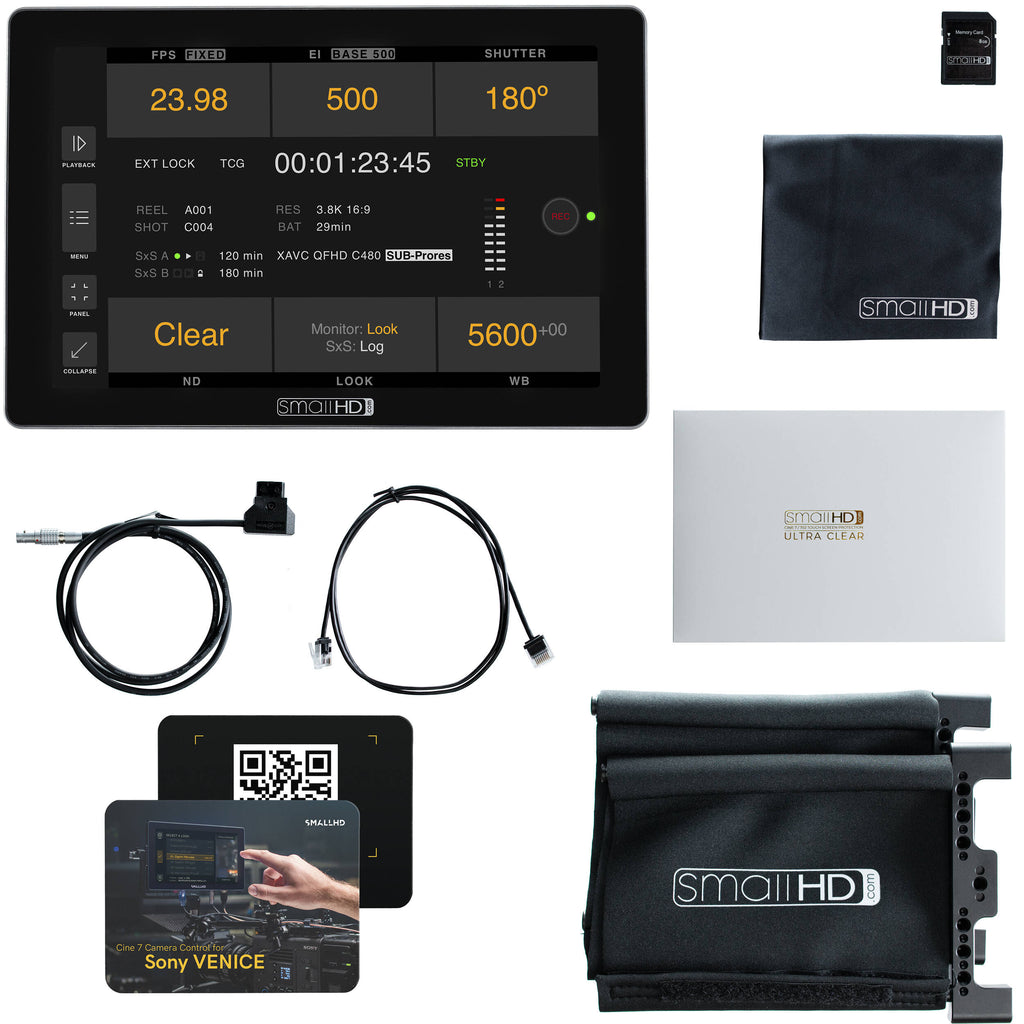

In the Box
- SmallHD 7" Cine 7 Touchscreen Monitor with Sony VENICE Camera Control Kit
- SmallHD 2-Pin LEMO to D-Tap Power Cable (36")
- SmallHD Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors
- SmallHD Sun Hood for 702 Touch and Cine 7 Monitors
- SmallHD Ultraclear Screen Protector for 702 Touch/Indie 7/Cine 7 Monitors
- SmallHD Cine 7 Camera Control Kit for Sony VENICE
- 8GB SD Card
- SmallHD Microfiber Cleaning Cloth
- Limited 1-Year Warranty
SmallHD Cine 7 Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Area | 5.95 x 3.72" / 15.11 x 9.45 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 1800 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 322 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
| Video | 1 x HDMI Type D Input 1 x HDMI Type D Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Input/Output |
| Embedded Audio | HDMI: 8-Channel SDI: 8-Channel |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x LEMO 2-Pin (34 VDC) Input |
| Other I/O | 1 x USB 2.0 (Micro-USB) |
| Wi-Fi | None |
| Video Format | HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
| Video Signal Conversion | SDI to HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76 HDMI to SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 |
| DC Input Power | 6 to 16 VDC at 2.5 A |
| Battery Type | 1 x L-Series |
| Mounting | 4 x 1/4"-20 Female |
| Certifications | CE, IC, RoHS, as per Manufacturer |
| Operating Temperature | 30 to 100°F / -1 to 37°C |
| Storage Temperature | 0 to 120°F / -17 to 48°C |
| Dimensions | 7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm |
| Weight | 20 oz / 567 g |
| Package Weight | 3.305 lb |
| Box Dimensions (LxWxH) | 9.5 x 7 x 4.6" |
