Description
SmallHD CINE 5 Overview
- 1Description
- 2Key Features
- 3RED Control Features
- 4Software Features

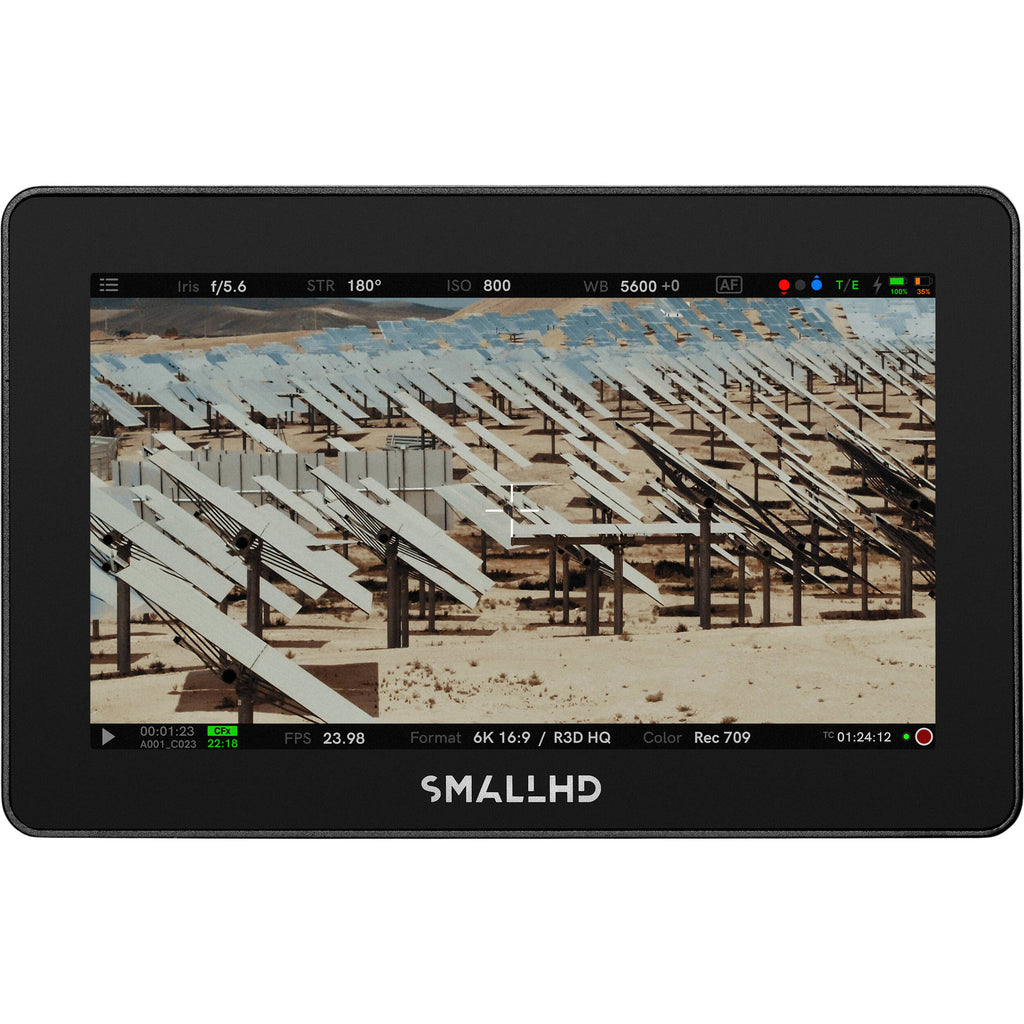

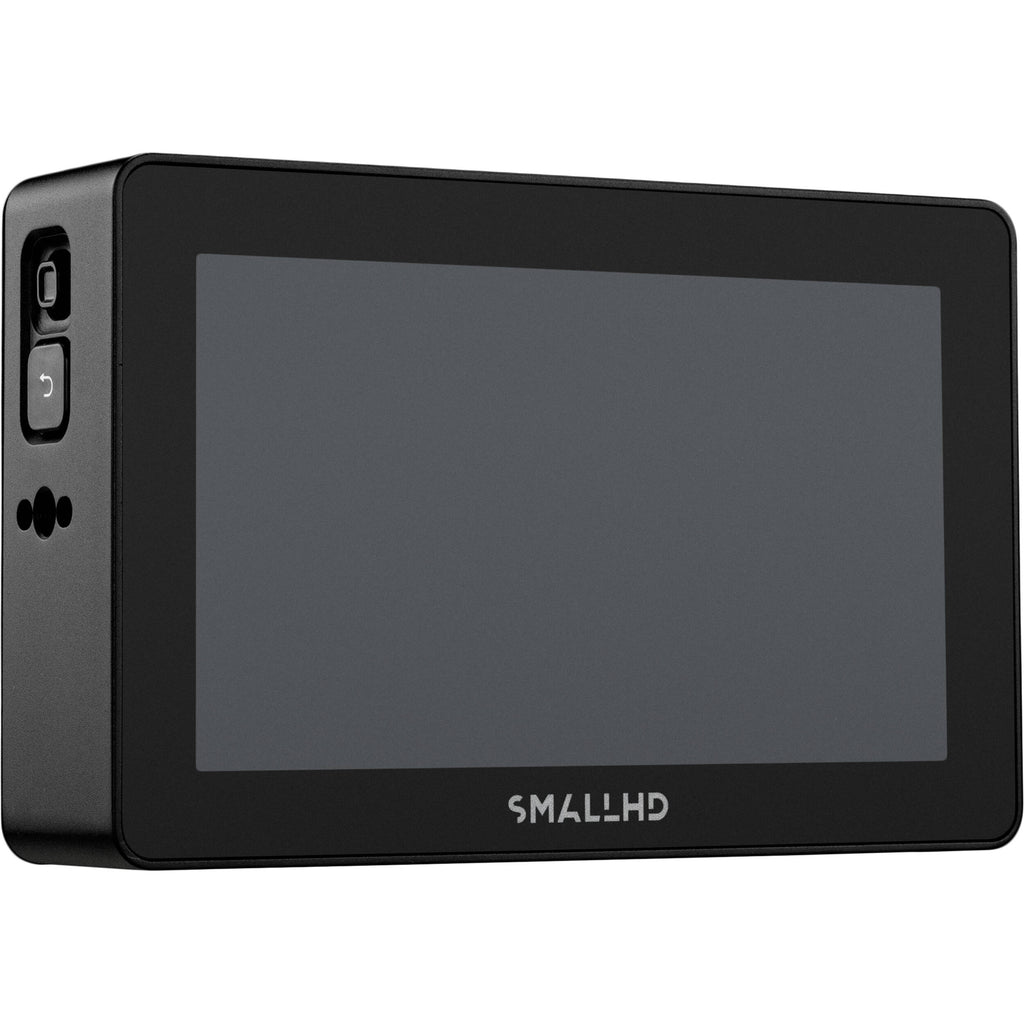

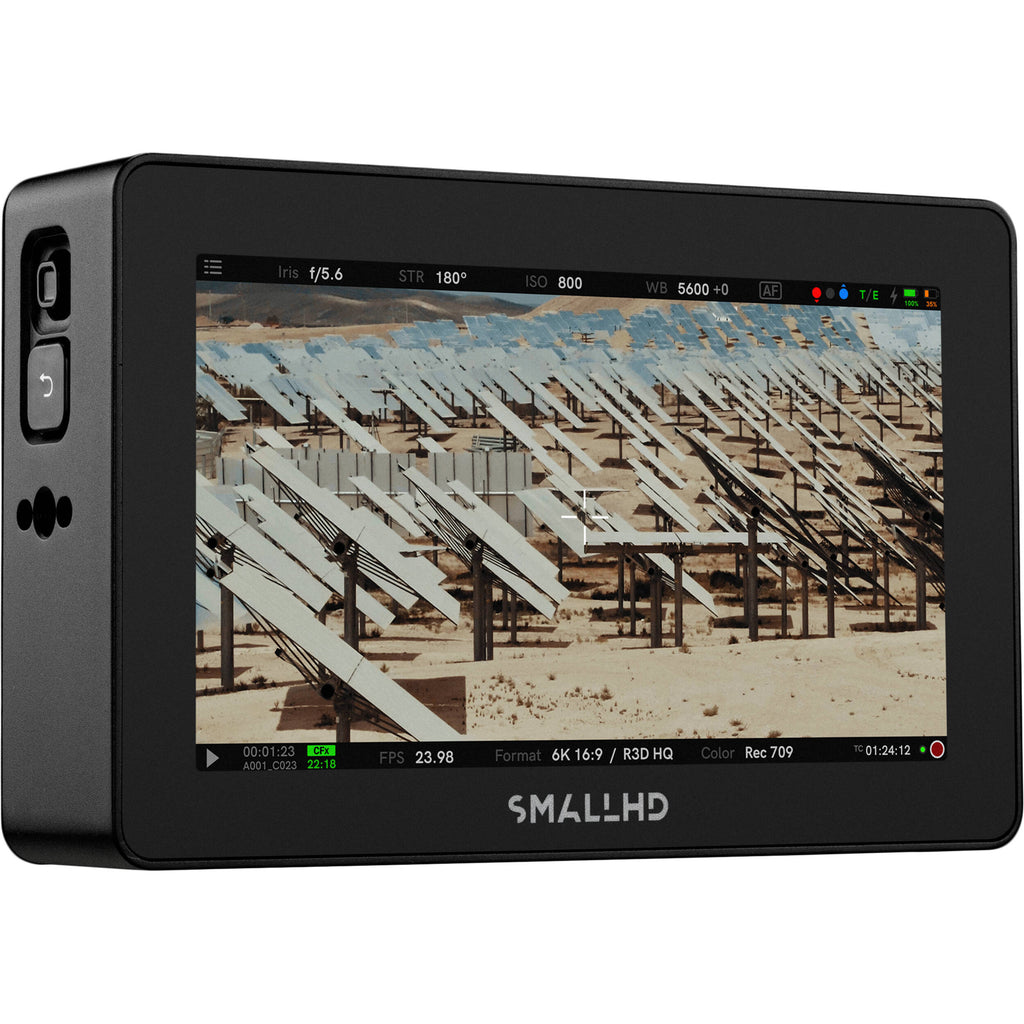

Monitor your camera with the CINE 5 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 5" display suitable for indoor or outdoor use, the CINE 5 monitor supports various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The CINE 5 features a bright 2000 cd/m², 1920 x 1080 LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap, and the CINE 5 also adds a joystick on the side and a button on the back for ease of use. There is a 5-pin USB output to utilize optional RED camera control. The monitor can be powered using its 2-pin power input.
Firmware Updates
v5.2.1, Nov '22
- Description
- Key Features
- RED Control Features
- Software Features
SmallHD CINE 5 Specs
| Panel Type | LCD |
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 2000 cd/m2 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 440 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
| Video I/O | 1 x HDMI 2.0 Input 1 x HDMI 2.0 Loop Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI: 8-Channel SDI: 8-Channel |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x LEMO 2-Pin (34 VDC) Input |
| Other I/O | 1 x LEMO 5-Pin 2.0 Output |
| Media/Memory Card Slot | None |
| Video Format | HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
| Video Signal Conversion | SDI to HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76 HDMI to SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 |
| Mounting | 4 x 1/4"-20 Female |
| Material of Construction | Aluminum |
| Package Weight | 1.73 lb |
| Box Dimensions (LxWxH) | 10.3 x 6.9 x 2.5" |
SmallHD CINE 5 Reviews
Its a SmallHD what can I say, Its a fantastic 5inch Monitor
I shoot a lot of weddings/events, and docs, and I've used the Focus series for years and love them. Like many folks, I was hoping for a true follow-up with full PageOS. Their OS makes it so I can quickly bring up false color, scopes, focus peaking, eta, and quickly move it out of the way makes for a great shooting experience. The 2000nits brightness really does make a difference as well. So far, I've found it easier to get sharper focus pulls and really have a better sense of what I'm capturing on bright sunny days. I'm a GH5, and S5 shooter, and I've used the Cine 5 on both, you can feel the little heavier weight but is still well-balanced if using it with a cage with top handle. The only thing that still happens, like on the focus series, is when using HDMI auto power-on feature, the monitor will turn on when the camera was off. I realize this could be an issue more with HDMI. Wish it came with a screen protector in the box like previous monitors. Pricer than some other 5 monitors, but I wanted to get a monitor that I knew would be well-built to last, that is responsive and reliable. I feel like I made the right choice.
Perfect for the Red Komodo!
I was able to get my hands on the first batch of these monitors and it did not disappoint. It's built like a tank, bright enough for broad daylight work and makes modifications on the fly smooth sailing. High price tag but you get what you pay for.
