Description
SmallHD Cine 7 Overview
- 1Description
- 2SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)
- 3SmallHD Microfiber Cleaning Cloth
- 4SmallHD Micro-USB to 5-Pin LEMO Adapter

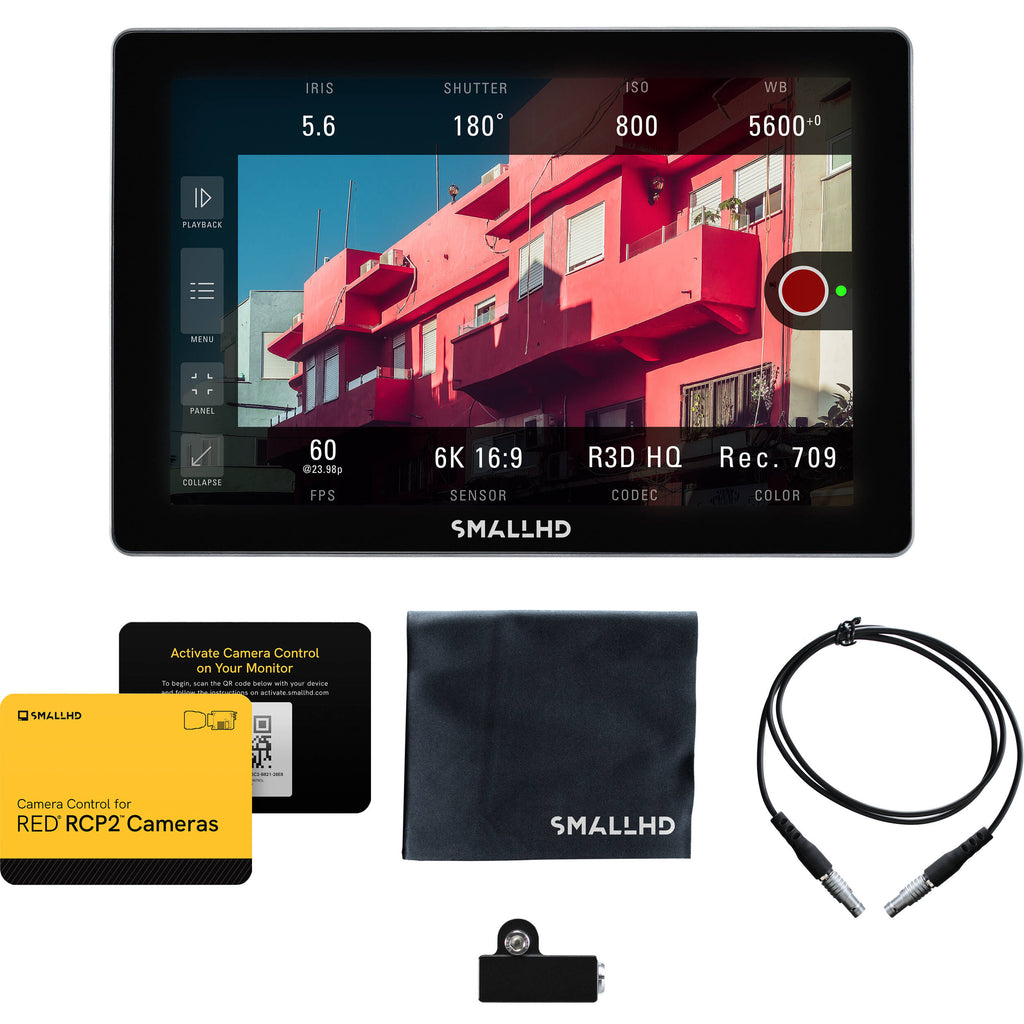

Use the lightweight Cine 7 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery plate, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.

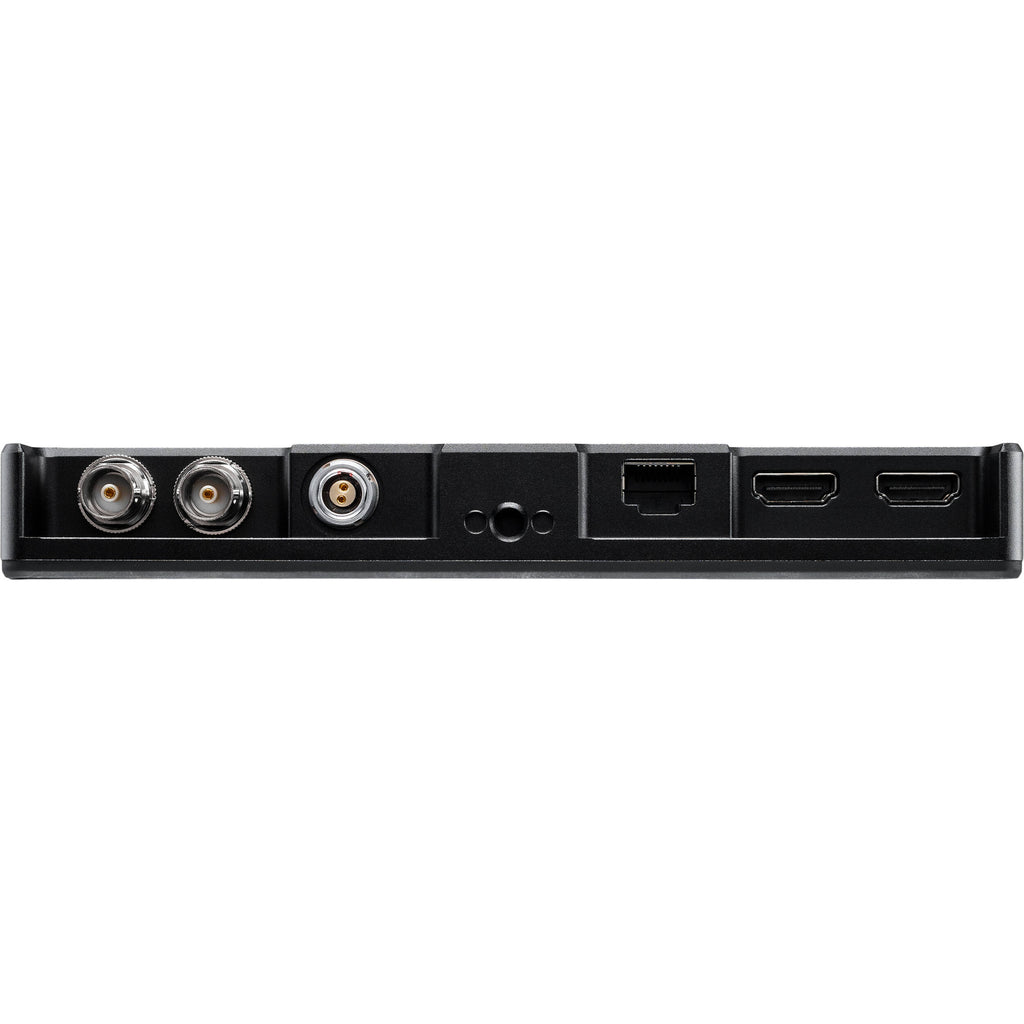

The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.
Monitor your camera with the Cine 7 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 7" display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

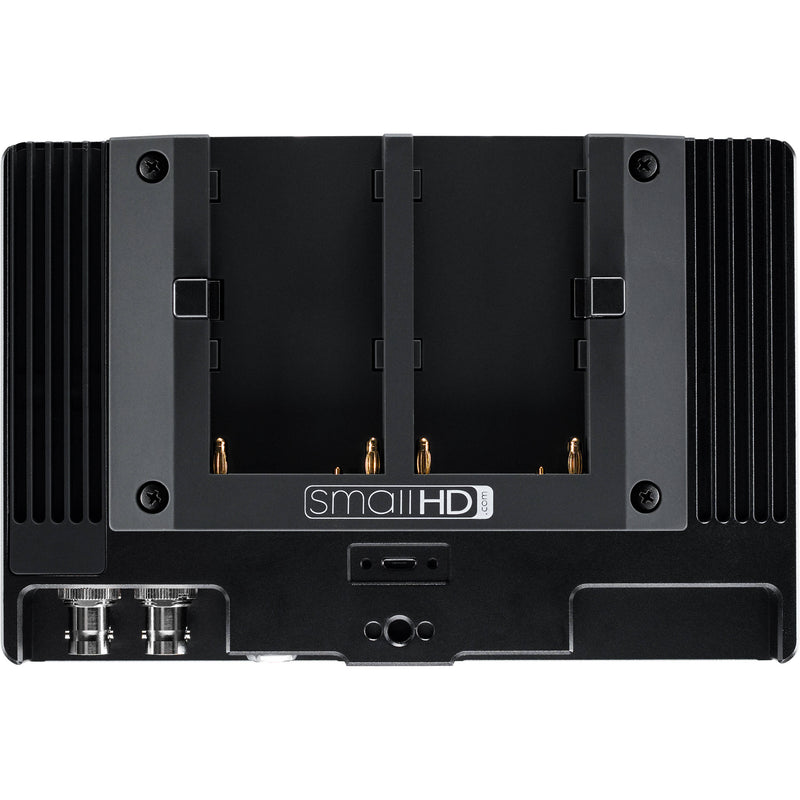

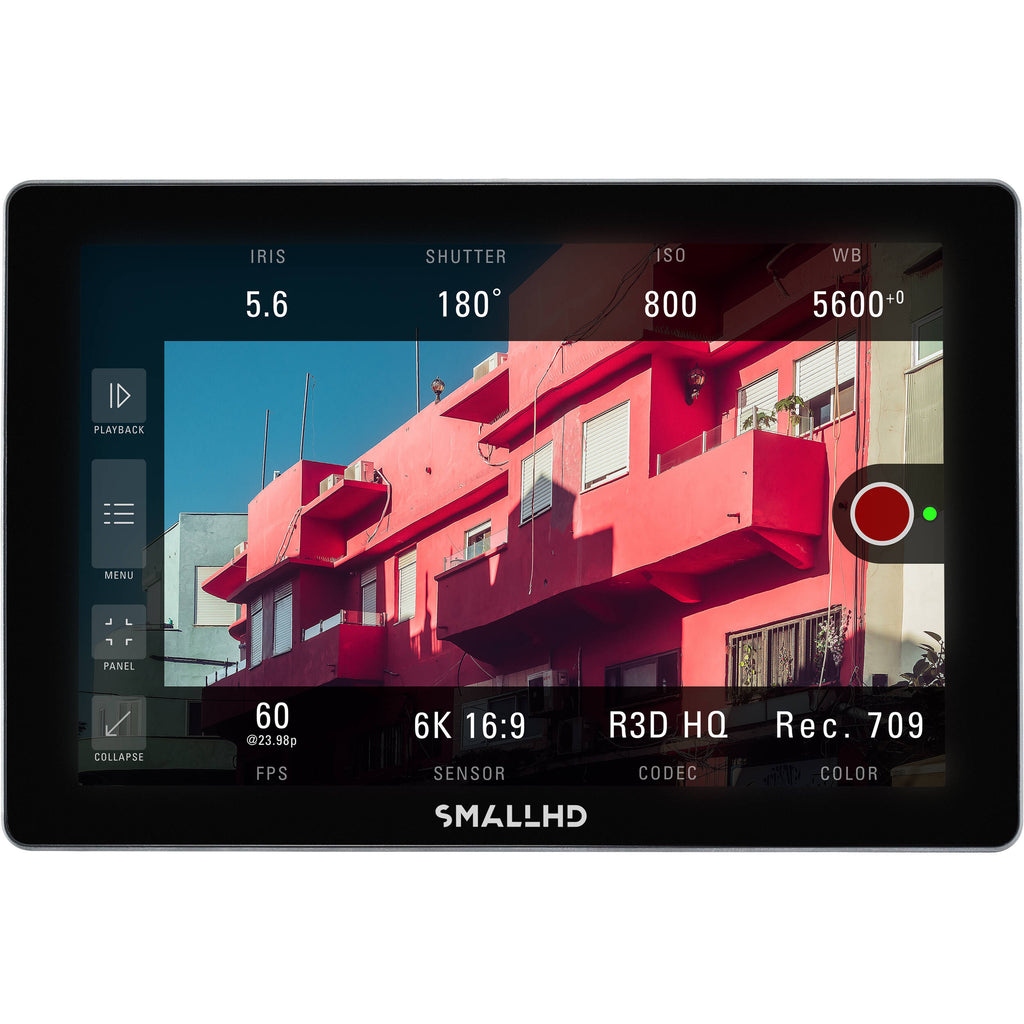

The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.
Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.
The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.
Teradek RT CTRL.1 and CTRL.3 lens controllers
In the Box
- SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)
- SmallHD Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors
- Limited 1-Year Warranty
- SmallHD Microfiber Cleaning Cloth
- SmallHD Micro-USB to 5-Pin LEMO Adapter
- Limited 1-Year Warranty
- RED RCP2 Camera Control Software Upgrade
- 9-Pin EXT to 5-Pin USB Camera Control Cable
Not in the Box
- Essential Batteries & Chargers (Not Included)
- Description
- SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)
- SmallHD Microfiber Cleaning Cloth
- SmallHD Micro-USB to 5-Pin LEMO Adapter
SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series) Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Area | 5.95 x 3.72" / 15.11 x 9.45 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 1800 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 322 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
| Video I/O | 1 x Micro-HDMI Input 1 x Micro-HDMI Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Input/Output |
| Embedded Audio | HDMI: 8-Channel SDI: 8-Channel |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x LEMO 2-Pin (34 VDC) Input |
| Other I/O | 1 x Micro-USB 2.0 |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Wi-Fi | None |
| Video Format | HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
| Video Signal Conversion | SDI to HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76 HDMI to SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 |
| DC Input Power | 6 to 16 VDC at 2.5 A |
| Battery Type | 2 x L-Series |
| Mounting | 4 x 1/4"-20 Female |
| Certifications | CE, IC, RoHS *as per Manufacturer |
| Operating Temperature | 30 to 100°F / -1 to 37°C |
| Storage Temperature | 0 to 120°F / -17 to 48°C |
| Dimensions | 7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm |
| Weight | 20 oz / 567 g |
| Package Weight | 1.93 lb |
| Box Dimensions (LxWxH) | 9.5 x 7 x 2" |
SmallHD Microfiber Cleaning Cloth Specs
| Package Weight | 0.025 lb |
| Box Dimensions (LxWxH) | 4.1 x 4 x 0.2" |
SmallHD Micro-USB to 5-Pin LEMO Adapter Specs
| Connector 1 | Micro-USB, Male |
| Connector 2 | 5-Pin LEMO, Female |
| Power | 5 VDC |
| Mounting | 1 x 1/4"-20 Thumbscrew |
| Package Weight | 0.07 lb |
| Box Dimensions (LxWxH) | 6.95 x 3.85 x 0.85" |
