Description
SmallHD INDIE 5 Overview
- 1Description
- 2SmallHD INDIE 5 Touchscreen On-Camera Monitor
- 3SmallHD Microfiber Cleaning Cloth
- 4SmallHD Micro-USB to 5-Pin LEMO Adapter
- 5SmallHD EXT 9-Pin to 5-Pin USB Camera Control Cable for RED KOMODO (18")

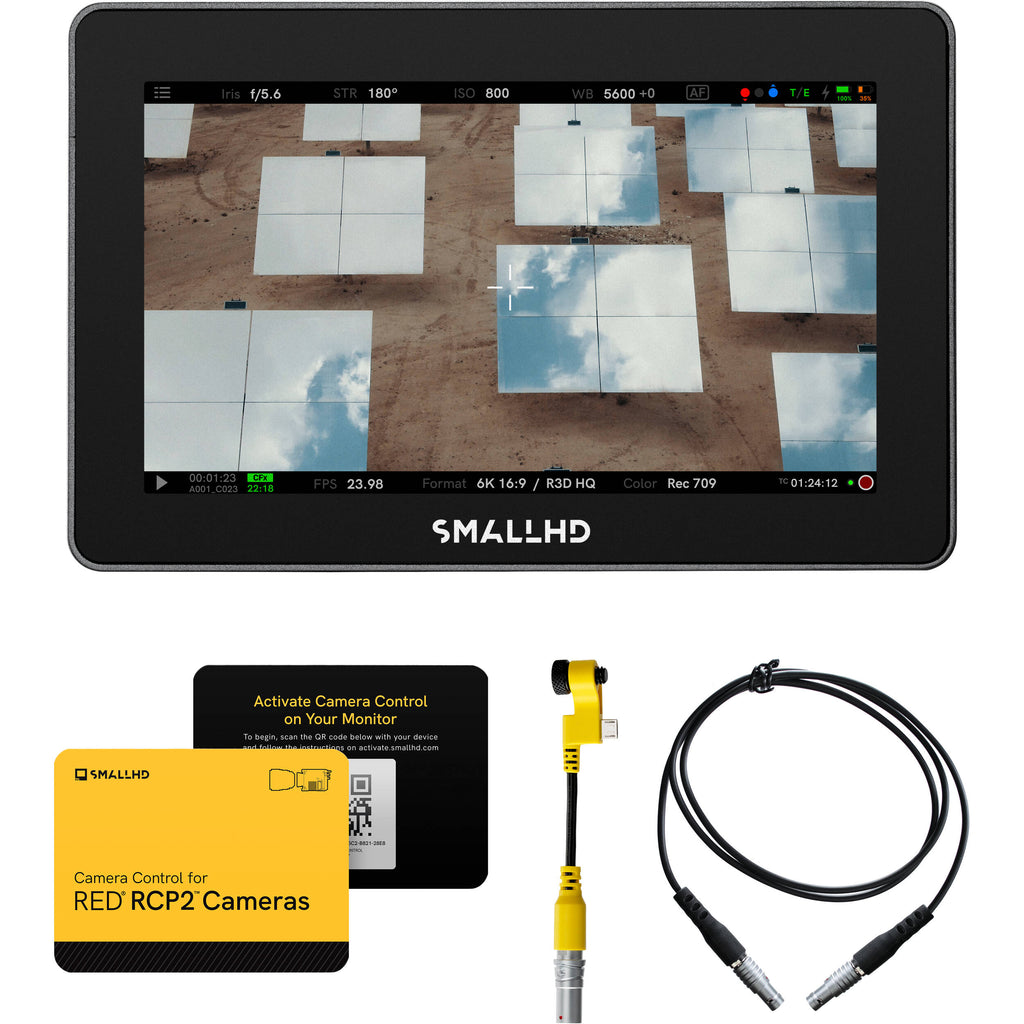

Use the lightweight Indie 5 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 5" display suitable for indoor or outdoor use. The kit includes the Indie 5 monitor, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.
The Indie 5 monitor supports up to UHD 4K30 HDMI input/output as well as up to 1080p60 via the SDI input/output. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Indie 5 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.

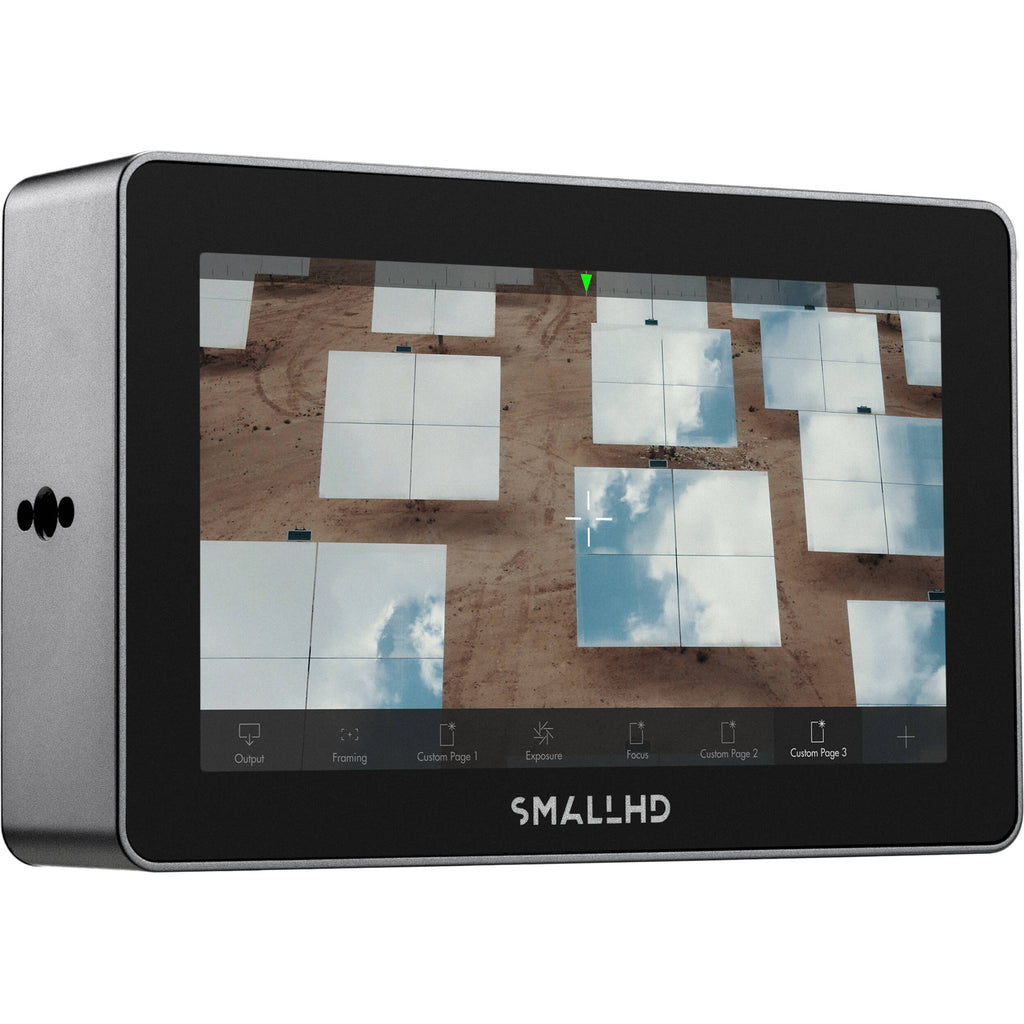

The compact and lightweight INDIE 5 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 5" LCD with 1920 x 1080 resolution, 10-bit 4:2:2 Rec. 709 color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen-only control, and updated SmallHD PageOS 5 firmware. It features HDMI and 3G-SDI inputs and outputs.
The INDIE 5 features a handy touchscreen lock slider, so you don't have to worry about accidentally touching the screen when it's in use. Using the intuitive SmallHD PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements. You can also utilize optional RED camera control via the monitor's micro-USB port.
The monitor is powered using the DC barrel input with a DC adapter, and its durable aluminum chassis protects the monitor in any production environment.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels
Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.
The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.
Teradek RT CTRL.1 and CTRL.3 lens controllers
Control the RCP2 functions on your RED KOMODO camera when using the optional KOMODO Camera Control software on your Focus Pro monitor with this EXT 9-Pin to 5-Pin USB Camera Control Cable from SmallHD. This purpose-built cable allows your RED KOMODO camera to be controlled via the SmallHD FOCUS Pro monitor when it has the RED control software installed. The cable measures 18" in length.
In the Box
- SmallHD INDIE 5 Touchscreen On-Camera Monitor
- Limited 1-Year Manufacturer Warranty
- SmallHD Microfiber Cleaning Cloth
- SmallHD Micro-USB to 5-Pin LEMO Adapter
- Limited 1-Year Warranty
- SmallHD EXT 9-Pin to 5-Pin USB Camera Control Cable for RED KOMODO (18")
- Limited 1-Year Manufacturer Warranty
- RED RCP2 Camera Control Software Upgrade
Not in the Box
- Essential Batteries (Not Included)
- Description
- SmallHD INDIE 5 Touchscreen On-Camera Monitor
- SmallHD Microfiber Cleaning Cloth
- SmallHD Micro-USB to 5-Pin LEMO Adapter
- SmallHD EXT 9-Pin to 5-Pin USB Camera Control Cable for RED KOMODO (18")
SmallHD INDIE 5 Touchscreen On-Camera Monitor Specs
| Display Size |
5.0" / 12.7 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Compatibility |
No
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Video Format |
HDMI (10-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
| Mounting |
4x 1/4"-20 Female
|
| Panel Type |
LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors)
|
| HDR Compatibility |
No
|
| Pixels Per Inch (ppi) |
440 ppi
|
| Color Gamut |
100% Rec. 709
|
| Real-Time LUT Monitoring |
SDR, HDR
|
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (10 VDC) Input
|
| Other I/O |
1x Micro-USB (Firmware) Input
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI (10-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
| Video Signal Conversion |
HDMI to SDI
SDI to HDMI |
| DC Input Power |
10 to 34 VDC
|
| Mounting |
4x 1/4"-20 Female
|
| Material of Construction |
Aluminum
|
| Weight |
14.4 oz / 408 g
|
| Package Weight |
1.695 lb
|
| Box Dimensions (LxWxH) |
10.2 x 6.9 x 2.4"
|
SmallHD Microfiber Cleaning Cloth Specs
| Package Weight |
0.025 lb
|
| Box Dimensions (LxWxH) |
4.1 x 4 x 0.2"
|
SmallHD Micro-USB to 5-Pin LEMO Adapter Specs
