Description
SmallHD ULTRA 5 RX Overview

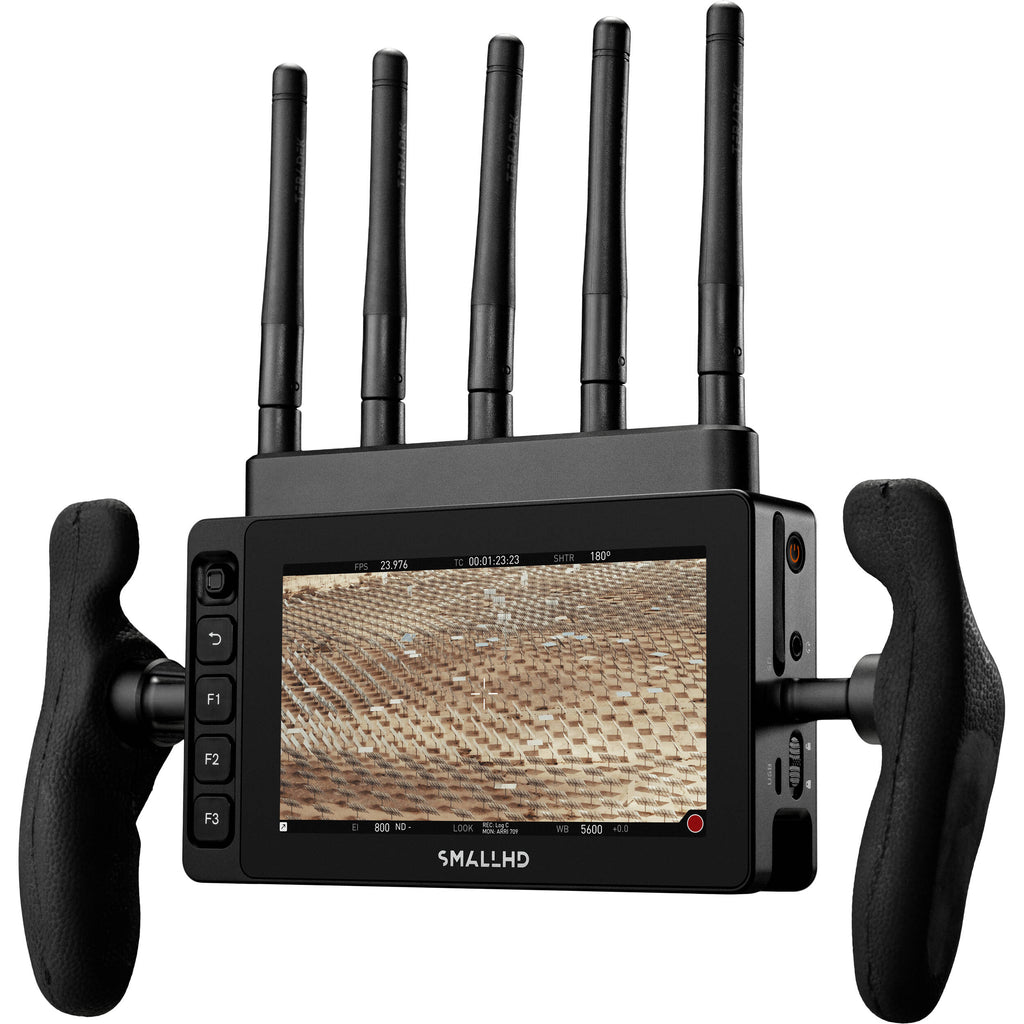

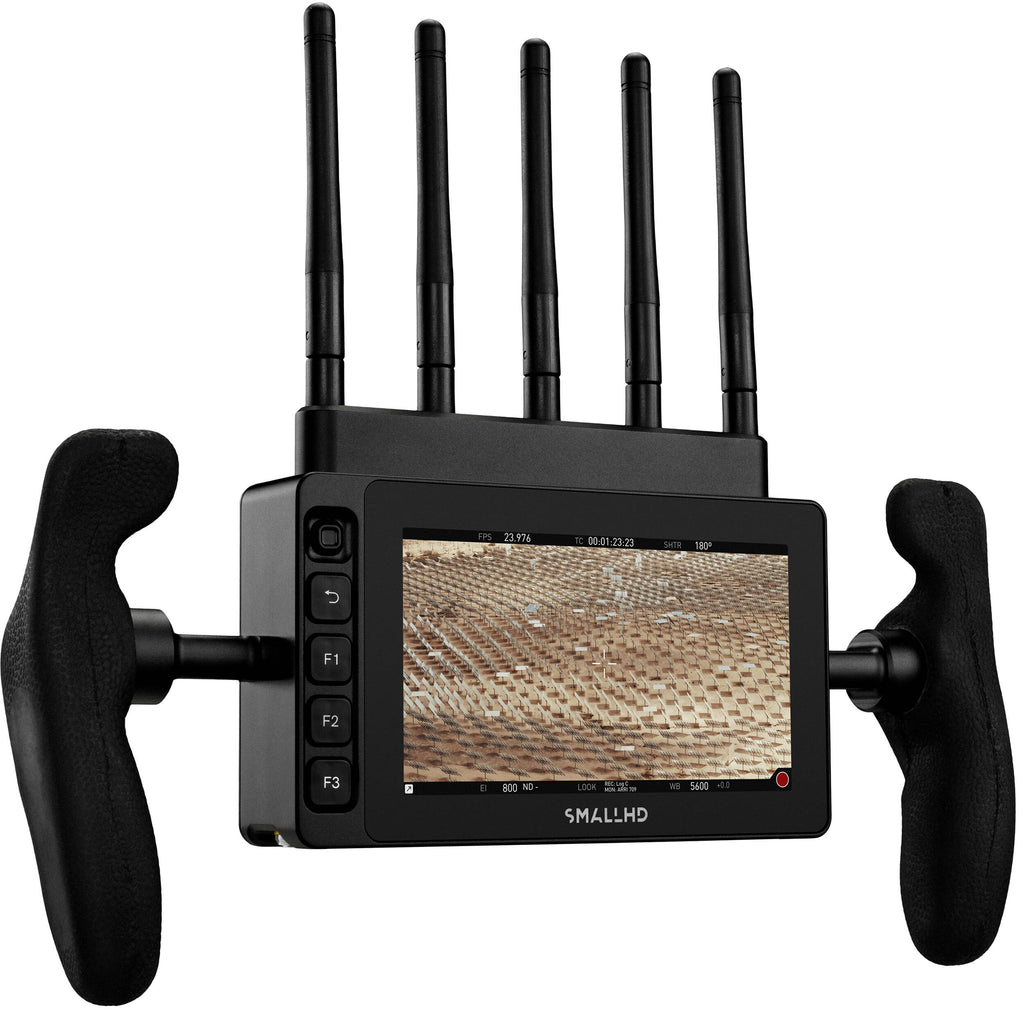

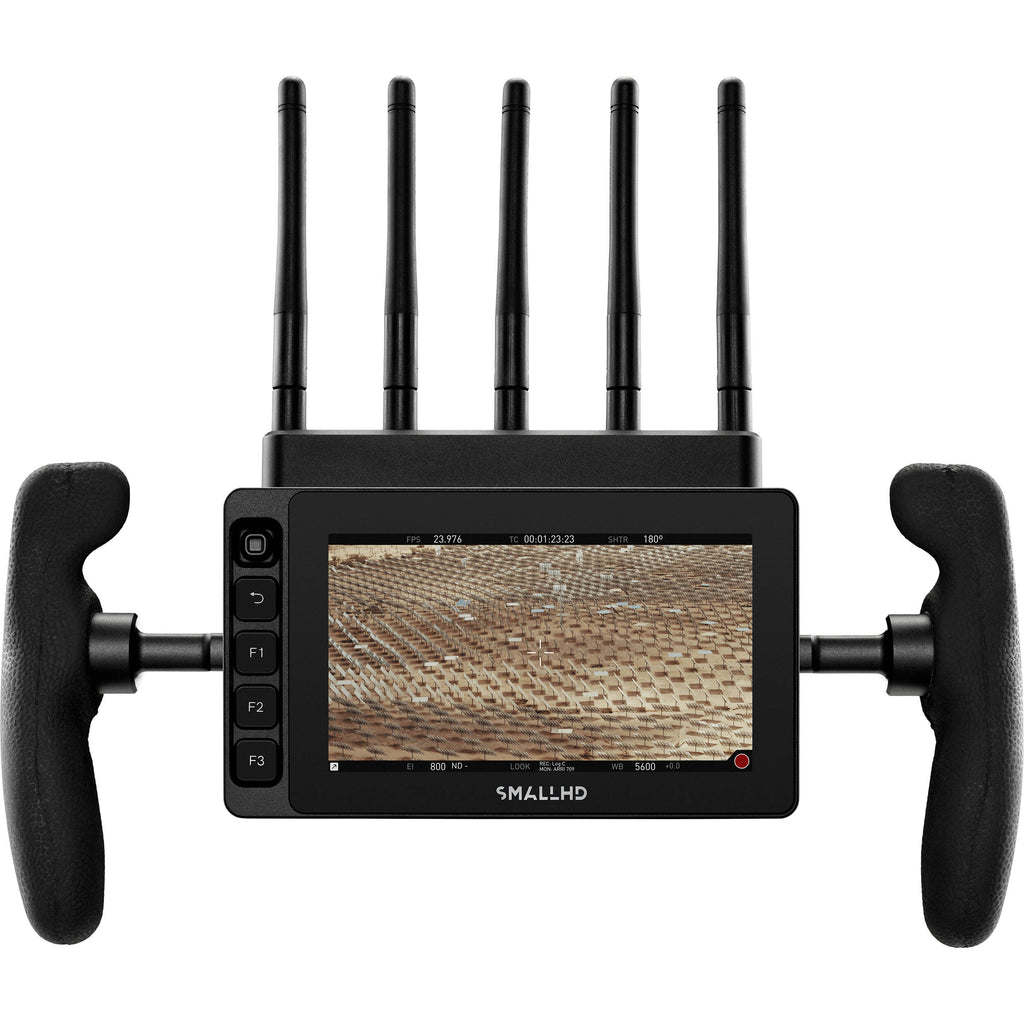

Add an ultra-bright monitor with wireless control to your production rig with the V-mount SmallHD ULTRA 5 Bolt 6 RX 750 Monitor Kit. The unit includes an ULTRA 5 bright 5" on-camera monitor and a Bolt 6 TX monitor module from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.
The monitor module installs onto the back of the monitor and provides power to the monitor via a V-mount battery, and it receives wireless video transmissions from up to 750'. The RX module can receive via the 6 GHz band from Teradek Bolt 6 series transmitter, as well as from 5 GHz transmitters such as the Teradek Bolt 4K series.
Read more below about the items in this kit.
Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m² display for viewing in just about any indoor or outdoor environment. The 5" 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.
The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, and it features a 5-pin USB port for optional RED camera control, and it also has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels

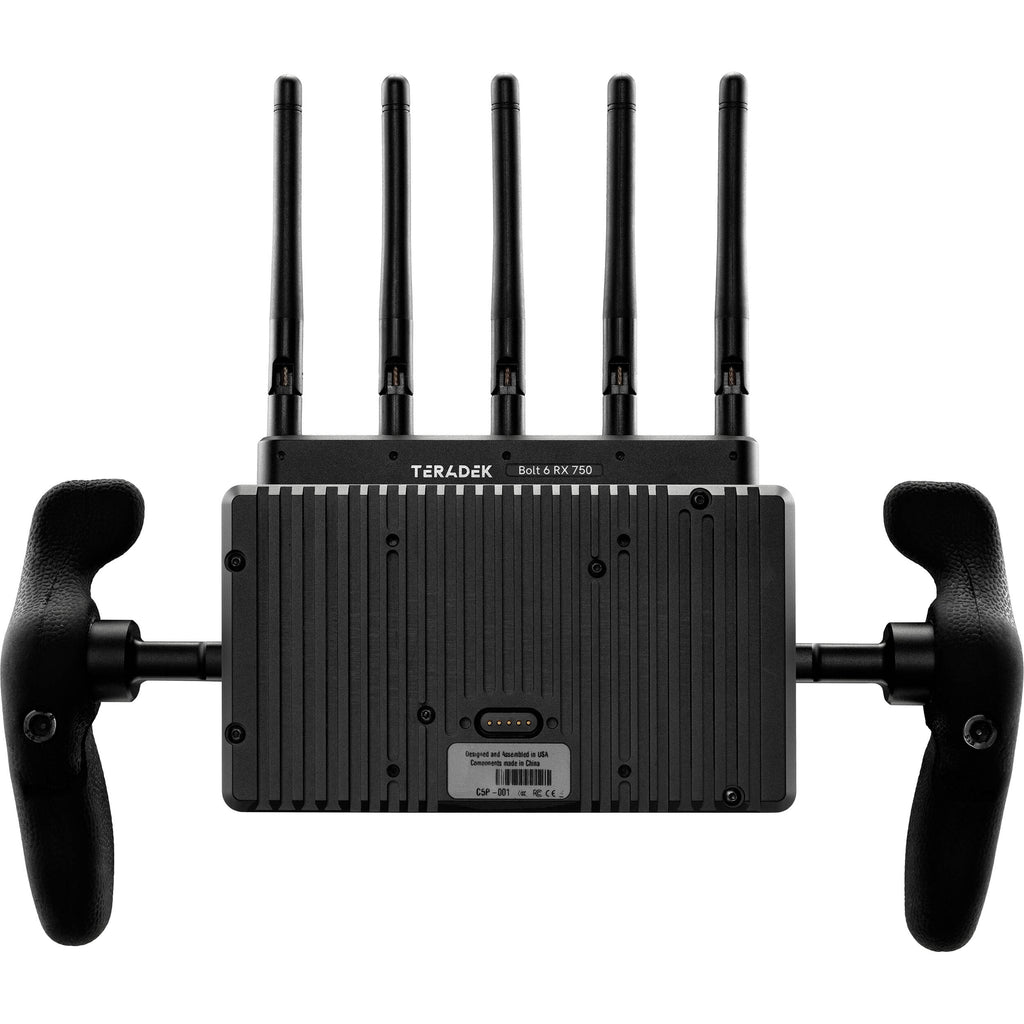

Receive lossless HD video from up to 750' line-of-sight with the Bolt 6 RX 750 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A V-mount battery plate is included to power the receiver using a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The module can also simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.
The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
In the Box
- SmallHD ULTRA 5 Bright Touchscreen Monitor
- Limited 1-Year Manufacturer Warranty
- Teradek Bolt 6 RX 750 Monitor Module for Smart 7 Series (V-Mount)

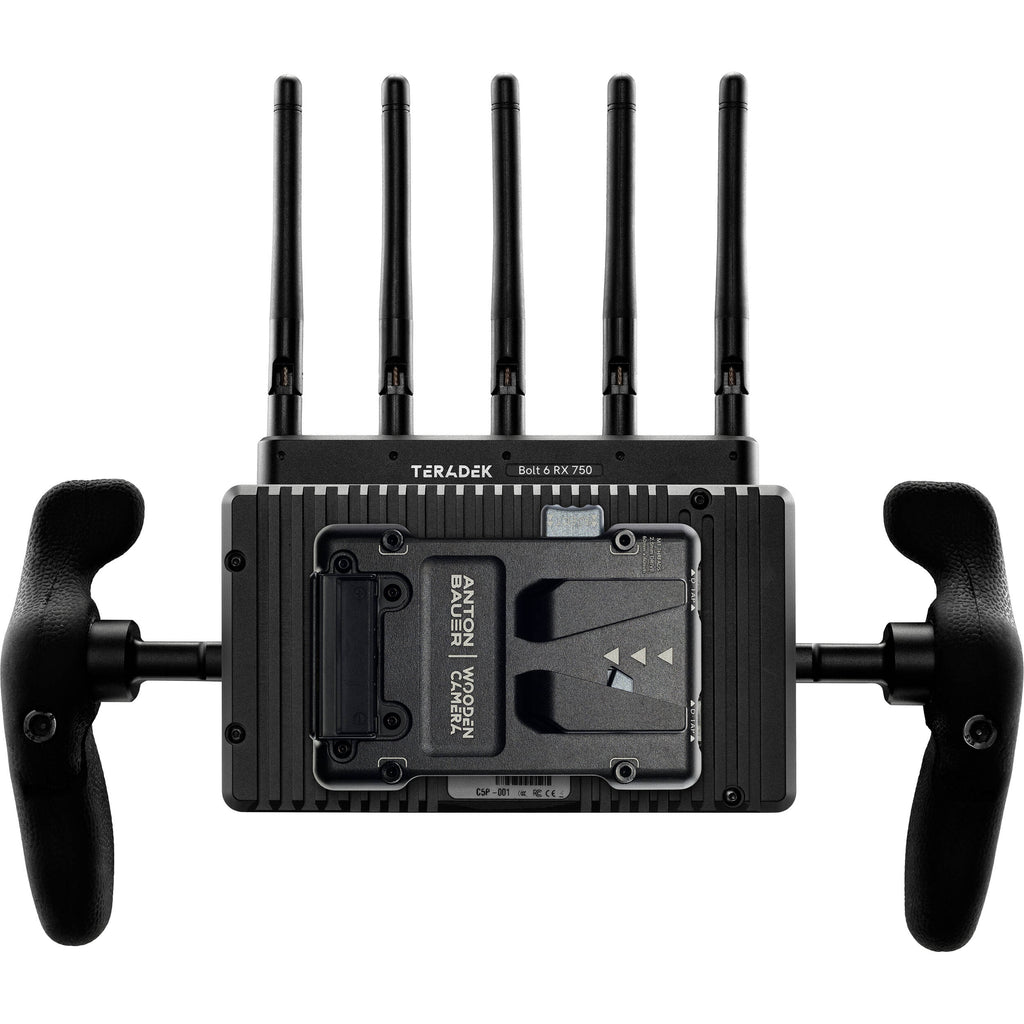

- V-Mount Battery Plate
- 5 x Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set
- Limited 1-Year Manufacturer Warranty
SmallHD ULTRA 5 Bright Touchscreen Monitor Specs
| Panel Type | LCD |
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 3000 nits / cd/m2 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 443 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform |

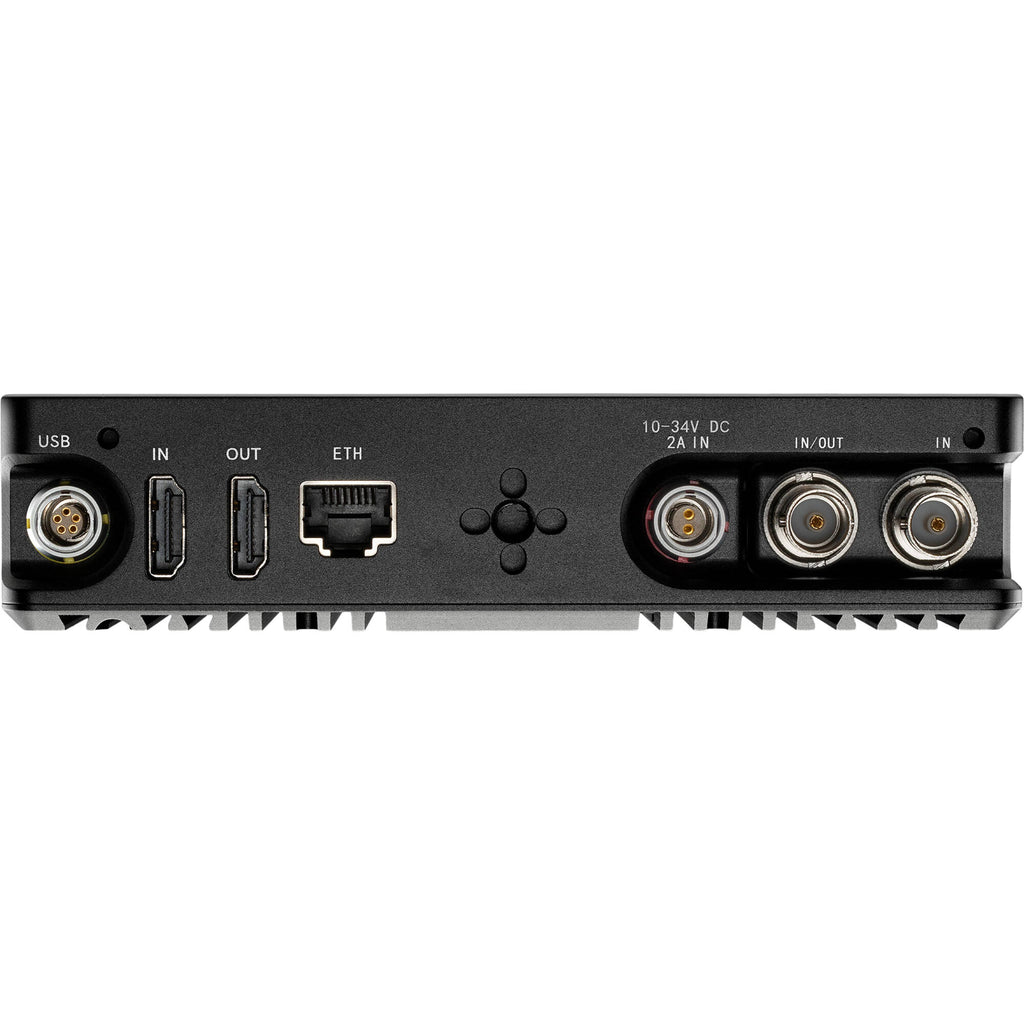

| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x BNC (3G-SDI) Input 1 x HDMI Input |
| Embedded Audio | HDMI SDI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x LEMO 0B 2-Pin (2.1 A / 34 VDC) Input |
| Other I/O | 1 x LEMO 5-Pin Output 1 x RJ45 Output |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Video Format | SDI (10-Bit 4:2:2) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| DC Input Power | 10 to 34 VDC at 2.1 A |
| Battery Type | None |
| Mounting | 6 x 1/4"-20 Female |
| Certifications | CE, FCC, IC, RoHS *as per Manufacturer |
| Material of Construction | Aluminum |
| Dimensions | 5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm |
| Weight | 1.1 lb / 504 g |
| Package Weight | 1.985 lb |
| Box Dimensions (LxWxH) | 9.5 x 7 x 2.5" |
Teradek Bolt 6 RX 750 Monitor Module for Smart 7 Series (V-Mount) Specs
| Antenna I/O | 5 x RP-SMA Female |
| Video I/O | 1 x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (18 VDC) Input |
| Other I/O | 2 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI/Wireless UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Timecode Support | Yes |
| DC Input Power | 6 to 18 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 6 W |
| Environmental Protection | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | 10.3 oz / 292 g |
