Description
Vaxis Storm Cine 8 Overview
- 1Description
- 2Image Display Tools
- 3HDR Dynamic Compensation
- 44K 6G-SDI Input and Output
- 5Wireless Frequency Range
- 6Split Screen Capability
- 7Multiple Image Markers
- 8Anamorphic De-Squeeze Support
- 9Real-Time RGB, Y, Cbr, and Cr Values with LightMeter Function
- 10Five Mounting Points
- 11Includes Wooden Handles

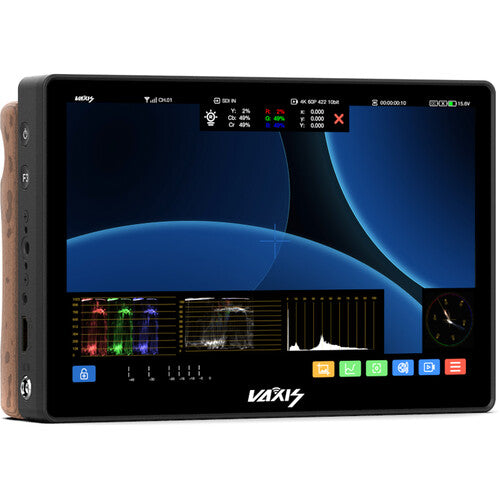

Running long cables from your camera to a video village setup or a director's monitor can be a cumbersome and literally entangling issue, making the NPF mount Storm Cine 8 Wireless Monitor from Vaxis the ideal solution for ditching the wires in both studio and on-location shoots. The integrated Vaxis wireless receiver handles signals coming from as far as 500' and in resolutions up to DCI 4K. Measuring 8.9" diagonally, the 1500 cd/m² super retina, 2560 x 1600 touchscreen display delivers 330 ppi visual clarity, viewable in daylight or brightly lit locations, without limiting you to being tethered to specific areas of your set.
The Storm Cine 8 is loaded with technical and creative tools that include 3D LUT support, waveform and vectorscope settings, and various color space options such as REC. 709, DCI-P3, and BT.2020, allowing content creators to see the footage acquired in a form closest to their intended final vision. The user-friendly touchscreen menu gives you instant access to making changes to color temperature, gamma value, and a vast range of parameters, including backlight brightness, contrast, and saturation. The monitor also supports HDR, with an option to view either PQ or HLG.

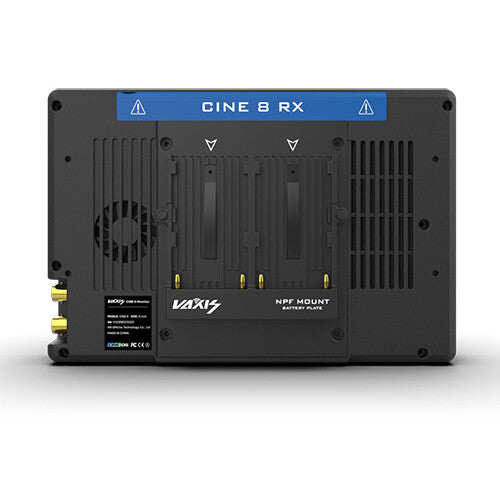

The self-developed CINE OS touch operating system is the first and only one specifically created for Vaxis, along with the AFCA intelligent focus assist algorithm, which ensures more reliable and convenient focus control. Five antenna ports on the top surface of the monitor allow you to mount any or all of the five included external antennas for better distance coverage and overall reception. Two integrated NPF mount battery plates give you the option to power the unit with two optional L-series batteries. A flight case is included for portability and storage.
- Histogram
- Waveform
- RGB-wave
- Vectorscope
- Peaking
- Zebras
- False color
- Monochrome
- Scale
- Anamorphic de-squeeze
- Safe area
- Frame markers
In the Box
- Vaxis Storm Cine 8 Wireless Monitor (NPF Mount)
- Flight Case
- 2 x Wooden Handgrip
- D-Tap to 2-Pin LEMO-Type Power Cable
- 5 x Antenna
- Screen Protector
- Limited 2-Year Manufacturer Warranty
- Description
- Image Display Tools
- HDR Dynamic Compensation
- 4K 6G-SDI Input and Output
- Wireless Frequency Range
- Split Screen Capability
- Multiple Image Markers
- Anamorphic De-Squeeze Support
- Real-Time RGB, Y, Cbr, and Cr Values with LightMeter Function
- Five Mounting Points
- Includes Wooden Handles
Vaxis Storm Cine 8 Specs
| Display Size |
8.9" / 22.6 cm
|
| Resolution |
2650 x 1600
|
| Touchscreen |
Yes
|
| Video I/O |
1x HDMI Input
1x BNC (6G-SDI) Input 1x BNC (6G-SDI) Output |
| Embedded Audio |
Wireless: 4-Channel
|
| Video Format |
HDMI/SDI/Wireless
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/48/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Battery Type |
2x L-Series
|
| Power Consumption |
21 W
|
| Mounting |
5x 1/4"-20 Female
|
| Panel Type |
OLED
|
| Display Size |
8.9" / 22.6 cm
|
| Resolution |
2650 x 1600
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Color Temperature Selection, False Color, Focus Assist, Focus Peaking, Histogram, Picture-in-Picture, R/G/B/Chroma Only, Screen Split - Half, Vectorscope, Waveform, Zebra
|
| Antenna I/O |
5x F-Type Female
|
| Video I/O |
1x HDMI Input
1x BNC (6G-SDI) Input 1x BNC (6G-SDI) Output |
| HDCP Support |
Not Specified by Manufacturer
|
| Embedded Audio |
Wireless: 4-Channel
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1x LEMO 2-Pin Input
|
| Other I/O |
1x USB-C Input
|
| Wireless Range |
500' / 152.4 m
|
| Frequency Range |
5.1 to 5.9 GHz
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Cellular Support |
No
|
| Video Format |
HDMI/SDI/Wireless
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/48/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format |
4-Channel
|
| Timecode Support |
Yes
|
| DC Input Power |
8 to 18 VDC
|
| Battery Type |
2x L-Series
|
| Power Consumption |
21 W
|
| Mounting |
5x 1/4"-20 Female
|
| Environmental Protection |
No
|
| Dimensions |
8.5 x 5.7 x 1.1" / 216 x 144 x 28.6 mm, Excluding Battery Plate
|
| Weight |
1.8 lb / 816 g
|
