Description
Viltrox DC-550 PRO Overview

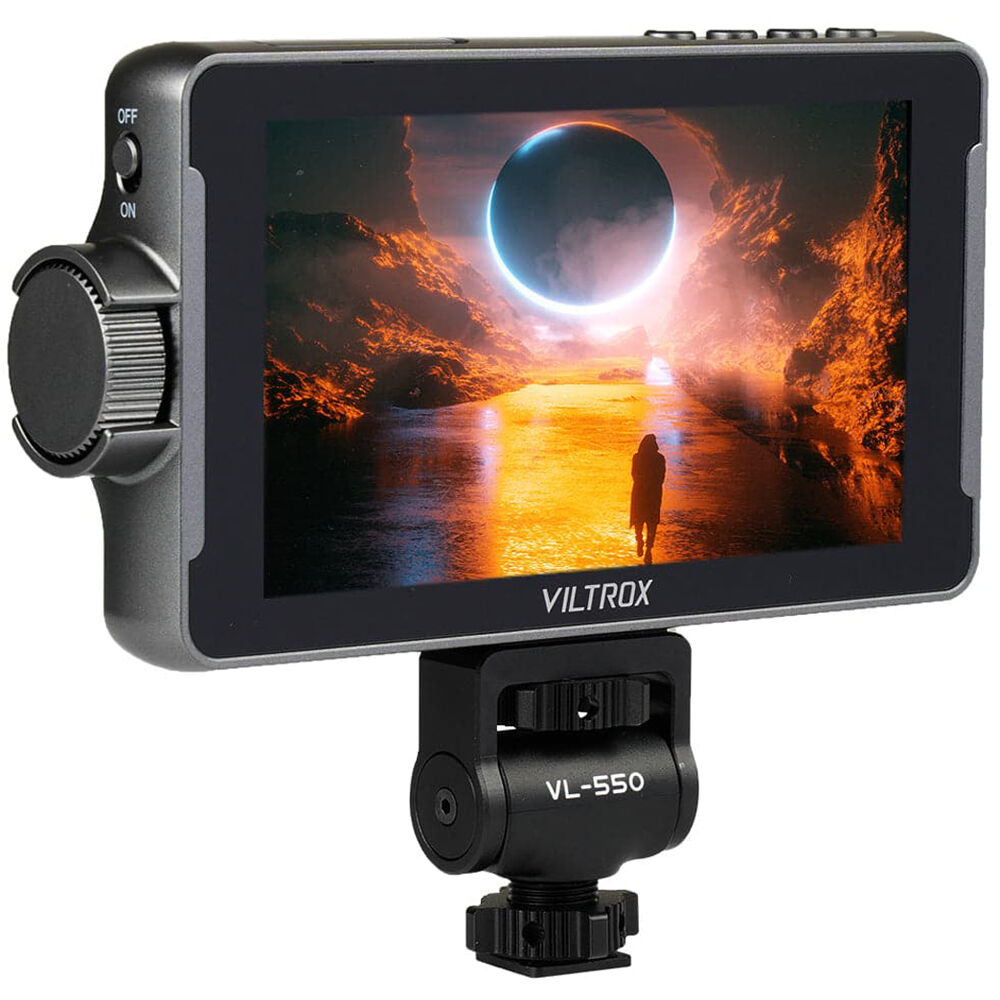

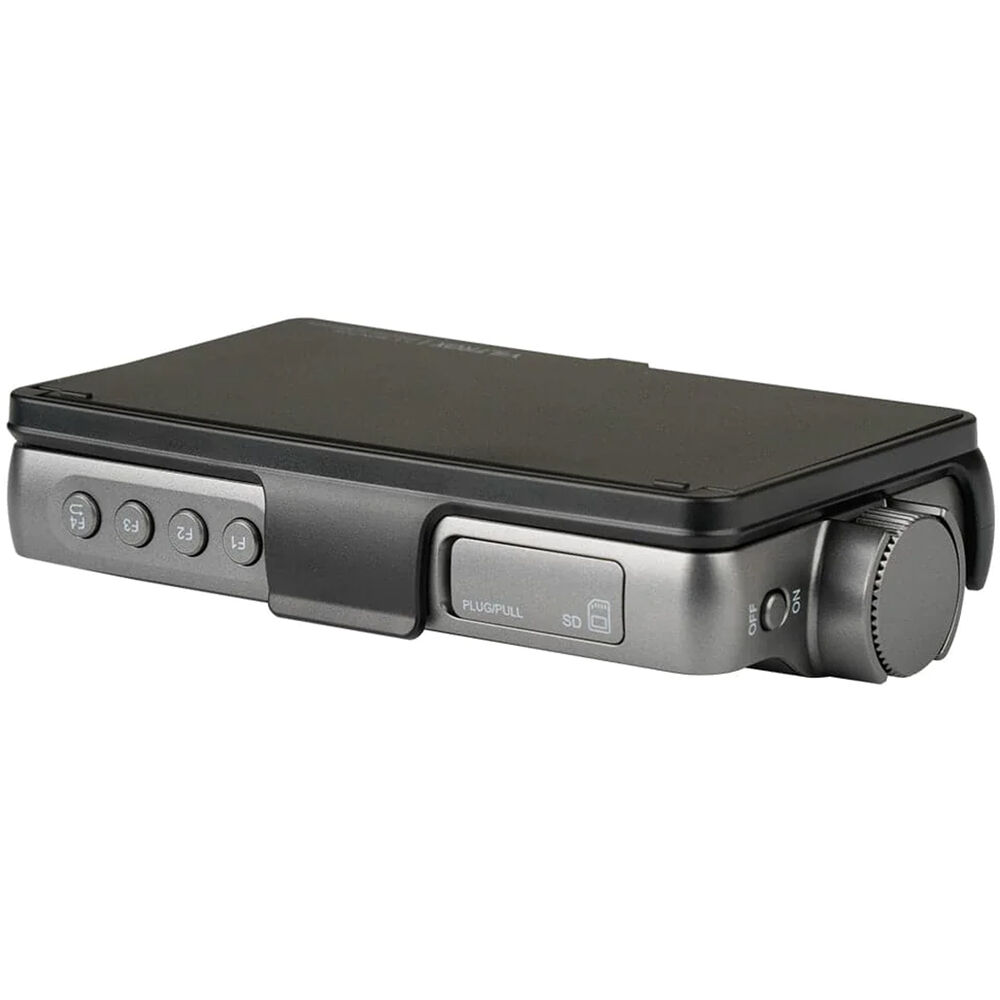

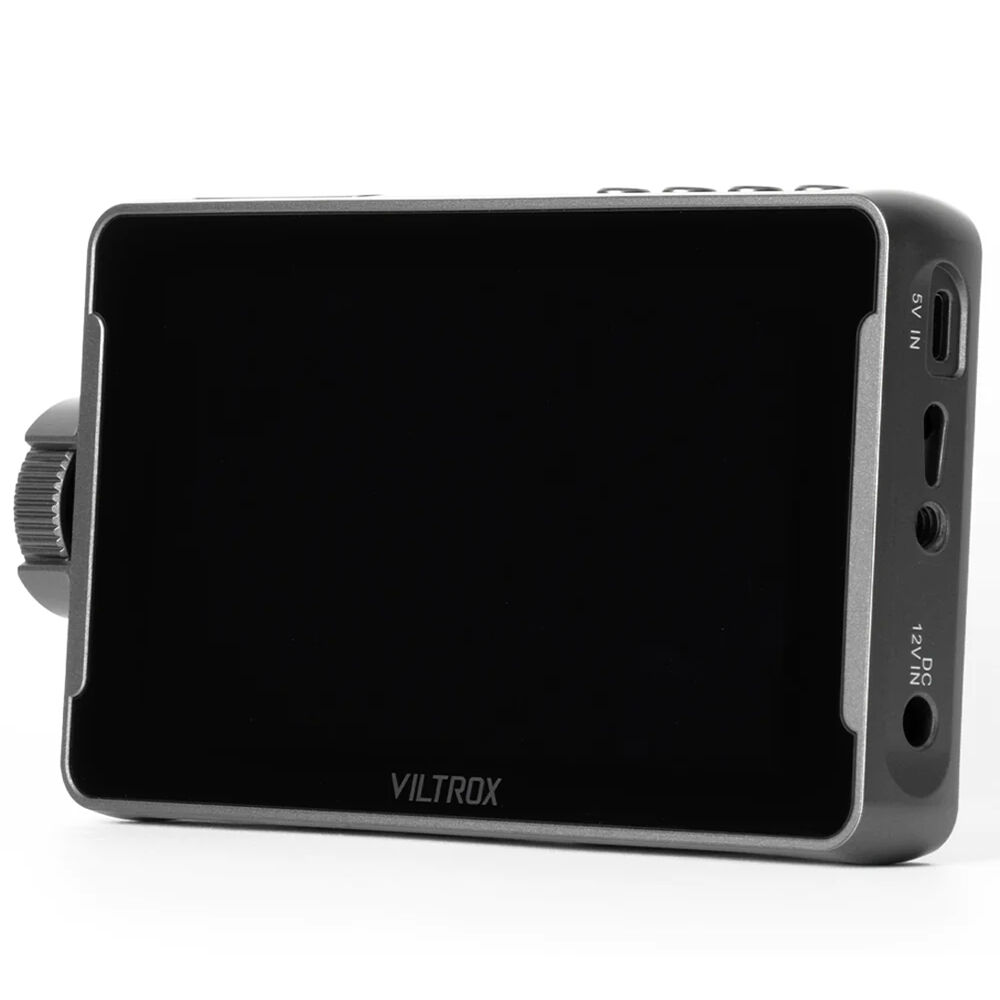

The lightweight DC-550 PRO 5.5" Touchscreen HD Monitor from Viltrox lets you view your camera's image on a bright, sharp 5.5" display. The DC-550 PRO supports up to 4K30 video input and can send the signal through an HDMI loop-through output. This PRO model features two additional histograms, three parade waveforms, a cooling fan, and 1200 cd/m² brightness, making it suitable for outdoor use.

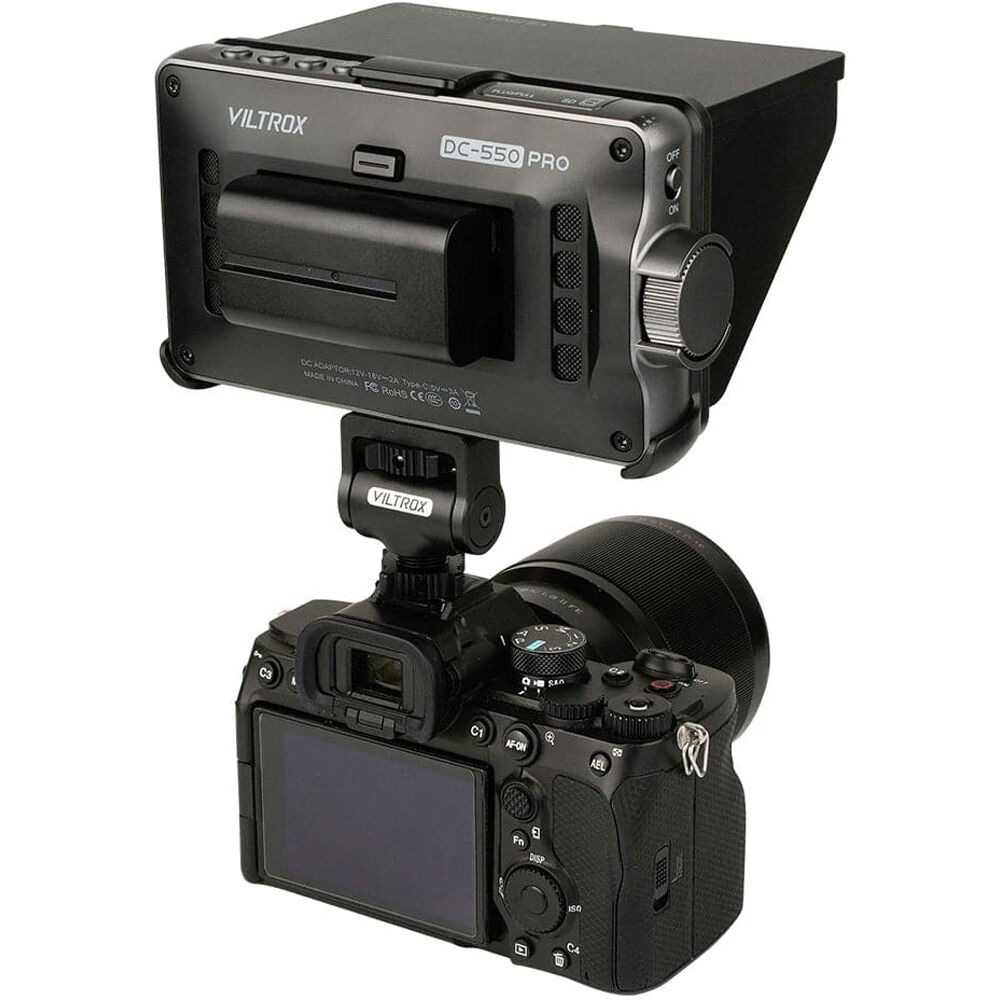

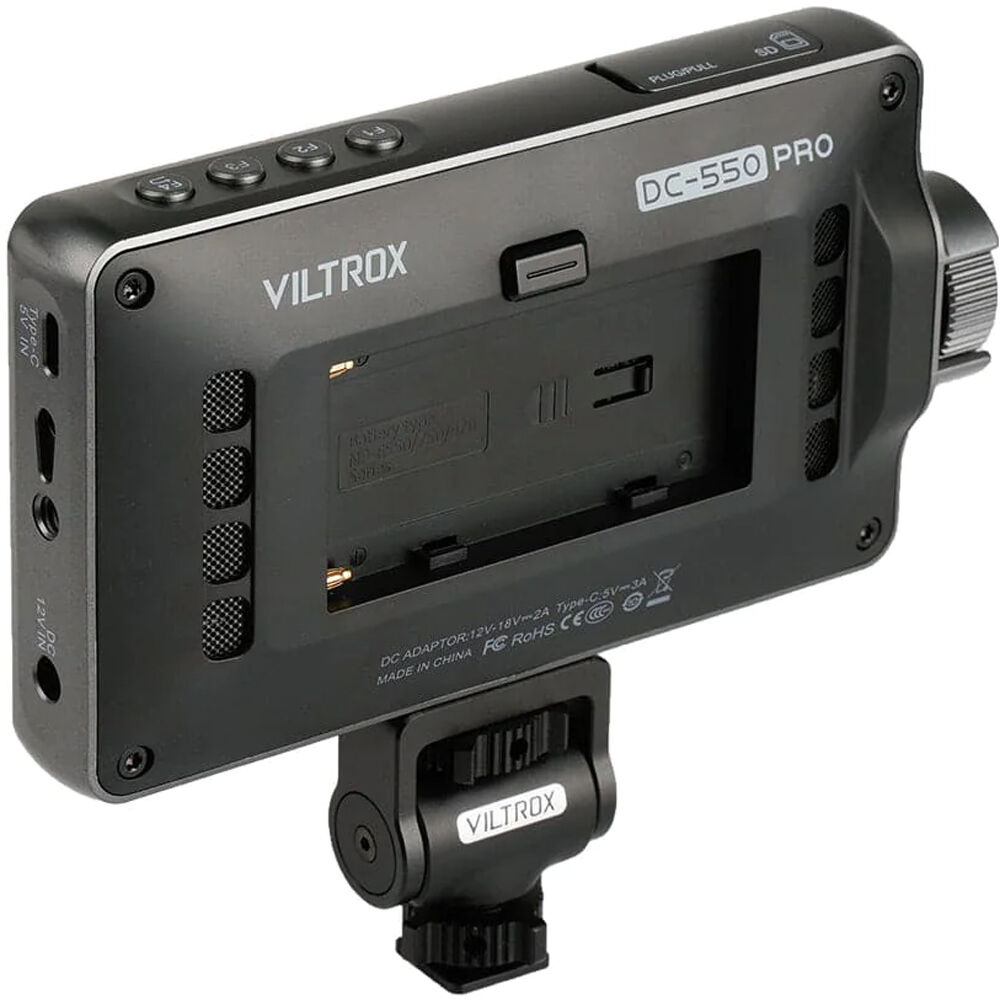

The DC-550 PRO features a 1920 x 1080 touchscreen display that supports live view from your camera, and it provides image tools such as peaking, color temperature, tone, pixel-to-pixel zoom, brightness, and contrast. You can monitor the audio via its built-in speaker or 3.5mm headphone port. At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with the L-series battery, or you can power it with a separately available AC adapter.
In the Box
- Viltrox DC-550 PRO 5.5" Touchscreen HD Monitor

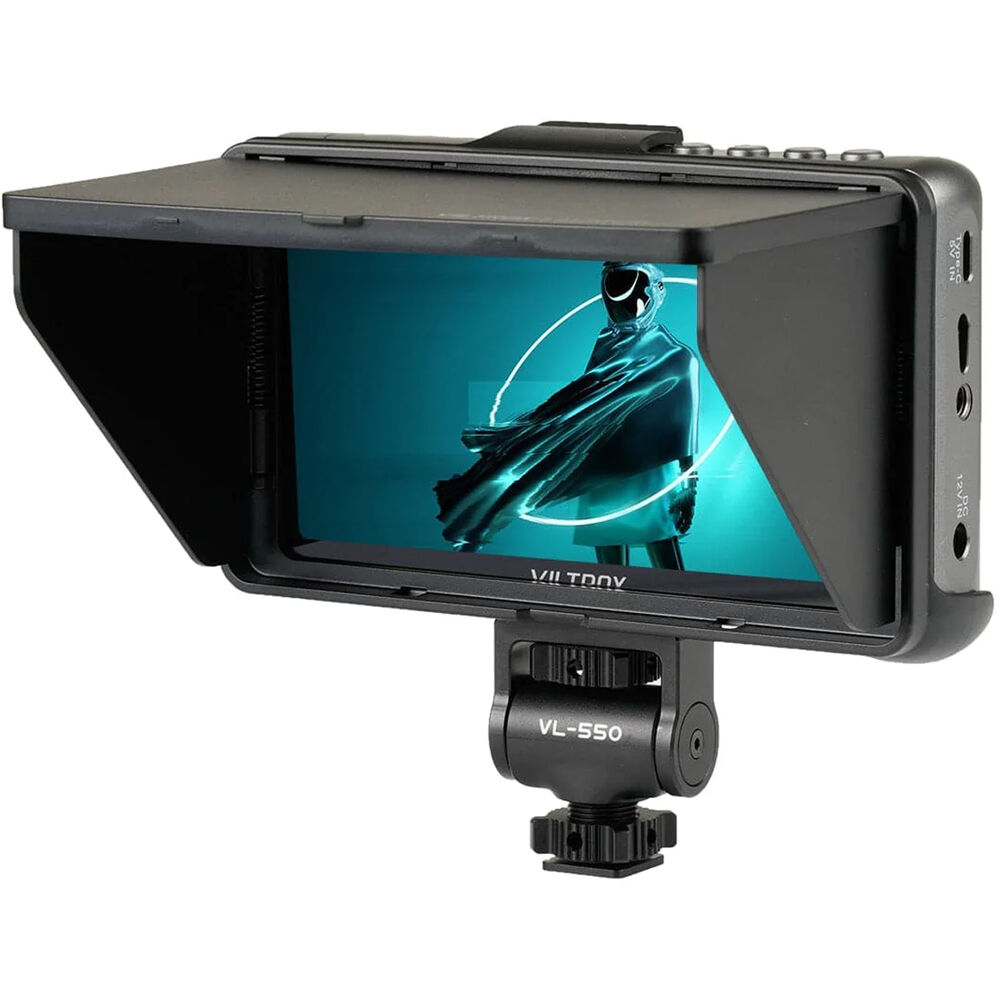

- Sun Hood
- L-Series Battery
- Shoe Mount Adapter
- HDMI Type A to HDMI Type A Cable
- HDMI Type A to Mini-HDMI Cable
- USB-C Cable
- Storage Box
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Viltrox DC-550 PROSpecs
| Display Size |
5.5" / 14.0 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
|
| Video Format |
HDMI
DCI 4K: 30/25/24 UHD 4K: 30/25/24 1080p |
| Battery Type |
1x L-Series
|
| Panel Type |
TFT LCD
|
| Display Size |
5.5" / 14.0 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1200 nits / cd/m2 (Peak)
|
| HDR Support |
No
|
| Pixels Per Inch (ppi) |
400 ppi
|
| LUT Support |
No
|
| Image Controls |
False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform
|
| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Input
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (2 A / 12 VDC) Input
1x USB-C (3 A / 5 VDC) Input |
| Other I/O |
No
|
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
DCI 4K: 30/25/24 UHD 4K: 30/25/24 1080p |
| Gamma Curve |
Rec709
|
| Input Power |
12 to 18 VDC at 2 A
|
| Battery Type |
1x L-Series
|
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Material of Construction |
Aluminum
|
| Dimensions |
6.5 x 3.6 x 1.1" / 16.5 x 9.1 x 2.9 cm
|
| Weight |
9.88 oz / 280.00 g
|
| Package Weight |
2.105 lb
|
| Box Dimensions (LxWxH) |
10.8 x 6.1 x 2.8"
|
