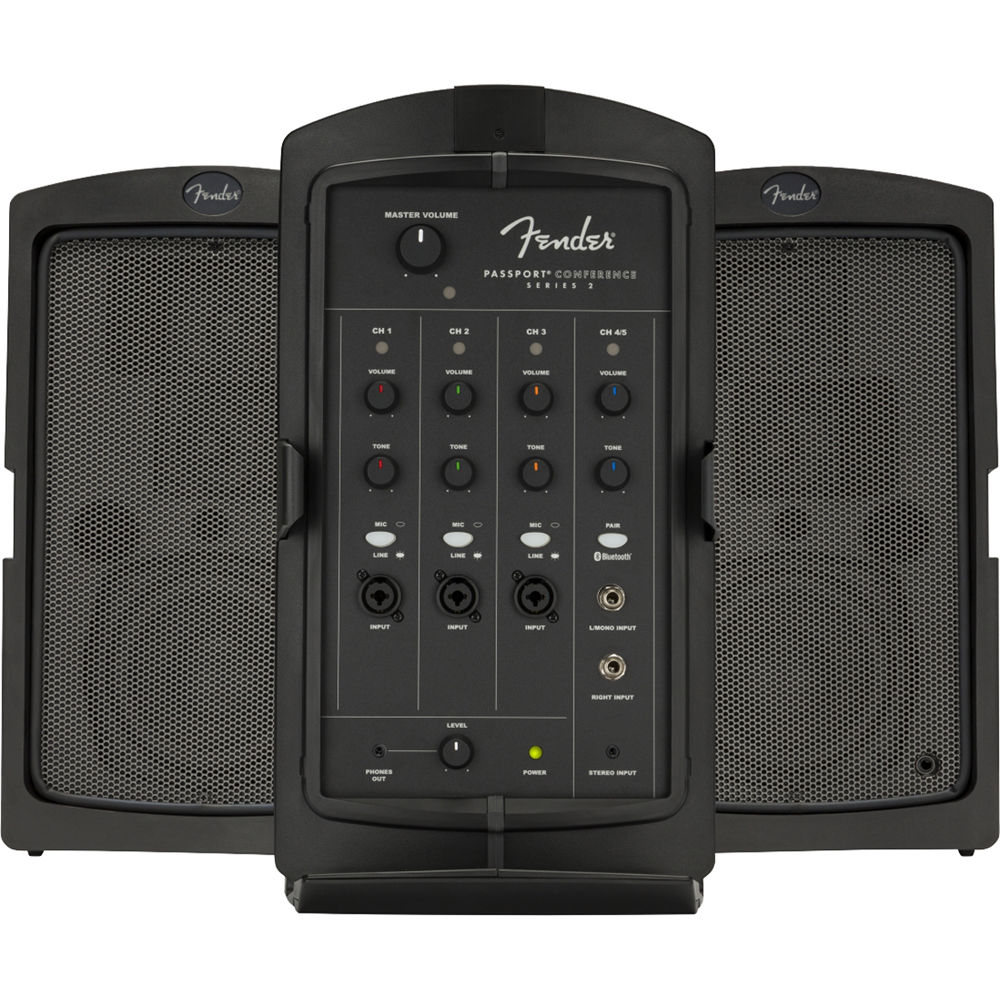

Fender Passport Conference Series 2 Portable Powered PA System (175W)

For Small- to Medium-Sized Audiences

Self-Contained Suitcase Style

Detachable Speakers with 5.25" Woofers

5-Channel (7-Input) Powered Mixer

Designed for education, sporting events, houses of worship, meetings, seminars, musical performances, parties, small clubs, and coffeehouses, the Fender Passport Conference Series 2 is a self-contained portable audio system that provides everything needed to deliver amplification to a small- to medium-sized audience. Channels 1-3 feature combo XLR-1/4" mic/line inputs with a dedicated volume and tone control.

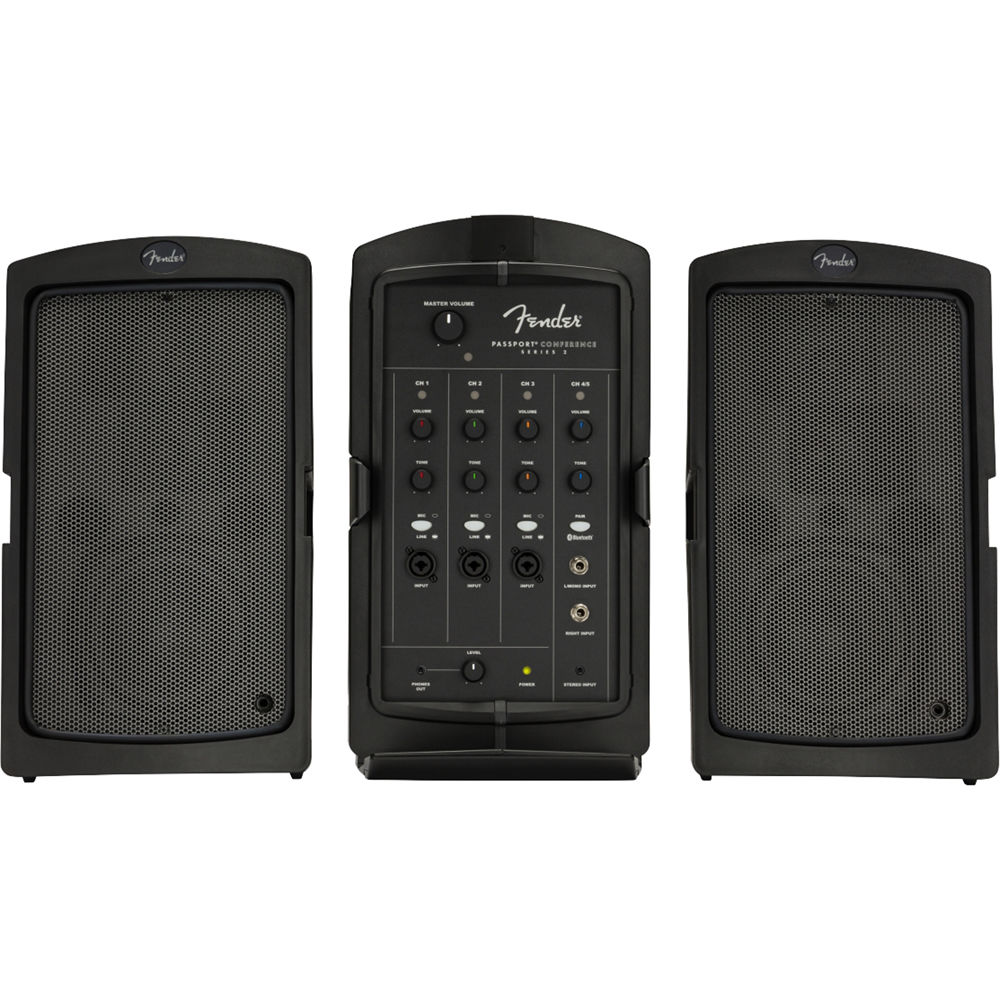

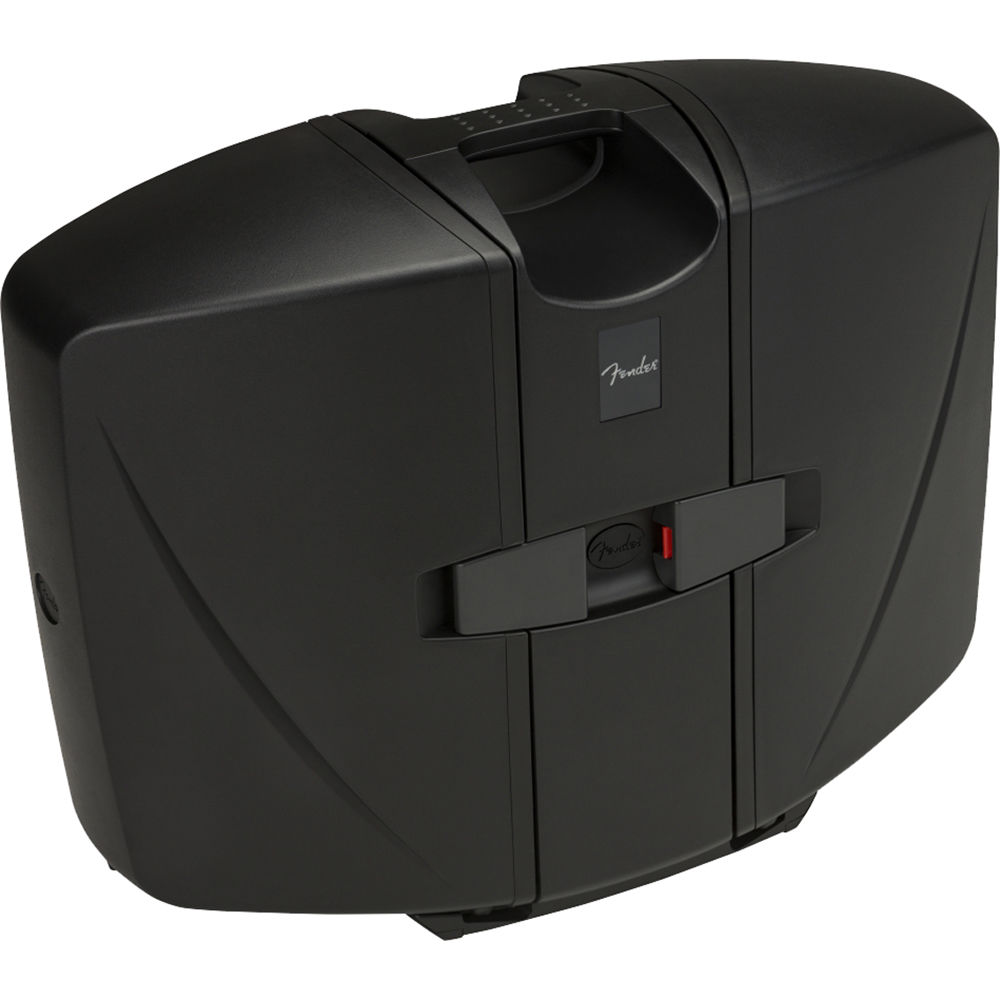

Channels 4/5 (L/Mono & R) offer two 1/4" inputs as well as a stereo 3.5mm connector, and a built-in Bluetooth receiver for streaming audio wirelessly from a phone or tablet. The unit's ease of operation is great for the layperson who needs quality with simple functionality. The Passport can be transported like a suitcase and with a simple flip of the cabinet latches, the system is ready for setup. Inside are two full-range speaker cabinets, a 175W powered mixer, and speaker cables.

• All-in-one suitcase-style PA system
• Five-channel 175W powered mixer
• Two detachable speakers, each with a 5.25" woofer and two 2.75" articulated HF tweeters
• Seven inputs (3 x XLR-1/4" combo, 1 x stereo 1/4�, 1 x stereo 3.5mm + stereo Bluetooth)
• Bluetooth connectivity
• 3.5mm stereo line output with level control
• Includes two speaker cables

UPC: 885978347209

Speaker Configuration	2 x 2-Way Loudspeakers
Number of Input Channels	5 (3 x Mono, 1 x Stereo)
Amplifier Power Rating	175 W
Amplifier Class	Class-D

Enclosure Type	Speaker: Bass-Reflex
HF Driver	2 x 2.75" / 70 mm Tweeter (per Speaker)
LF Driver	1 x 5.25" / 133 mm Woofer (per Speaker)

EQ

Yes

Audio I/O	3 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input 2 x 1/4" Female Unbalanced Line Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input 1 x 1/8" / 3.5 mm TRS Female Headphone Output 2 x 1/4" TS Female Speaker Output
Wireless Connectivity	Bluetooth

AC Input Power	User Selectable: 100 to 240 VAC, 50 / 60 Hz (T 4 A H 250 V)
Power Consumption	225 W (Max)
AC Power Connector	1 x IEC Input

Transport Options	1 x Handle (Top)
Construction Material	Plastic
Dimensions	25 x 19 x 10" / 63.5 x 48.26 x 25.4 cm
Weight	31 lb / 14.06 kg

Package Weight	39.735 lb
Box Dimensions (LxWxH)	27.5 x 20.6 x 11.4"
