Fender Passport Venue Series 2 Portable Powered PA System (600W)

For Larger-Sized Audiences

Self-Contained Suitcase Style

Detachable Speakers with 10" Woofers

10-Channel (13-Input) Powered Mixer

Designed for education, sporting events, houses of worship, meetings, seminars, and musical performances, the flagship Fender Passport Venue Series 2 is a self-contained portable PA system that provides everything needed to deliver amplification to a larger audience. Great for amplifying voices, instruments, and background music anywhere, anytime.

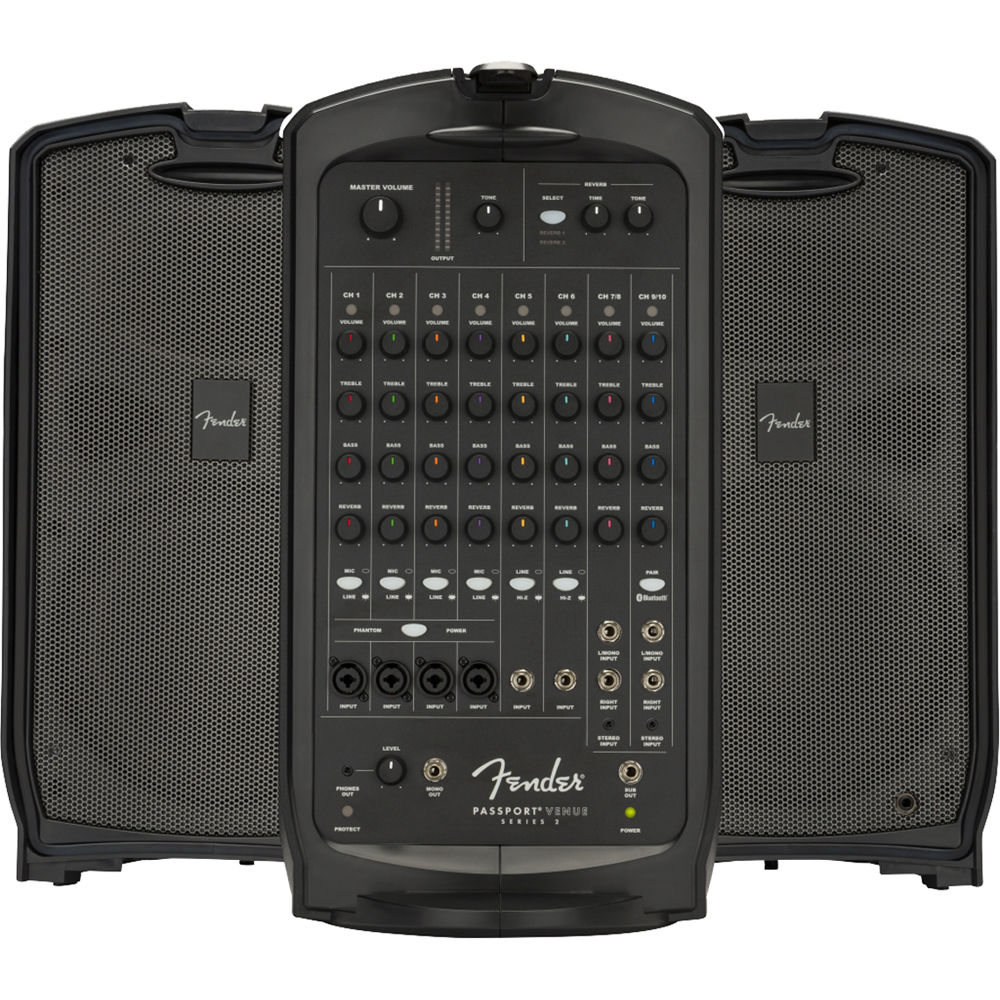

All input channels include volume, treble & bass, and reverb controls. Channels 1-4 feature combo XLR-1/4" mic/line inputs, while channels 5 & 6 utilize single 1/4" line / Hi-Z inputs accommodating instruments, such as guitars. Channels 7/8 & 9/10 (L/Mono & R) offer two 1/4" inputs as well as two stereo 3.5mm connectors. A built-in Bluetooth receiver is available on channels 9/10 for streaming audio wirelessly from a phone or tablet. A master volume and tone control are included as well as a dedicated reverb select button, reverb time, and reverb tone control, to help you dial in the perfect settings.

For outputs, the Passport Venue Series 2 includes a 3.5mm headphone output as well as a 1/4" mono output for connecting to a powered monitor, which allows artists to hear themselves while performing. Should you wish to add more bass to your system, the 1/4" sub output is designed to connect to a dedicated subwoofer. Simply connect your subwoofer and set its crossover to 120 Hz. External subwoofer use automatically removes signals below 120 Hz from main Passport amp and speakers.

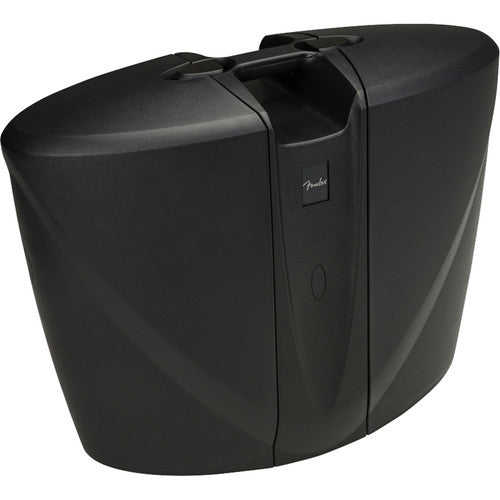

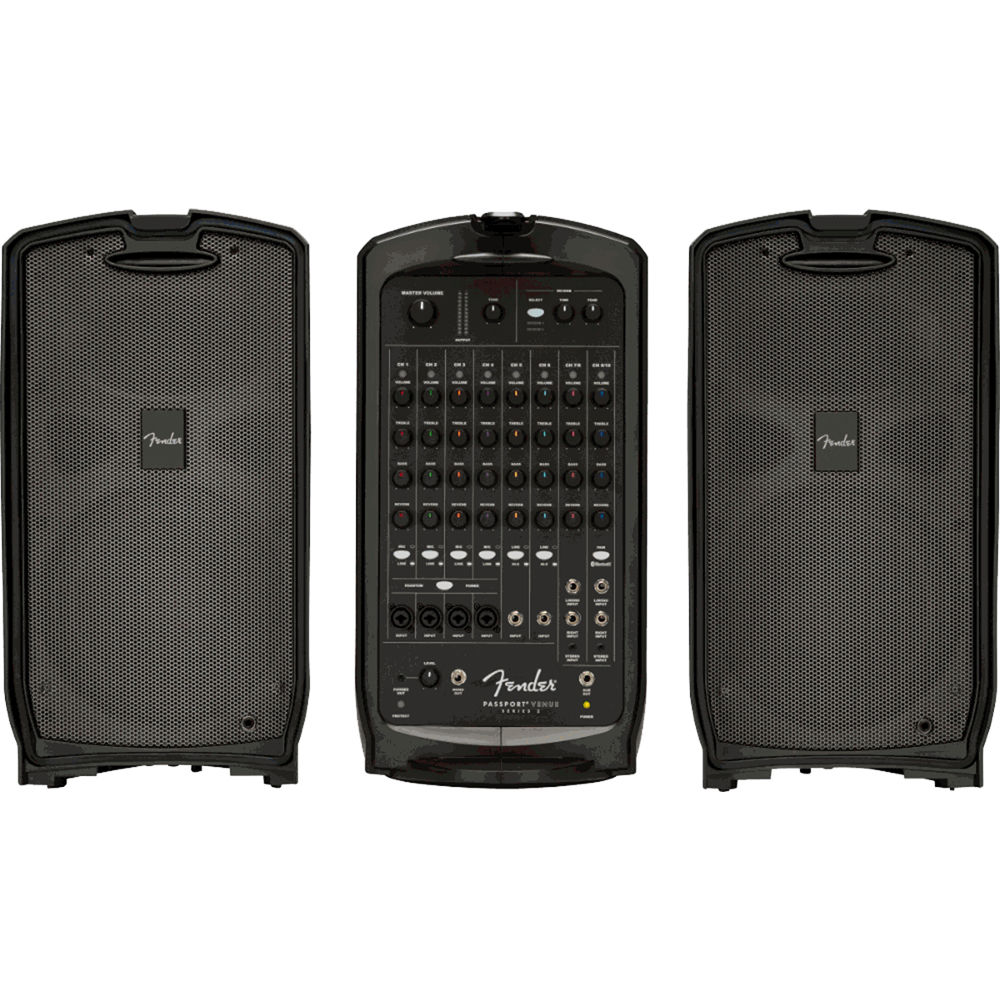

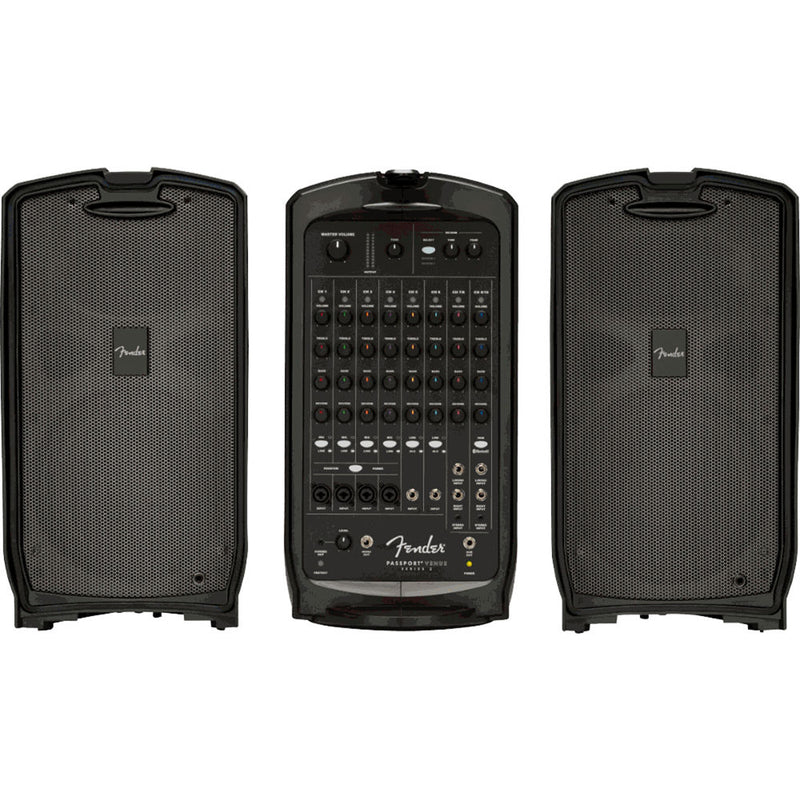

The unit's ease of operation is great for the layperson who needs quality with simple functionality. The Passport can be transported like a suitcase and with a simple flip of the cabinet latches, the system is ready for setup. Inside are two full-range speaker cabinets, a 600W powered mixer, and speaker cables.

General Features

• All-in-one suitcase-style PA system
• 10-channel 600W powered mixer
• Two detachable speakers, each with an 10" woofer and a 1.2" horn-loaded tweeter
• 13 inputs (4 x combo XLR-1/4", 2 x mono 1/4" line / Hi-Z, 2 x stereo 1/4�, 2 x stereo 3.5mm + stereo Bluetooth)
• Bluetooth connectivity
• 3.5mm stereo headphone output with level control
• Mono and Sub outputs
• Includes two speaker cables

Hi-Z Line Switch

• Front-panel instrument/line switching lets you choose the correct impedance for either mic/line level or instruments

Reverb

• Front-panel reverb controls for each channel
• Dial in just the right amount of the spacious effect
• Creates ambient depth from subtle to cavernous

1/4" Sub Output

• Designed for use with a powered subwoofer
• Helps bring out the best clear and powerful low end in your performance or presentation
• Includes automatic high-pass filter

Bluetooth

• Bluetooth connectivity for easy streaming of wireless audio from mobile devices

UPC: 885978347421

Speaker Configuration	2 x 2-Way Loudspeakers
Number of Input Channels	10 (6 x Mono, 2 x Stereo)
Amplifier Power Rating	600 W
Amplifier Class	Class-D

Enclosure Type	Speaker: Bass-Reflex
HF Driver	1 x 1.2" / 30 mm Horn-Loaded Tweeter (per Speaker)
LF Driver	1 x 10" / 254 mm Paper (per Speaker)

Input Pad	None
EQ	HF Shelf (per Channel) LF Shelf (per Channel)
Effects	Reverb
Filters	1 x High-Pass: 120 Hz

Audio I/O

4 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input 2 x 1/4" TS Female Unbalanced Line/Hi-Z Input 4 x 1/4" TS Female Unbalanced Line Input 2 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input 1 x 1/4" TS Female Unbalanced Line Output 1 x 1/4" TS Female Unbalanced Subwoofer Output 1 x 1/8" / 3.5 mm TRS Female Headphone Output

Bluetooth	Yes
Pairing	Manual

AC Input Power	User Selectable: 100 to 120 VAC, 50 / 60 Hz (T 10 A H 250 V)  220 to 240 VAC, 50 / 60 Hz (T 10 A H 250 V)
Power Consumption	750 W (Max)

Transport Options	1 x Handle (Top)
Mounting	2 x Pole Socket (Bottom)
Construction Material	Plastic
Dimensions	29 x 23 x 11" / 73.66 x 58.42 x 27.94 cm
Weight	44 lb / 19.96 kg

Package Weight	56 lb
Box Dimensions (LxWxH)	31.5 x 24.75 x 14.25"
