Description

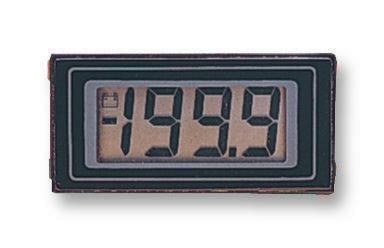

The DPM 125 is a 3.5-digit LCD Voltmeter is ideally suited for low or high volume applications. It features an exceptionally large display. The 3.5-digit LCD module/meter will plug directly into a SIL socket or can be panel mounted using the snap in bezel provided. The low profile bezel incorporates a flat reverse printed window giving a superb appearance that cannot be damaged or rubbed of by contact.
- Logic selectable decimal points
- 12.5mm Digit height
- Low battery indication
- Auto-zero and Auto-polarity
- -0 to 50°C Operating temperature range
Applications
Power Management, System Monitoring, Automation & Process Control
Footnotes
The meter will have to be re-calibrated by adjusting the calibration pot.
Product details
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 50°C |
| No. of Digits / Alpha | 3-1/2 |
| Digit Height | 12.5mm |
| Panel Cutout Height | 45mm |
| Product Range | - |
| Meter Range | 0mV to 200mV |
| Supply Voltage Min | 7.5VDC |
| Meter Function | DC Voltage |
| Supply Voltage Max | 14VDC |
| Panel Cutout Width | 22.2mm |
Other details
| Brand | LASCAR |
| Part Number | DPM 125 |
| Quantity | Each |
| Technical Data Sheet EN |  |
