Description

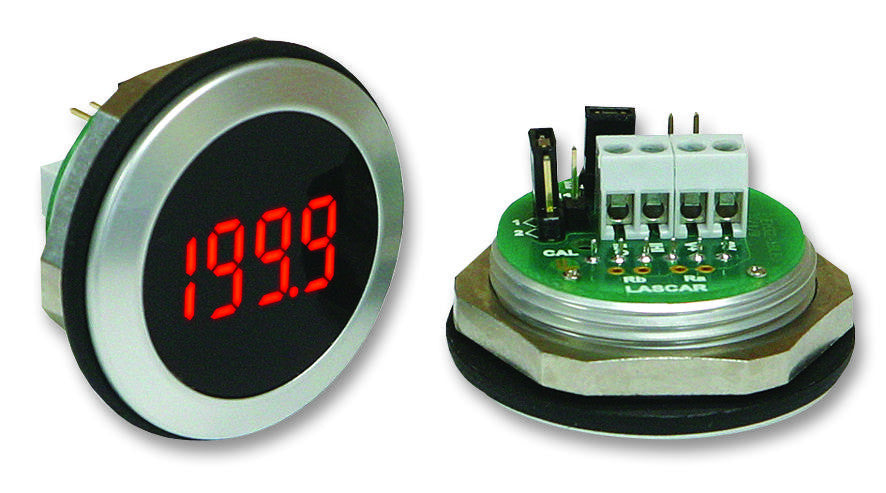

The EM32-1B-LED is a 3.5-digit LED Voltmeter which is designed to be panel mounted in most low and medium volume applications. It is designed so no soldering is required. Connection is via screw terminals and options are selected via jumper links. The module features a round metal bezel, requiring a 32.5mm diameter cut-out. It is secured with the nut provided. Protection from the front to IP67/NEMA 4X standards is achieved by placing the rubber seal between the module and panel during assembly.
- Selectable decimal points
- 8mm Digit height
- Auto-zero and Auto-polarity
- -0 to 50°C Operating temperature range
Applications
Automation & Process Control, Automotive
Product details
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 50°C |
| No. of Digits / Alpha | 3-1/2 |
| Digit Height | 8mm |
| Panel Cutout Height | 23.5mm |
| Product Range | - |
| Meter Range | 0mV to 200mV |
| Supply Voltage Min | 4.75V |
| Meter Function | DC Voltage |
| Supply Voltage Max | 5.25V |
| Panel Cutout Width | - |
Other details
| Brand | LASCAR |
| Part Number | EM32-1B-LED |
| Quantity | Each |
| Technical Data Sheet EN |  |
