Description

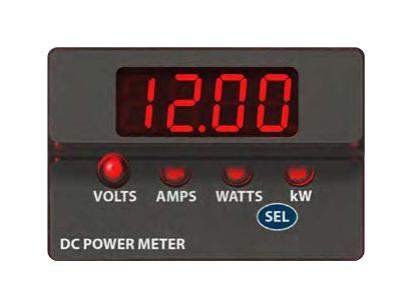

This is a Power Meter, DCM20 Series, Three Function, Voltage, Amperage, Power, Red LED, 4 Digit product from MURATA POWER SOLUTIONS with the model number DCM20-1-DC5-R-C
Product details
| No. of Digits / Alpha | 4 |
| Meter Function | DC Current / DC Voltage / Power |
| Meter Range | 0A to 1200A / 0.5V to 72V / 0W to 96kW |
| Digit Height | 9.14mm |
| Panel Cutout Height | 22.23mm |
| Panel Cutout Width | 37.47mm |
| Supply Voltage Min | 9VDC |
| Supply Voltage Max | 72VDC |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 60°C |
| Product Range | DCM20 Series |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | DCM20-1-DC5-R-C |
| Quantity | Each |
| Technical Data Sheet EN |  |
