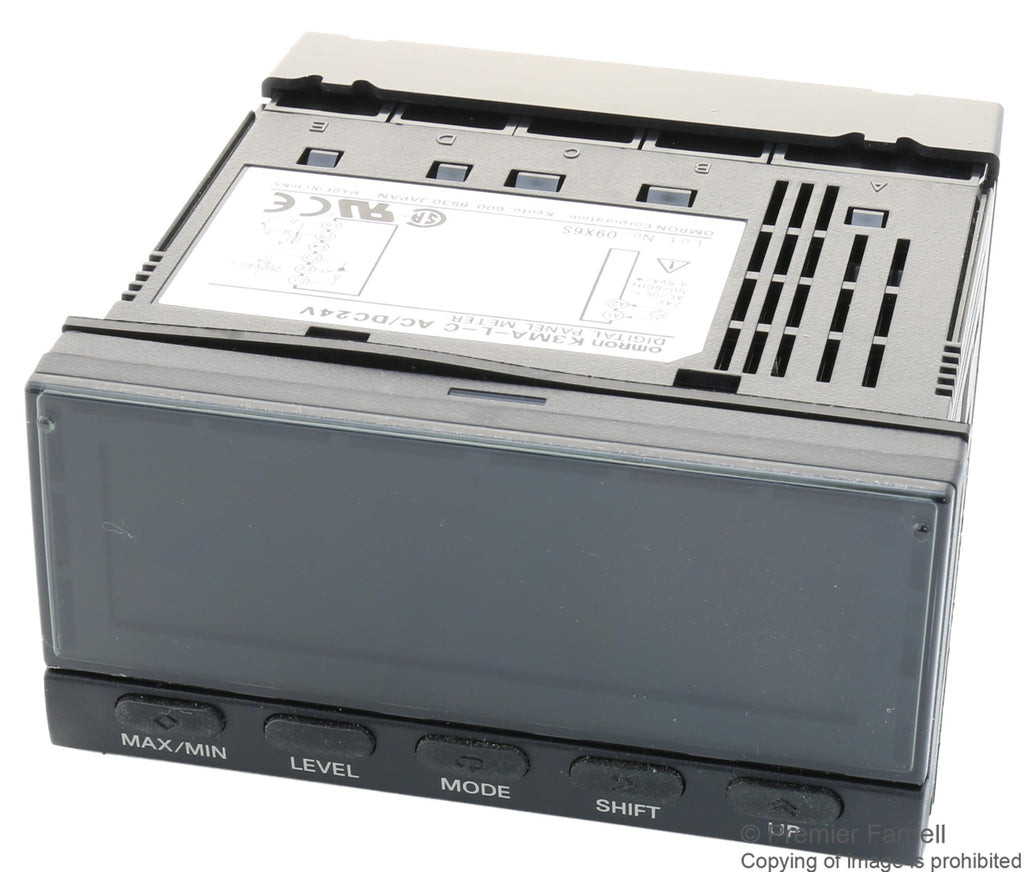

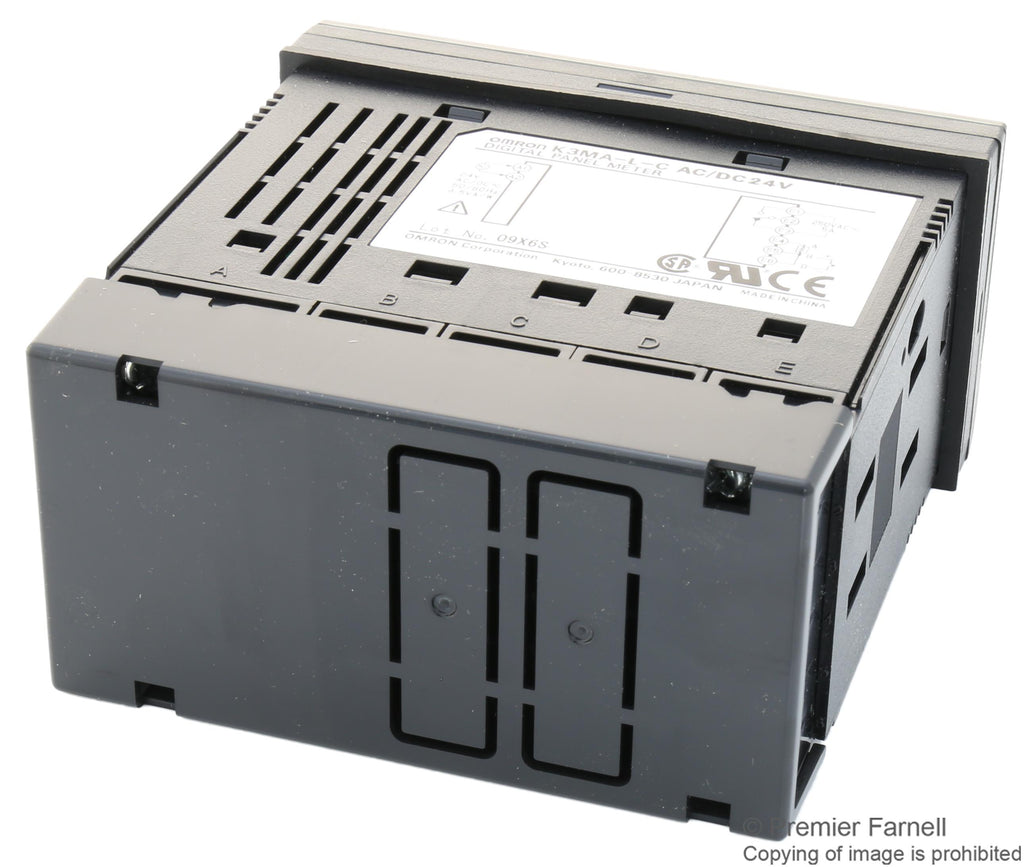

The K3MA-L-C 24VAC/DC is a 4-digit Temperature Meter offers high visible LCD backlit display with 2-colour (red and green) LEDs. It has platinum-resistance thermometer or thermocouple input and 1 relay contact output (SPDT). It features 20MR minimum insulation resistance (at 500VDC) between external terminal and case, the insulation provided between inputs, outputs and power supply. 2000VAC for 1 minute between external terminal and case, the insulation provided between inputs, outputs and power supply dielectric withstand voltage.
- Front-panel key operation for easy setting
- Average processing function suppresses flicker
- Temperature input shift and temperature unit selection functions
- Easy confirmation of maximum/minimum display
- Finger protective cover protects against electric shock
- IP66/NEMA-4X Protection rating
- Short 80mm depth
- 20000000 Times minimum mechanical life
- 100000 Times minimum electrical life
Applications
Industrial, Clock & Timing
Product details
| No. of Digits / Alpha |
4 |
| Meter Function |
Temperature |
| Meter Range |
-200°C to +850°C, -300°F to +1500°F |
| Digit Height |
14.2mm |
| Panel Cutout Height |
45mm |
| Panel Cutout Width |
92mm |
| Supply Voltage Min |
- |
| Supply Voltage Max |
24V |
| Operating Temperature Min |
-10°C |
| Operating Temperature Max |
55°C |
| Product Range |
- |
Other details
| Brand |
OMRON |
| Part Number |
K3MA-L-C 24VAC/DC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
