Description

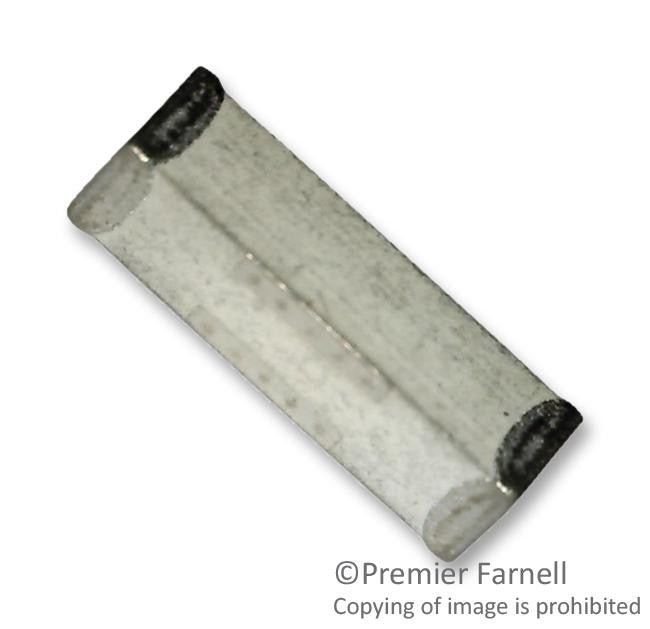

The 2450AT43B100E is a miniature RF ceramic chip antenna. These are made using Low Temperature Cofired Ceramic (LTCC) technology which has the ability to embed low and high dielectric constants inside the antenna. This enables them to have great detuning resilience and extreme temperature stability (approximately 2ppm) behaviour.
- 7020 case size
- 2X-3X higher dielectric constant than any FR4, PCB or standard plastics
- High reliability
- Frequency range from 2400MHz to 2500MHz
- Peak gain typically 1.3dBi
- Average gain typically -0.5dBi
- Minimum return loss is 9.5dB
- Maximum input power is 2W
- Impedance is 50 ohm
- Operating temperature range -40°C to +85°C
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Antenna Case Size | 7mm x 2mm x 2mm |
| Centre Frequency | 2.45GHz |
| Product Range | - |
Other details
| Brand | JOHANSON TECHNOLOGY |
| Part Number | 2450AT43B100E |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
