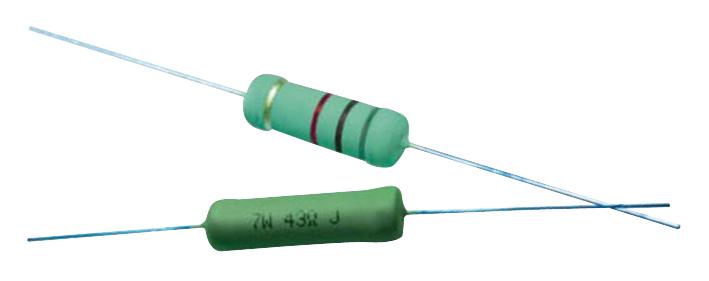

The MCKNP series is a Wire-wound Resistor with a rod type ceramic body and tin-plated iron surface steel end cap. This MCKNP series through hole fixed resistor features annealed copper coated with tin lead wire, insulated and non-flame paint coating. This resistor can be joined by welding. No evidence of flaming or arcing. The terminal leads shall be bent through 90° at a point of about 6mm from the body of the resistor and shall be rotated through 360° about the original axis of the bent terminal in alternating direction for a total of 3 rotations.
- Non-inductive type
- Excellent flame resistance
- 70°C Ambient temperature
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Product details
| Resistance |
0.15ohm |
| Product Range |
MCKNP Series |
| Power Rating |
3W |
| Resistance Tolerance |
± 5% |
| Resistor Case Style |
Axial Leaded |
| Voltage Rating |
- |
| Resistor Element Type |
Wirewound |
| Temperature Coefficient |
± 400ppm/°C |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCKNP03SJ015KA19 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
