Description

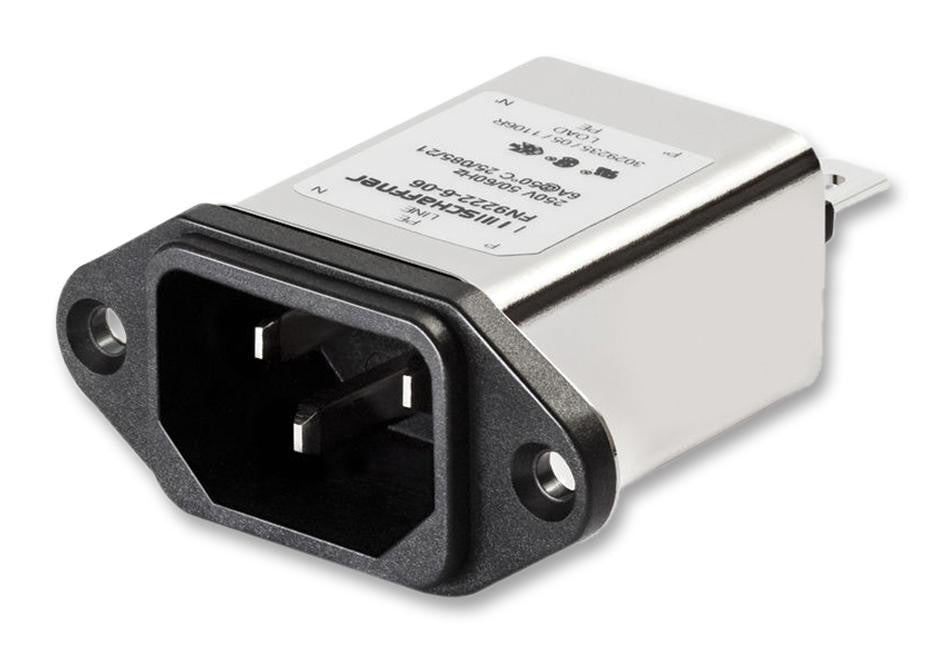

The FN9222-10-06 is a 11.6A General Performance Filter combines an IEC inlet and mains filter with excellent filter attenuation in a small form factor. Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour. Different output connections offering maximum flexibility for assembly.
- DC to 400Hz Operating frequency
- UL94V-2 Flammability rating
- -25 to 85°C Operating temperature range
- IP40 Protection rating
Applications
Industrial, Consumer Electronics, Power Management, Test & Measurement, Medical
Product details
| Leakage Current Max | 373µA |
| Capacitance | - |
| Filter Type | EMI, RFI |
| Filter Terminals | Quick Connect |
| Inductance Min | 225µH |
| Current Rating | 11.6A |
| Product Range | - |
| Voltage Rating | 250VAC |
Other details
| Brand | SCHAFFNER |
| Part Number | FN9222-10-06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
