Description

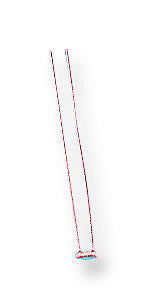

The NSL 19M51 from Advanced Photonix is a CdS photoconductive cell in TO-18 ceramic plastic encapsulated for moisture resistance.
- Maximum light resistance of 100kohm at 10lux
- Dark resistance of 20Mohm
- Power dissipation at 25�C is 50mW
- Voltage rating (peak AC or DC) is 100V
- Operating temperature range from -60�C to 75�C
- Spectral peak wavelength of 550nm
Applications
Industrial
Product details
| Dark Resistance | 20Mohm |
| Power Rating | 50mW |
| Resistance @ Lux | 5kohm |
| Packaging | Each |
| Operating Temperature Min | -60�C |
| Product Range | - |
| Resistor Case Style | TO-18 |
| Operating Temperature Max | 75�C |
| Voltage Rating | 100V |
Other details
| Brand | ADVANCED PHOTONIX |
| Part Number | NSL 19M51 |
| Quantity | Each |
| Technical Data Sheet EN |  |
