Description
IOGEAR UpStream Pro Overview
- 1Description
- 2Dual 4K HDMI Input, 1080p UVC Output
- 3Stream via Laptop or Android Device
- 4UpStream Essentials iOS/Android App

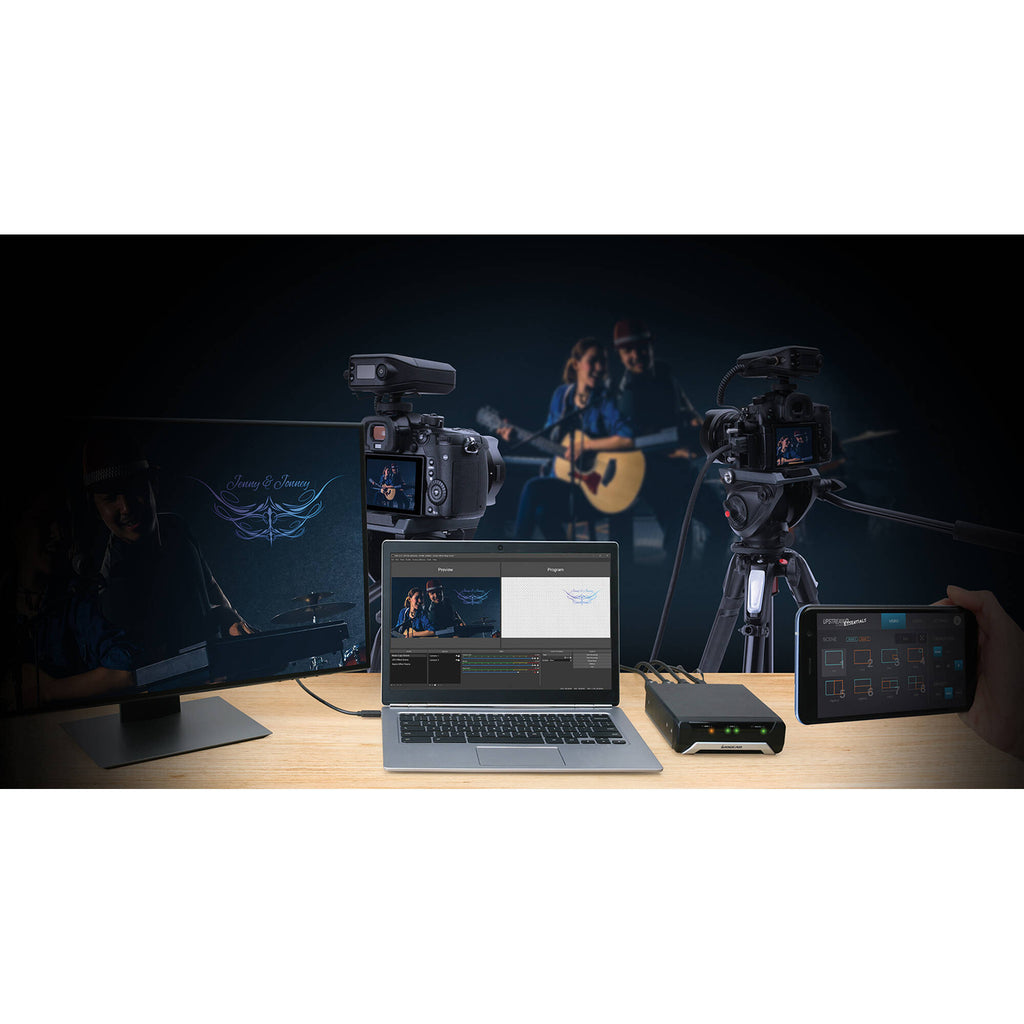

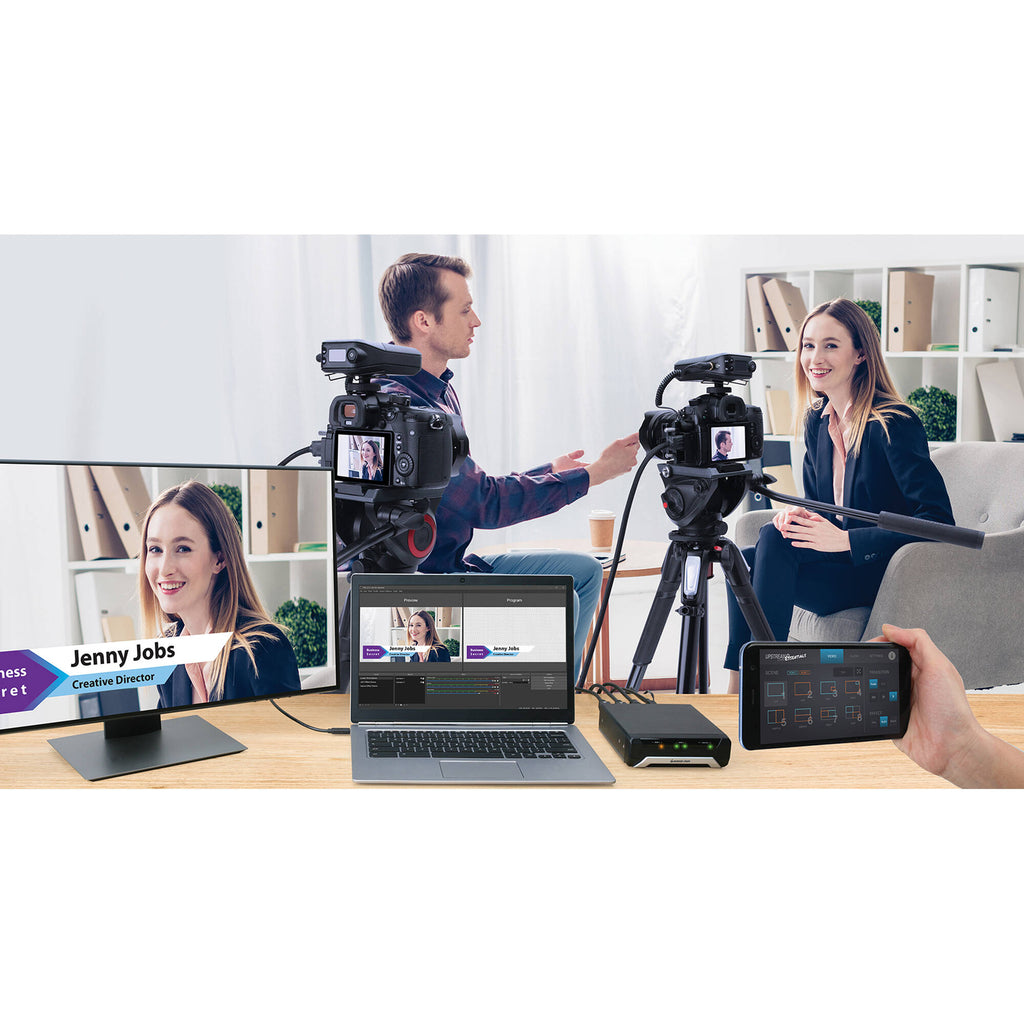

The UpStream Pro Dual Video Capture Adapter from IOGEAR provides a comprehensive but simple switching solution for various types of live productions. It accepts up to two UHD 4K60 HDMI input sources and features an HDMI program output. It allows you to connect either a computer or an Android mobile device to stream your program in up to 1080p60. With a computer connected, you can stream from popular platforms such as OBS. If you connect a smartphone or tablet, streaming can be done from any optional UVC-compatible mobile streaming app, such as the CameraFi Live app. USB cables are included for connecting either your laptop/desktop or mobile device to the USB Type-B port on the UpStream Pro Dual.

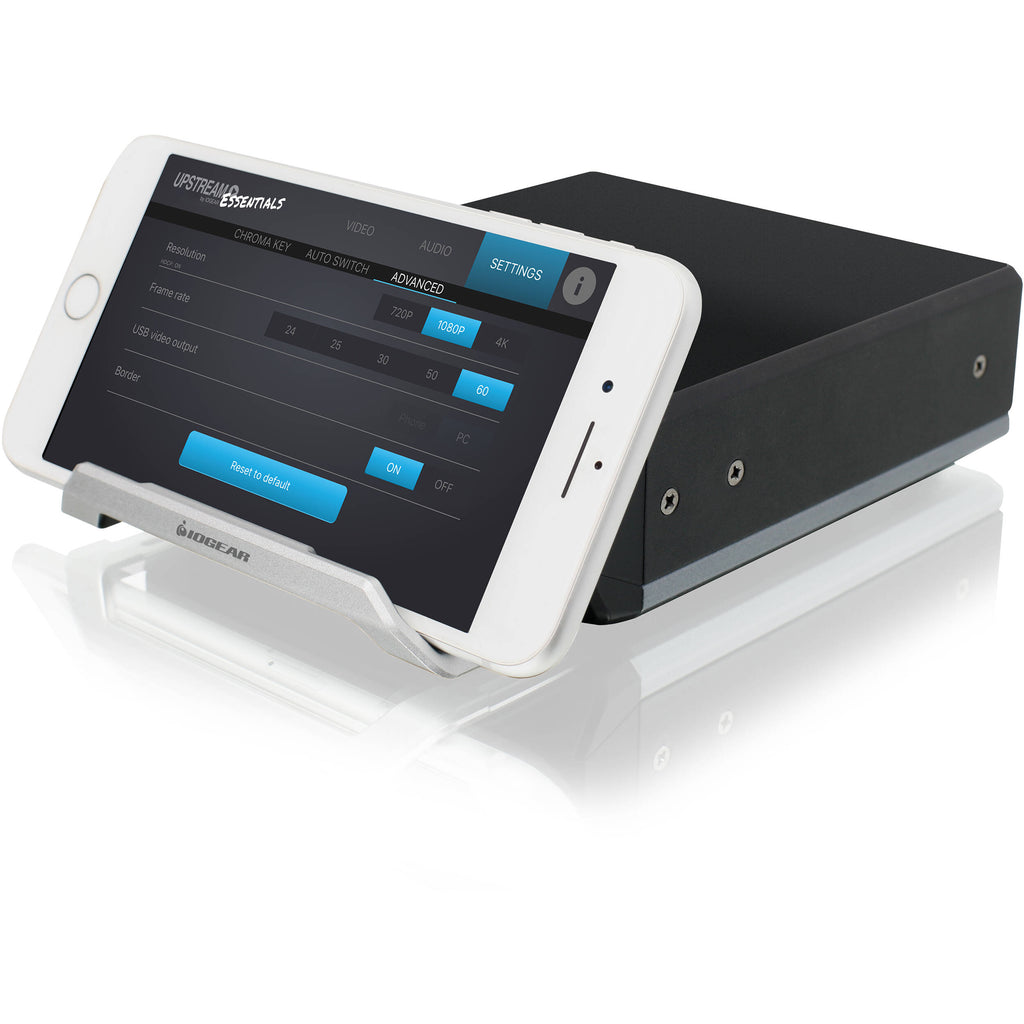

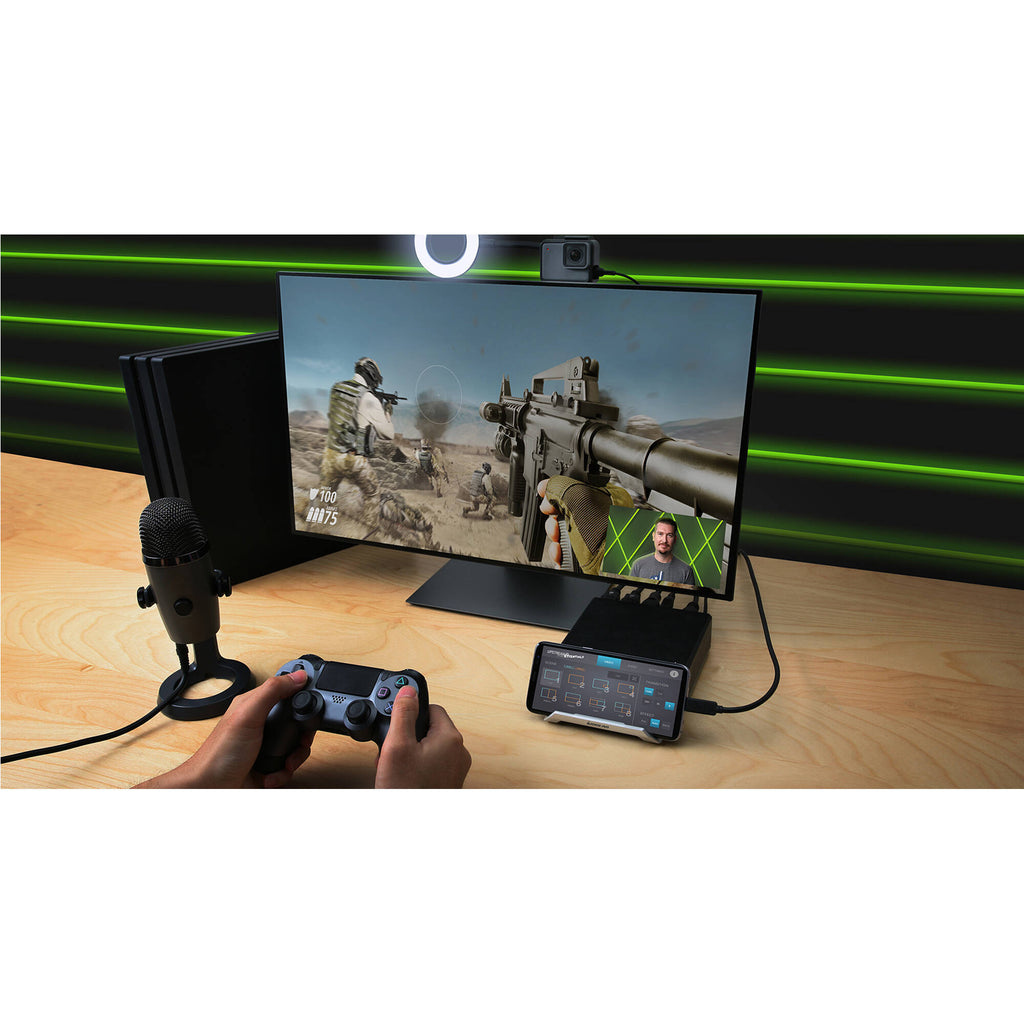

Included with the UpStream Pro Dual is the iOS/Android UpStream Essentials live production app. Working over Bluetooth, this app allows you to wirelessly switch between your two sources, select preset scenes, apply picture-in-picture effects, manage audio, and much more. You can also create hotkey buttons to control OBS and other streaming applications. When using this app, you no longer need to perform all these functions in your streaming platform. The streaming platform in this case can be used just for streaming. A phone tray on the front of the UpStream Pro Dual allows you to set your smartphone/tablet there so you can comfortably reach over and switch scenes and perform other functions in the UpStream Essentials app. This capability is especially useful in single-person operations, such as when you're streaming your gameplay.

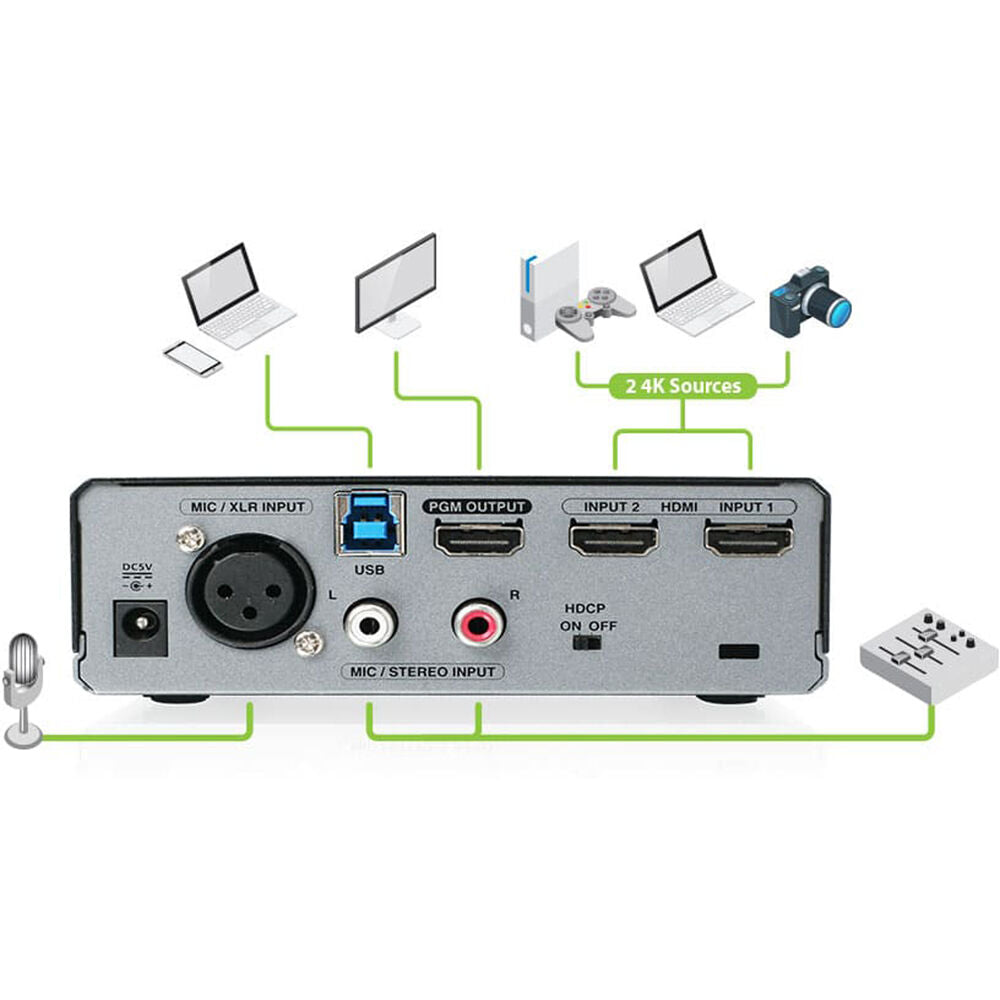

Offering XLR and RCA audio inputs, the UpStream Pro Dual also allows you to connect an audio mixer and a microphone. The UpStream Pro Dual can be set on your desktop, or you can integrate it into your camera setup using an included mounting adapter. The small adapter secures onto the bottom of the device with included screws and provides a 1/4"-20 threaded mounting hole. The UpStream Pro Dual is powered using an included power adapter and supports 100 to 240V worldwide power input.
Dual 4K HDMI Input, 1080p UVC Output
Stream via Laptop or Android Device
UpStream Essentials iOS/Android App
In the Box
- IOGEAR UpStream Pro Dual Video Capture Adapter
- Power Adapter
- USB Type-B to Type-A Cable
- USB Type-B to Type-C Cable
- Camera Mount Adapter with 1/4"-20 Thread
- Set of Screws for Camera Mount Adapter
- Limited 2-Year Warranty
- Description
- Dual 4K HDMI Input, 1080p UVC Output
- Stream via Laptop or Android Device
- UpStream Essentials iOS/Android App
IOGEAR UpStream Pro Specs

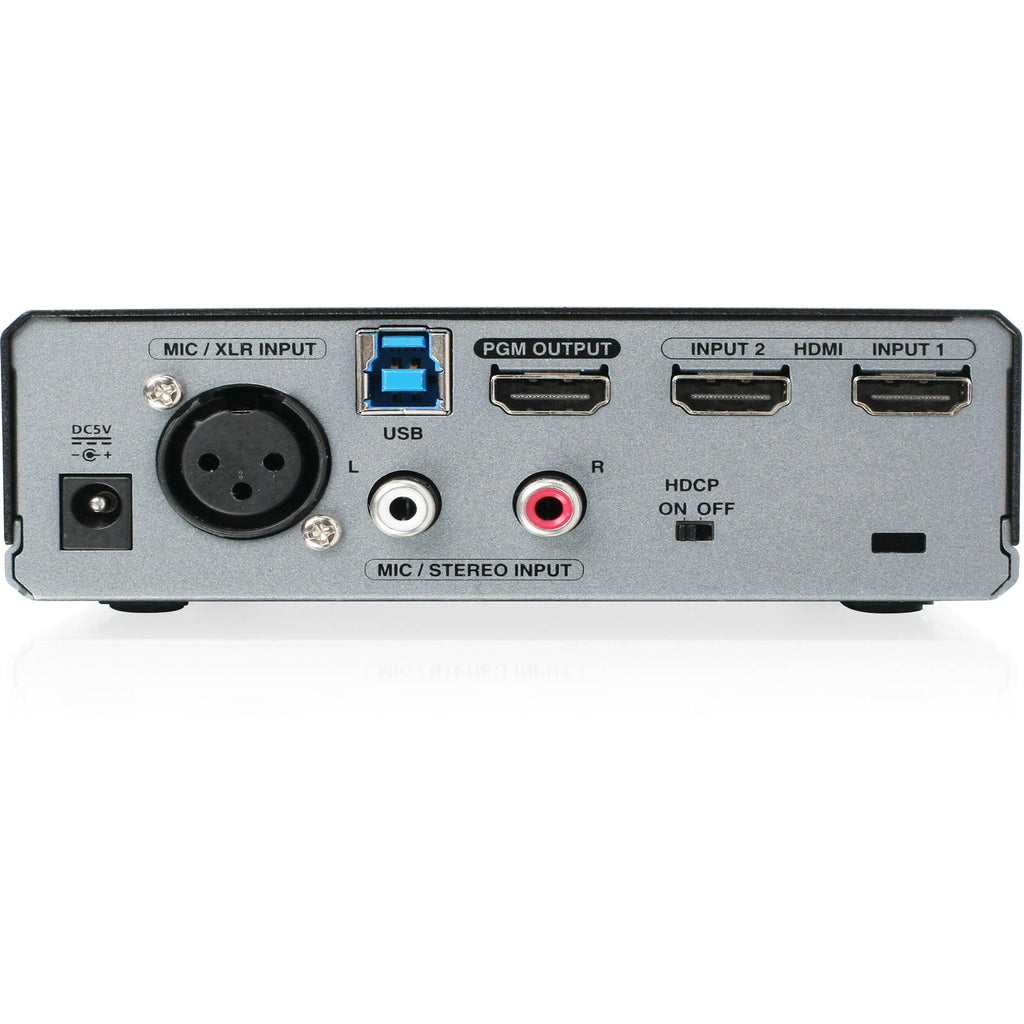

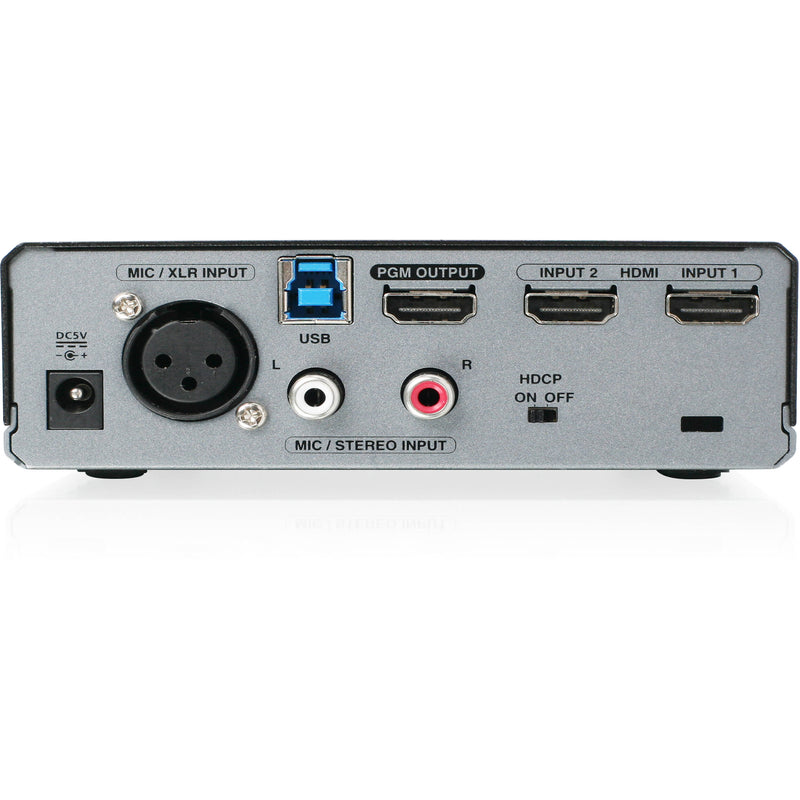

| Video Input Connectors | 2 x HDMI (HDMI 1.4b) |
| Input Video Format | HDMI UHD 4K: 24/25/30 fps 1080p: 24/25/30/50/60 fps 720p: 50/60 fps |
| Audio Input Connectors | 1 x 3-Pin XLR Analog 1 x 2RCA Stereo Analog |
| Input Audio Format | Analog: 44.1 kHz / 16-Bit Analog: 48 kHz / 16-Bit |
| Embedded Audio Input | HDMI |
| Video Output Connectors | 1 x HDMI (HDMI 1.4b) (Program) 1 x USB Type-B |
| Output Video Format |
HDMI UHD 4K: 24/25/30 fps 1080p: 24/25/30/50/60 fps 720p: 50/60 fps USB Type-B 1080p: 60 fps 720p: 60 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | HDMI |
| Expansion Slots | None |
| Power Connector | 1 x Barrel Input |
| Power Consumption | 100 to 240 VAC |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 80% |
| Dimensions | 6 x 5.1 x 1.67" / 15.2 x 13 x 4.25 cm |
| Weight | 1.5 lb / 0.68 kg |
| Warranty Length | Limited 2-Year Warranty |
| Package Weight | 3.44 lb |
| Box Dimensions (LxWxH) | 10.7 x 8.9 x 3.9" |
