Z CAM IPMAN Gemini Overview
Leverage the power of your Android device for monitoring and camera control of select cameras, or convert your camera's HDMI output to USB for easy ingestion into your Mac or Windows computer with the IPMAN Gemini HDMI to USB converter from Z CAM. Not just a basic HDMI to USB video converter, the IPMAN Gemini supports HDMI signals up to 4K30, as well as 1080p60 and 720p60, converting them to 1080p30 for output over a USB Type-C port. Connect the converter's output to your computer, which recognizes the device as a USB camera, for plug-and-play connectivity with no drivers to install on macOS or Windows.

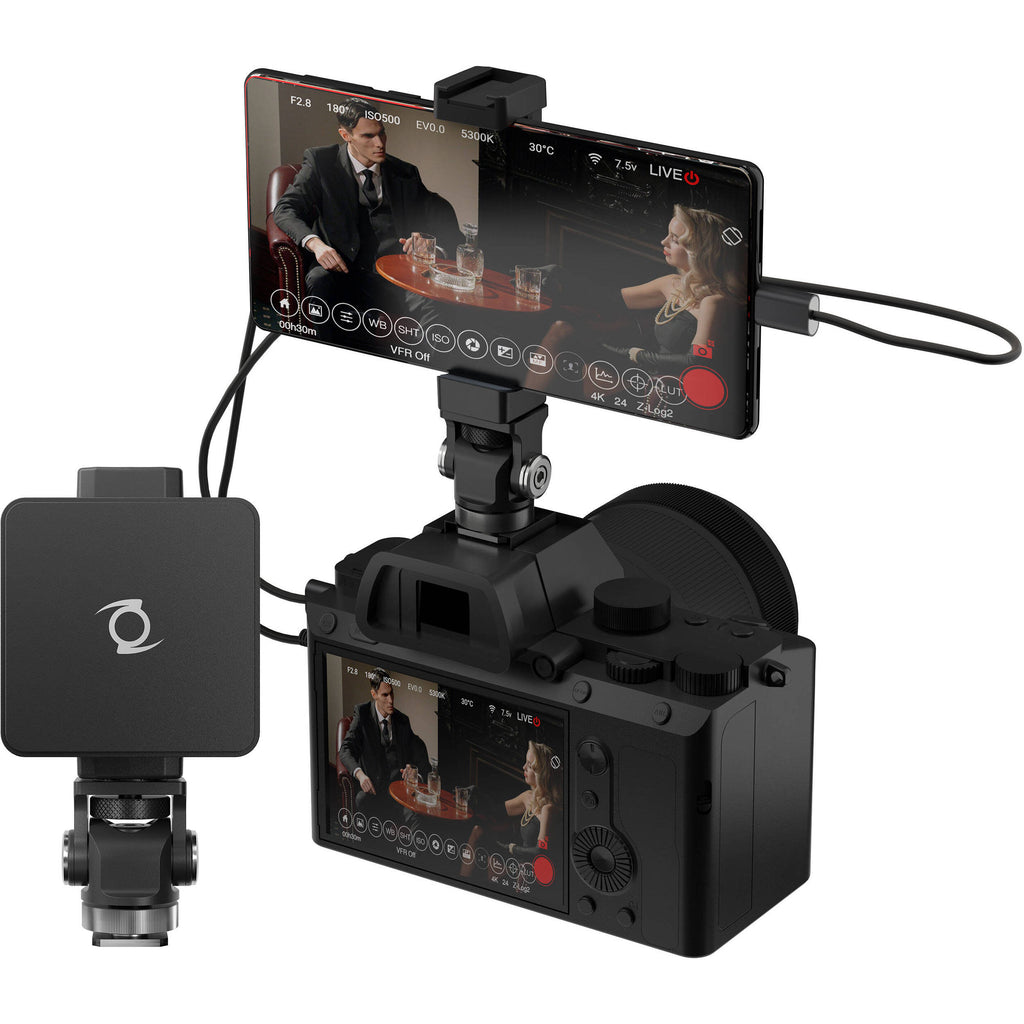

Connect the converter's USB Type-C output to an Android device to use it as a multifunction monitor including display of video and control of camera functions when connected to your camera (requires an optional cable). Output to an Android device and you can power the converter from the Android device, or use PD 3.0 charging to recharge your connected Android device. The included camera mount and smartphone holder enable attaching a smartphone to your camera's cold shoe.
Note:
Camera control via USB requires you to use a camera that supports camera USB with PTP.
USB Camera
The IPMAN Gemini is recognized as a USB camera by Windows and macOS computers without needing to install drivers on your computer to make it work.
Android Functionality
When connected to an Android device, the IPMAN Gemini is capable of the following:
- Use the Android mobile device as a high-quality monitor display with professional features such as false color, grid line display, and magnifier feature for focus pulling.
- Leverage your Android device's wireless connection to stream the HDMI video feed to other devices.
- The HDMI video feed can be recorded on an Android mobile device.
- Camera control such as record trigger, ISO, aperture, and EV adjustments is possible on select cameras when the IPMAN Gemini is connected to your camera's USB control port and an Android device; optional cables are required.
- Only the Z CAM E2 series cameras, as well as the Panasonic GH5s and Sony Alpha series cameras, support camera control through the IPMAN Gemini at the time of its release.
![]()
UPC: 841687103024
In the Box
- Z CAM IPMAN Gemini
- Smartphone Holder
- Monitor Mount
- USB Type-C Cable
- Limited 1-Year Warranty
Z CAM IPMAN Gemini Specs
| Host Connection |
USB Type-C (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0) |
Input

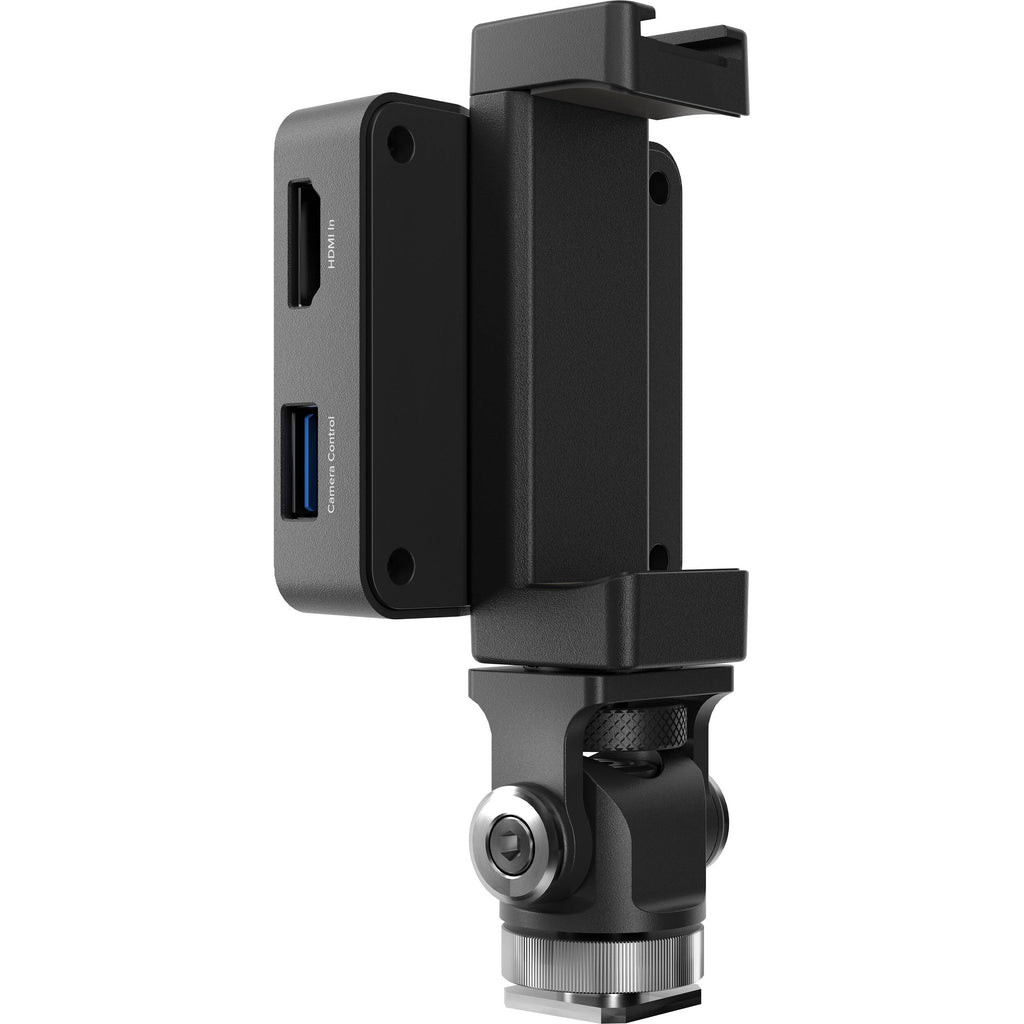

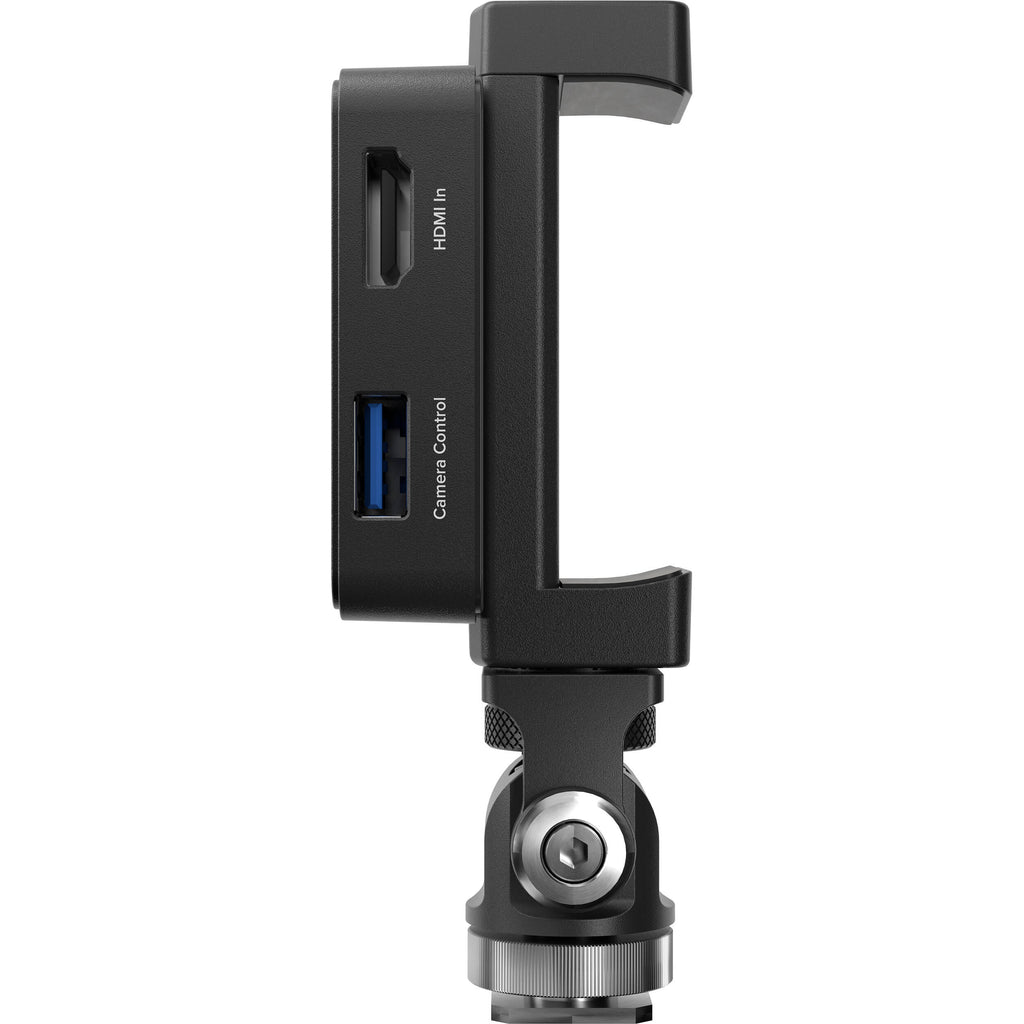

| Video Input Connectors |
1 x HDMI |
| Input Video Format |
HDMI
UHD 4K: 30 fps
1080p: 60 fps
720p: 60 fps |
| Audio Input Connectors |
None |
| Embedded Audio Input |
HDMI |
Output
| Video Output Connectors |
1 x USB Type-C |
| Output Video Format |
USB Type-C
1080p: 30 fps |
| Embedded Audio Output |
USB Type-C |
Connectivity
| Other I/O |
1 x USB Type-A Control |
Hardware
| OS Compatibility |
Android
Windows
macOS |

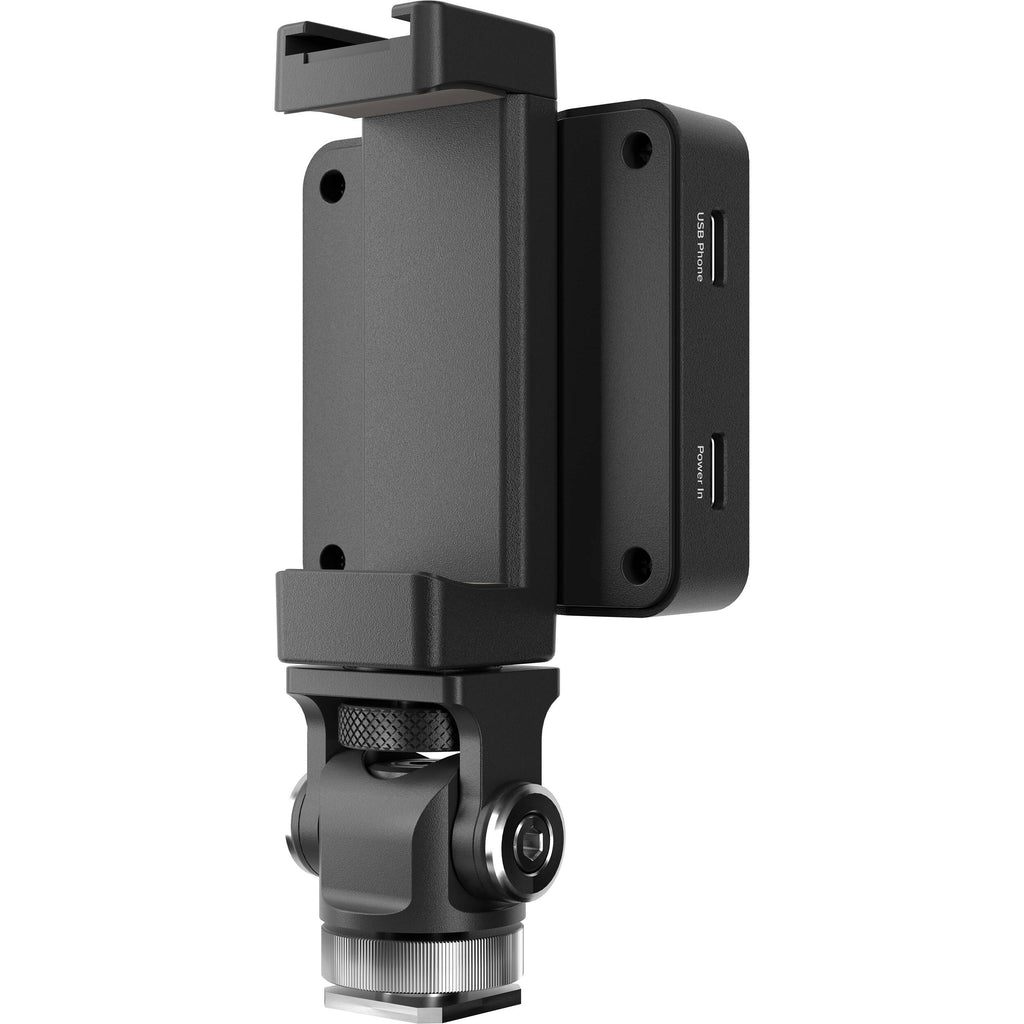

| Power Connector |
1 x USB Type-C (9 VDC) Input |
General
| Dimensions |
2.4 x 2.4 x 0.6" / 60 x 60 x 16 mm |
| Weight |
1.2 oz / 33.8 g |
Packaging Info
| Package Weight |
0.615 lb |
| Box Dimensions (LxWxH) |
5.4 x 5 x 2.4" |
