Description

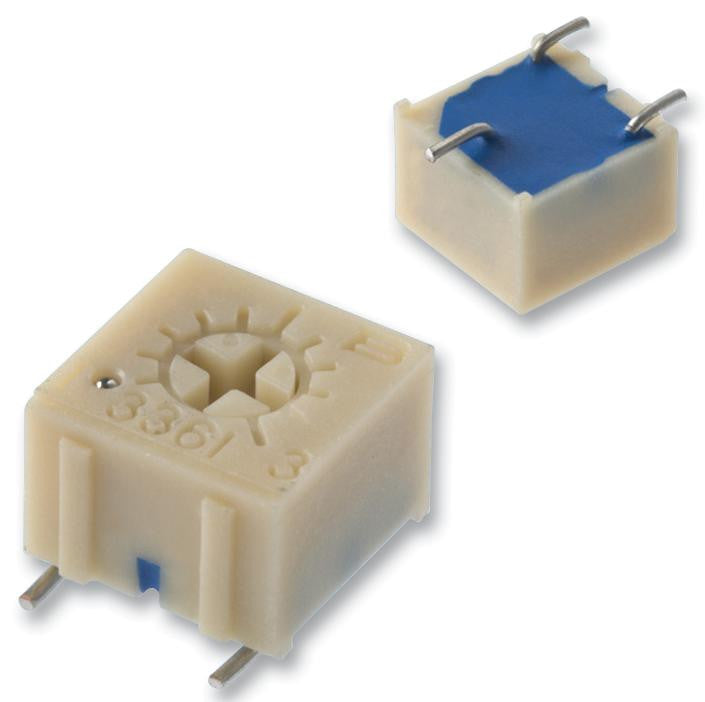

The 3361P-1-102GLF is a 1kR 500mW 1/4-inch square SMD Trimming Potentiometer with 100% tin-plated solderable pin terminals. The Trimpot® potentiometer features infinite resolution, 240° nominal adjustment angle, withstands harsh environments and immersion cleaning processes.
- UL94V-0 Flammability rating
- 200-cycle Rotational life
- -55 to 125°C Temperature range
Applications
Industrial, Commercial
Product details
| Resistance Tolerance | ± 10% |
| Product Range | Trimpot 3361 Series |
| Automotive Qualification Standard | - |
| Temperature Coefficient | ± 100ppm/°C |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Surface Mount Device |
| Power Rating | 500mW |
| Track Resistance | 1kohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3361P-1-102GLF |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
