Description

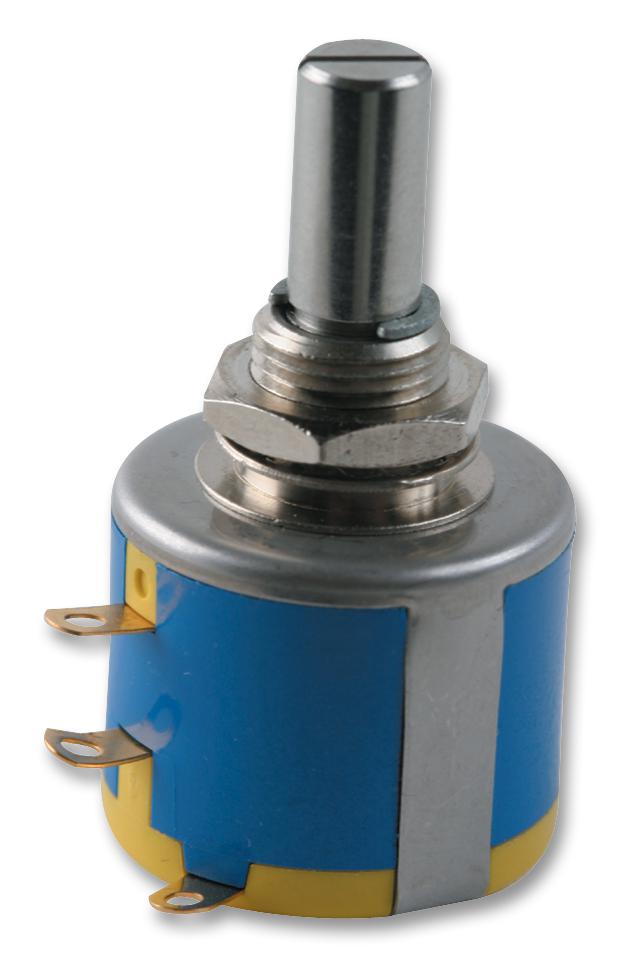

The Vishay 534 series are panel mount wirewound precision potentiometers. These potentiometers are multi-turn, dual gang configuration and concentric shaft potentiometers.
- 7/8" round potentiometer
- Rear shaft extensions and support bearing
- Bushing and servo mount designs available
- Metric shaft available
- Resistance value ranges from 100 ohm to 100kohm
- Standard tolerance is ±5%
- Power rating is 2W
- Temperature coefficient is 20ppm/°C
- Number of turns is 10 and high torque
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Track Resistance: 50kohm |
| No. of Turns: 10Turns |
| Track Taper: Linear |
| Power Rating: 2W |
| Resistance Tolerance: ± 5% |
| Product Range: 534 |
| Potentiometer Mounting: Panel Mount |
| Shaft Diameter: 6mm |
| No. of Gangs: 1 |
| Adjustment Type: Screwdriver Slot |
| Shaft Length: 20.62mm |
| Temperature Coefficient: ± 20ppm/°C |
| Potentiometer Type: - |
| Resistor Technology: Wirewound |
| Potentiometer Terminals: Solder Lug |
| Resistor Case / Package: - |
| Product Length: 39.67mm |
| Product Width: - |
| Product Height: - |
| Operating Temperature Min: -55°C |
| Operating Temperature Max: 125°C |
Other details
| Brand | VISHAY |
| Part Number | 534B1503JC8872 |
| Quantity | Each |
| Technical Data Sheet EN |  |
