Description

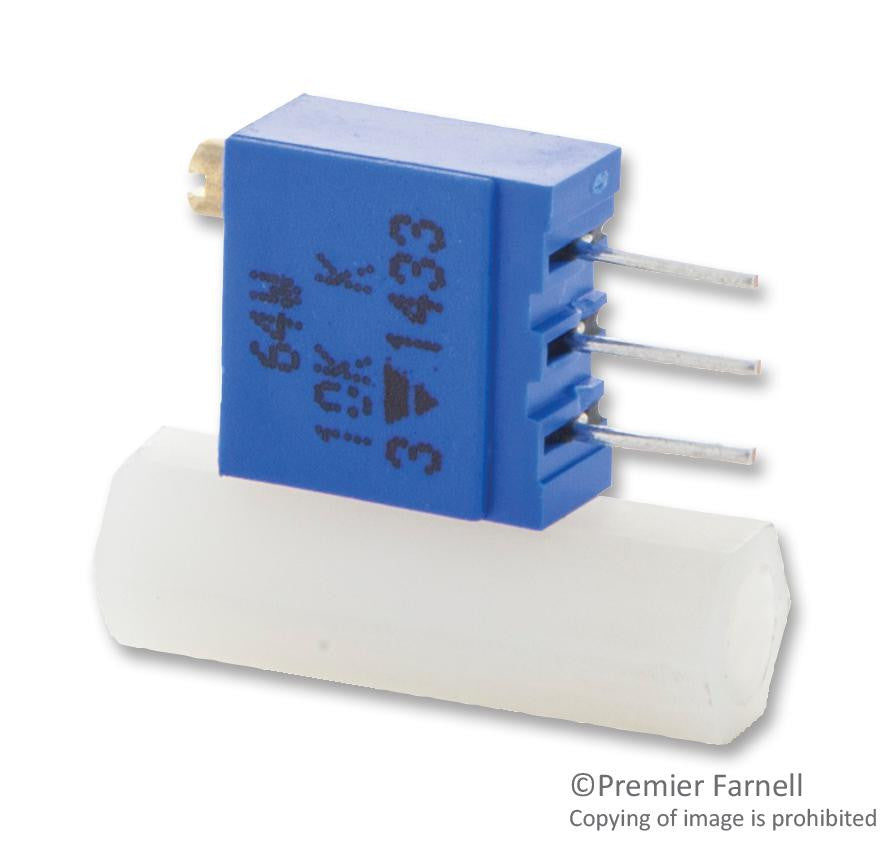

The M64W103KB40 is a 3/8-inch Square Trimpot® Multiple Turn Cermet Trimmer with excellent operational stability is provided by the use of a cermet element. Power rating of 0.5W and temperature coefficient of ±100ppm/°C. The Model 64 is a small size trimmer 3/8 x 3/8 x 3/16-inch answering PC board mounting requirements. Five versions are available which differ by the position of the control screw in relation to the PC board plane and by the spacing of the terminals.
- Industrial grade
- 21 turns ±2 Electrical travel
- 23 turns ±5 Mechanical travel
- 1000V Dielectric withstanding voltage
- 1000MR Insulation resistance
- Temperature coefficient is ±100ppm/°C
- Operating temperature range -55°C to +155°C
- Power Rating is 0.5W
- Contact resistance variation < 1% typical
- Tests according to CECC 41000 or IEC 60393-1 standards
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | ± 100ppm/°C |
| Power Rating | 500mW |
| No. of Turns | 21Turns |
| Potentiometer Mounting | Through Hole |
| Automotive Qualification Standard | - |
| Resistance Tolerance | ± 10% |
| Product Range | 64W Series |
| Track Resistance | 10kohm |
| MSL | - |
Other details
| Brand | VISHAY |
| Part Number | M64W103KB40 |
| Quantity | Each |
| Technical Data Sheet EN |  |
