Description
- Cable Specifically for DMX
- 3-Pin XLR (Male and Female)
- 3' Length for Short Runs

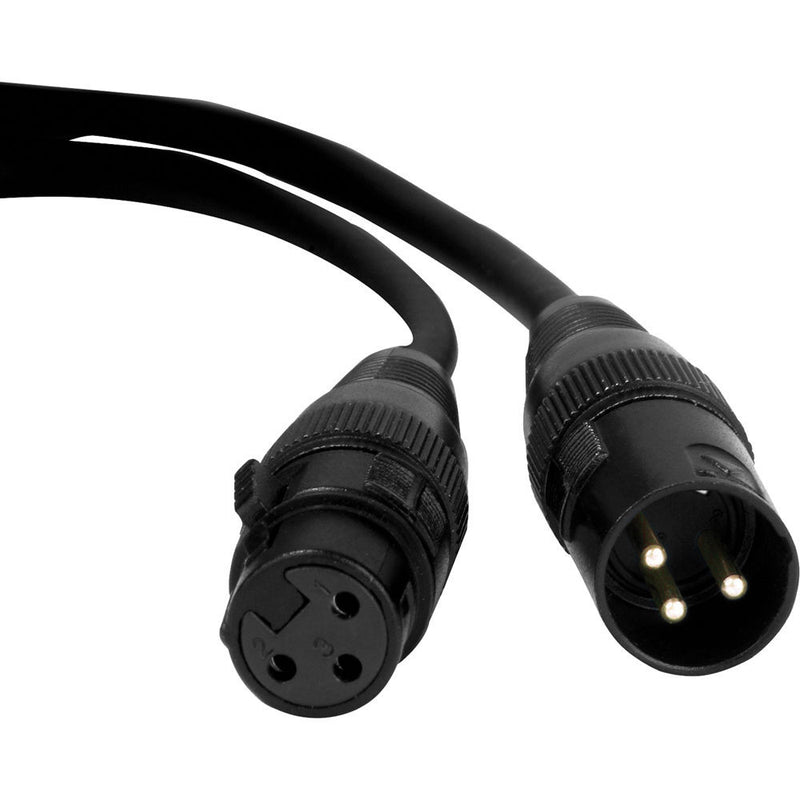

The AC3PDMX ACCU-Cable 3' Long 3-Pin DMX Cable from American DJ is useful for short DMX runs when daisy chaining units together. It uses 3-pin XLR connectors, which should not be confused with standard audio cables, and is designed for permanent installations where the cables will not be repeatedly patched and repatched as happens on a set or location shoot.
UPC: 819730017703
| Connectors | 1 x 3-pin XLR (male) 1 x 3-pin XLR (female) |
| Gauge | 22 AWG |
| Conductor | Number of Pairs: 1 Number of Conductors: 2 Material: TC-tinned copper Diameter: 0.354" / 8.992 mm Inner Jacket Material: PE Polyethylene Inner Jacket Diameter: 0.55" / 13.97 mm Insulation: PE Polyethylene Pair Color Code: Black/White Souter Shield Type: Tape/Braid Outer Jacket Material: PVC Overal Nominal Diameter: 0.23" / 0.58 cm |
| Cable Lay | Length: 2.5" / 63.5 mm Direction: Left hand lay Twists: 4.8 per foot |
| Direction | Left hand lay |
| Operating Temperature | -22 to 167°F / -30 to 75°C |
| Minimum Bend Radius | 3.2" / 8.1 cm |
| Maximum Pull Tension | 72.0 lb / 32.7 kg |
| Electrical Characteristics | Nominal Characteristic Impedence: 110 Ohms Nominal Capacitance Conductor to Conductor @ 1 KHz: 12.8 pF/ft Nominal Cap Cond. To Other Cond. & Shield @ 1 KHz: 23 pF/ft Nominal Velocity of Propagation: 66% Nominal Delay: 1.6 Nanoseconds per foot Nominal Conductor DC Resistance @ 68°F / 20°C: 24 Ohms/1000 ft Nominal Outer Shield DC Resistance @ 68°F / 20°C: 3.4 Ohms/ 1000 ft Nominal Attenuation: 0.6 dB/100 ft @ 1 MHz Maximum Recommended Current: 2.1 Amps per conductor @ 77°F / 25°C |
| Length | 3.0' / 0.9 m |
| Packaging Info | |
|---|---|
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 7.7 x 3.8 x 0.6" |
In the Box
American DJ AC3PDMX ACCU-Cable 3' Long 3-Pin DMX Cable
- Limited Lifetime Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1631.7 |
| 3-5 | ₹ 1615.05 |
| 5-10 | ₹ 1581.75 |
| 10+ | ₹ 1548.45 |
Bulk discount will be automatically applied during checkout based on quantity.
