Description

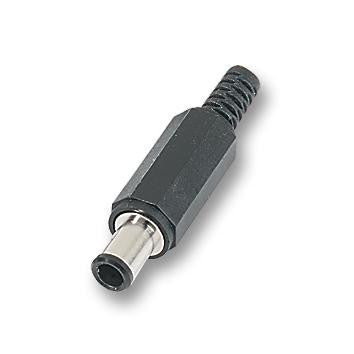

The 1636 05 from Lumberg is a straight version power supply plug according to JEITA RC-5320A JSBP5 standard with solder terminals and bend protection.
- Outer diameter is 6.5mm
- Inner diameter is 4.3mm
- Centre diameter pin is 1.4mm
- Nominal power of 2A
- Nominal voltage is 18VDC
- Mating with 1613 11, 1614 05 power supply sockets
- Temperature range from -20�C to 70�C
Applications
Power Management, Industrial
Product details
| Barrel Outer Diameter | 6.5mm |
| Connector Mounting | Cable Mount |
| Voltage Rating | 18V |
| Contact Termination Type | Solder |
| Barrel Inner Diameter | 4.3mm |
| Product Range | - |
| Current Rating | 2A |
| Pin Diameter | 1.4mm |
| Gender | Plug |
| Barrel Length | 9.5mm |
Other details
| Brand | LUMBERG |
| Part Number | 1636 05 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
